EXHAUST SYSTEMS
EXPERIMENTAL AIRCRAFT

NONE OF THESE PRODUCTS ARE CERTIFIED FOR USE ON CERTIFICATED AIRCRAFT

Please read Terms and Conditions

PRE-MANUFACTURED SYSTEMS

321 STAINLESS STEEL

PLEASE CHECK CROSS REFERENCE CHART FOR CORRECT ENGINE APPLICATION

A $5.00 CA Hazardous waste fee will be added to each invoice

www.customaircraft.com

P/N

DESCRIPTION


CROSS REF.

DRAWING

PRICE

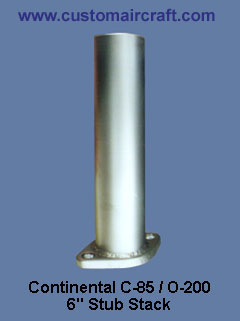

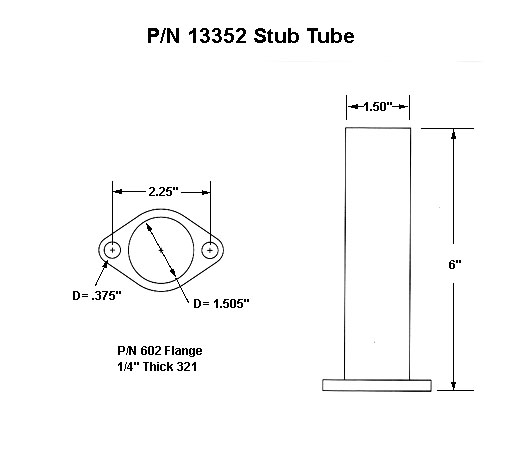

13352
Stub Stack Continental C-85 / 0-200 6"


REF.

DWG.

69.50

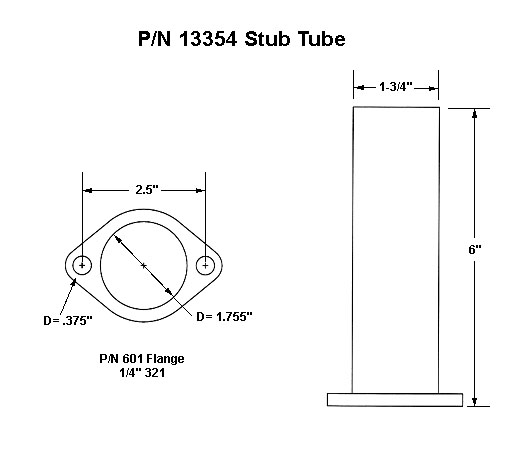

13354
Stub Stack Lycoming 0-235 / IO-540 6"


REF.

DWG.

73.50

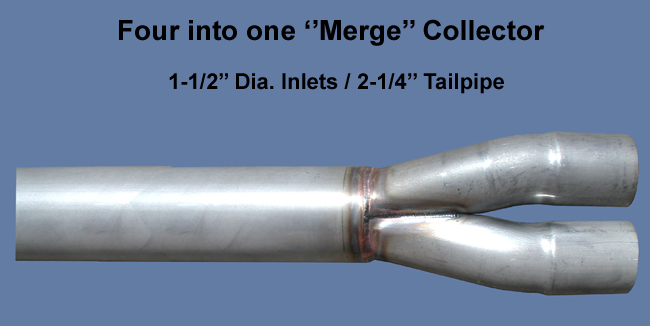

1400
4 into 1 ''Merge'' Collector 1-1/2'' Diameter inlets with either 2'' OR 2-1/2'' Diameter Tailpipe OR Ball Joint (Please specify)



375.00

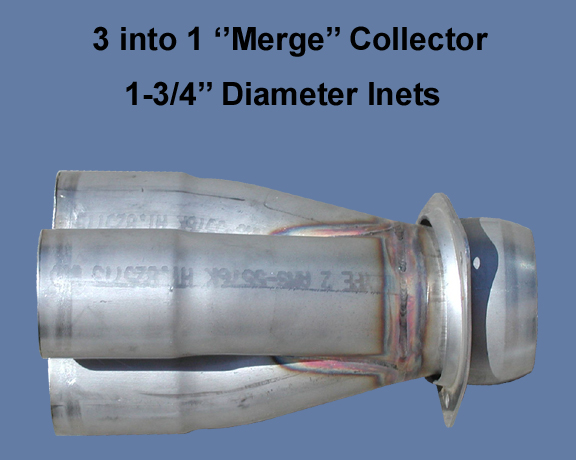

1500
3 into 1 ''Merge'' Collector 1-3/4'' Diameter inlets with either 2-1/2'' OR 3'' Diameter Tailpipe OR Ball Joint (Please specify)



325.00

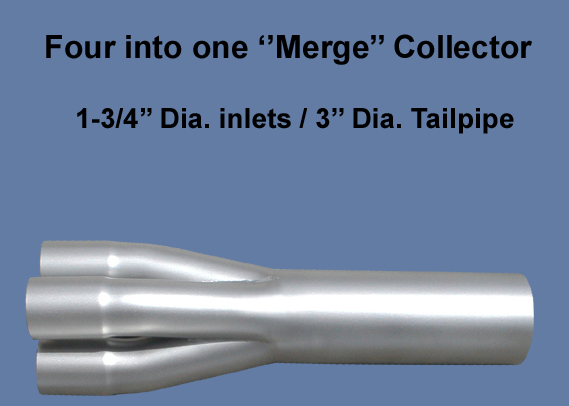

1600
4 into 1 ''Merge'' Collector 1-3/4'' Diameter inlets with either 2-1/2'' OR 3'' Diameter Tailpipe OR Ball Joint (Please specify)



395.00

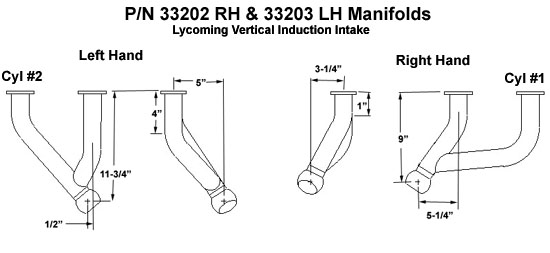

33202 / 33203
Exhaust Manifold LH & R/H Y-Style Lycoming 0-233 / 0-360 (Vertical Induction Intake) (Shown with optional Tailpipe's)


REF.

DWG.

825.00

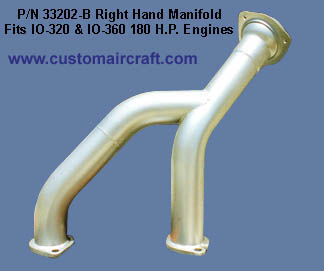

33202-B
Exhaust Manifold R/H Y-Style Lycoming IO-320 B,C series (Horizontal Induction Intake)


REF.

DWG.

440.00
33203-B
Exhaust Manifold L/H Y-Style Lycoming IO-320 B,C series (Horizontal Induction Intake)


REF.

DWG.

440.00

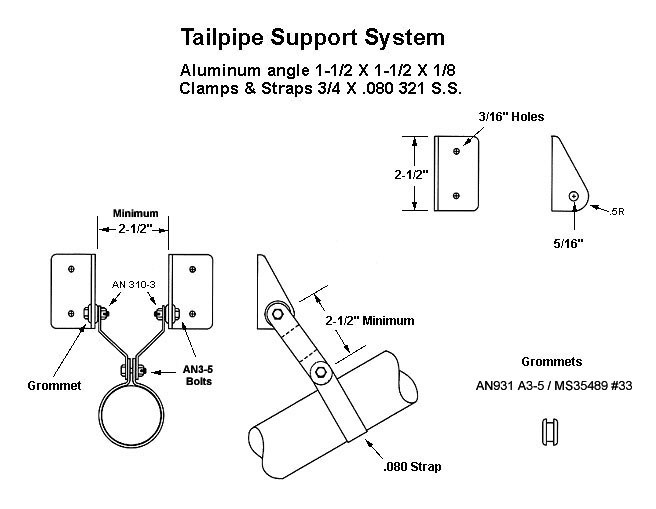

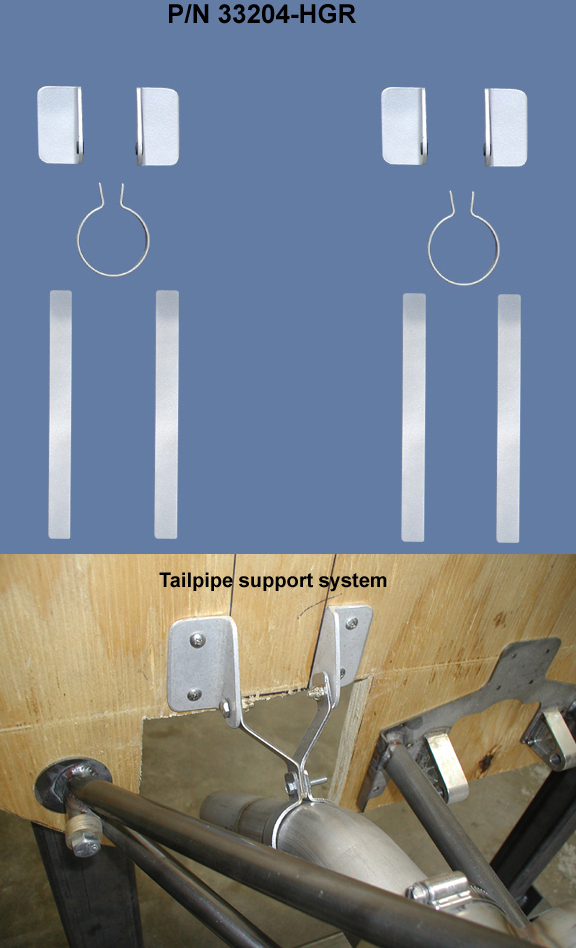

33204-HGR Tailpipe Support system Includes Aluminum brackets, grommets, clamps, raw material for links for two tailpipes (Specify Tailpipe Diameter)




DWG.

195.00

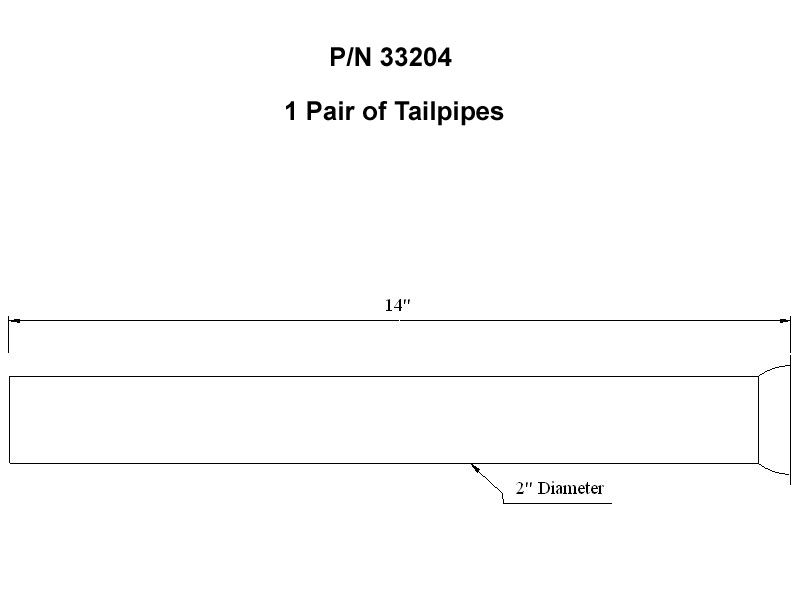

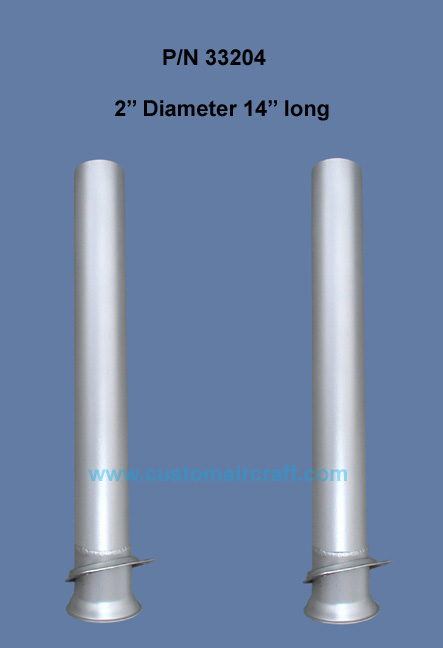

33204
Tailpipes (2 Ea.) 14" long 2" diameter




DWG.

220.00

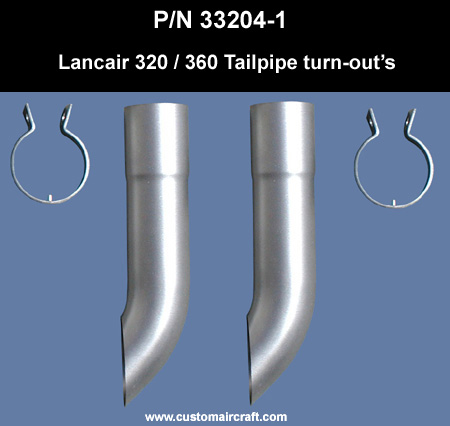

33204-1 Lancair 320 / 360 Tailpipe Turn-outs (Fits over original 1-3/4" Tailpipes Supplied with pin clamps)




DWG.

250.00

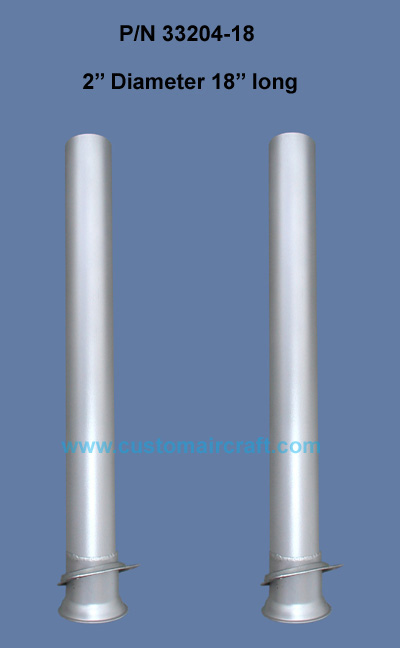

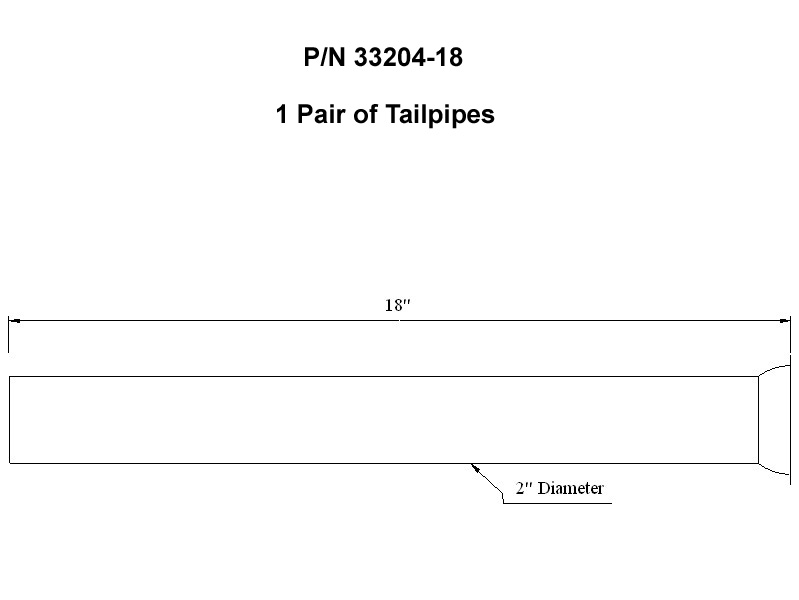

33204-18 Tailpipes (2 Ea.) 18" long 2" diameter




DWG.

231.50

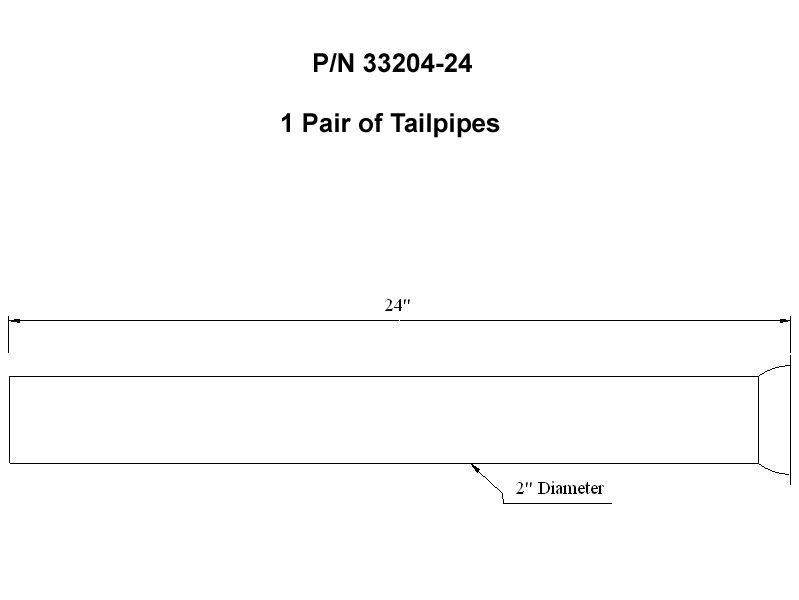

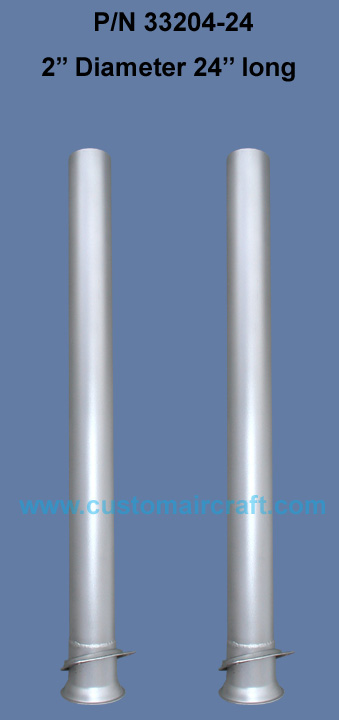

33204-24
Tailpipes (2 Ea.) 24" long 2" diameter




DWG.

248.00

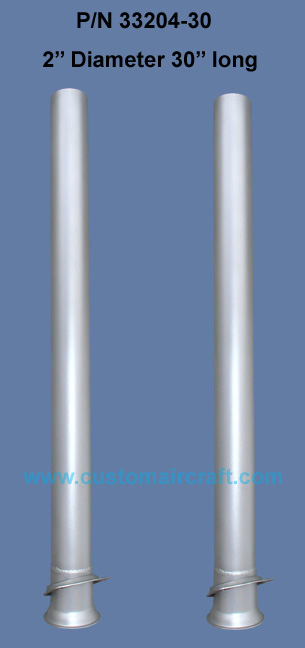

33204-30
Tailpipes (2 Ea.) 30" long 2" diameter




DWG.

265.00

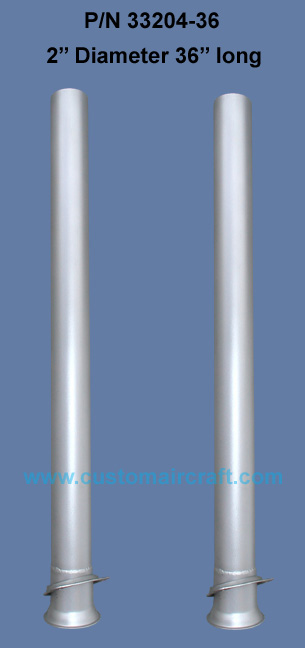

33204-36
Tailpipes (2 Ea.) 36" long 2" diameter




DWG.

285.00
33204-45B Tailpipes (2 Ea.) with 45 Degree Bend 2'' Diameter

345.00

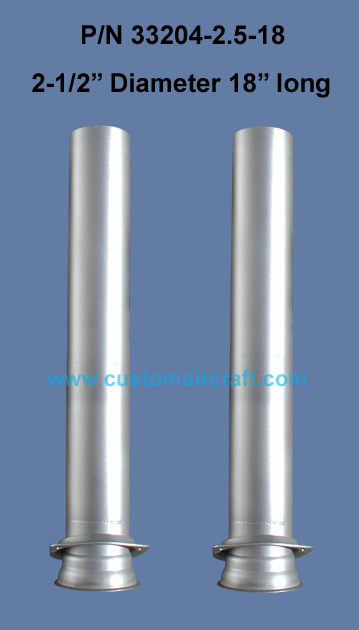

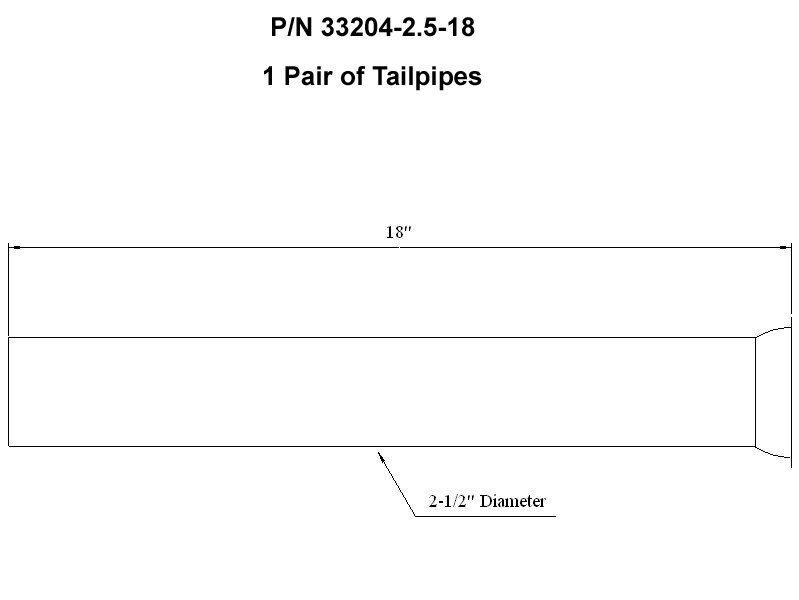

33204-2.5-18
Tailpipes (2 Ea.) 18" long 2 1/2" diameter




 DWG.

275.00

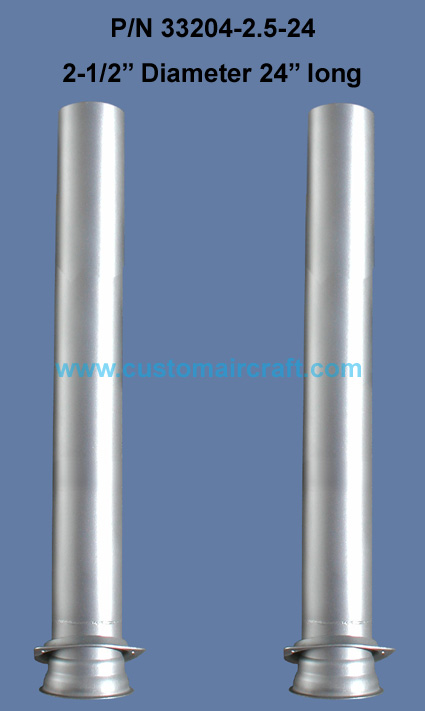

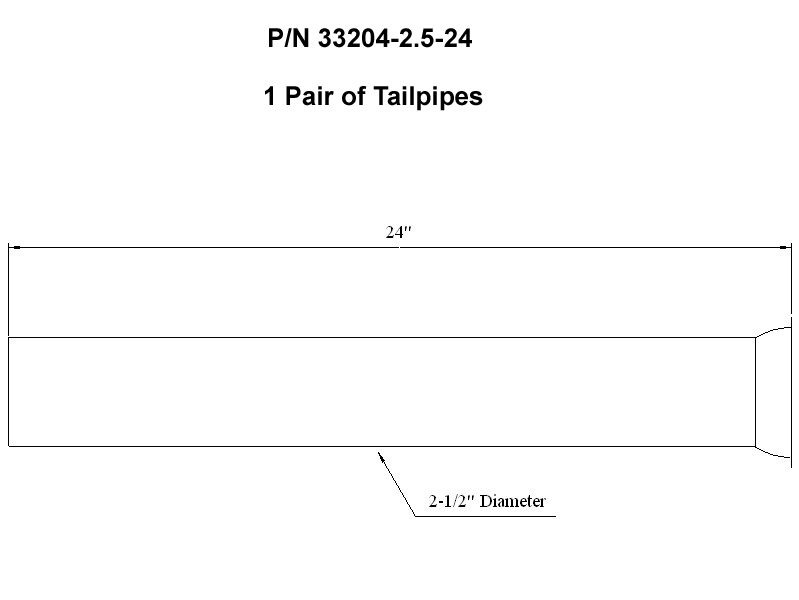

33204-2.5-24
Tailpipes (2 Ea.) 24" long 2 1/2" diameter




 DWG.

305.00

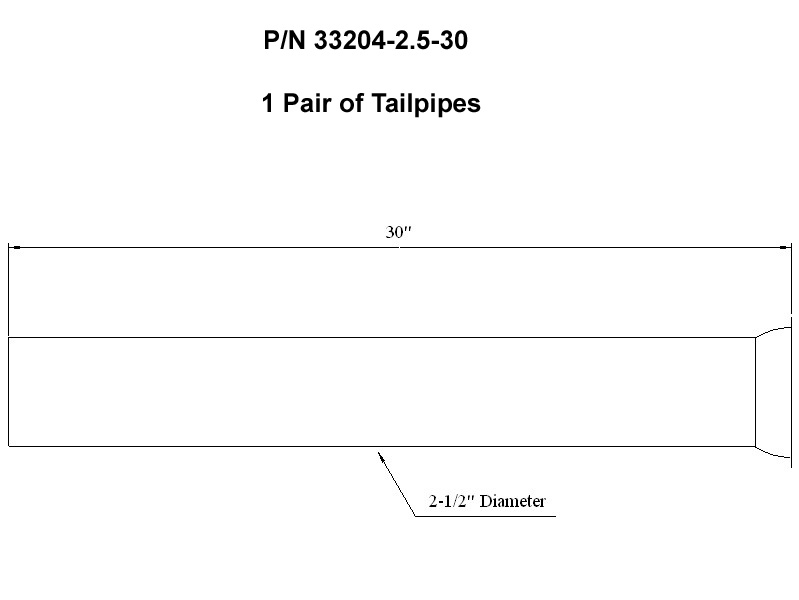

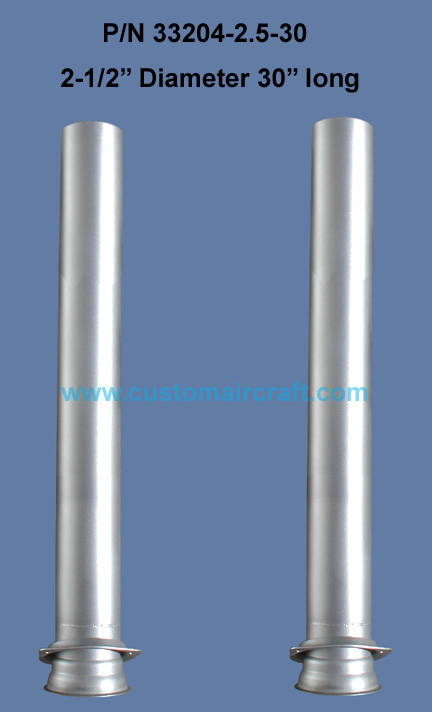

33204-2.5-30
Tailpipes (2 Ea.) 30" long 2 1/2" diameter




 DWG.

335.00

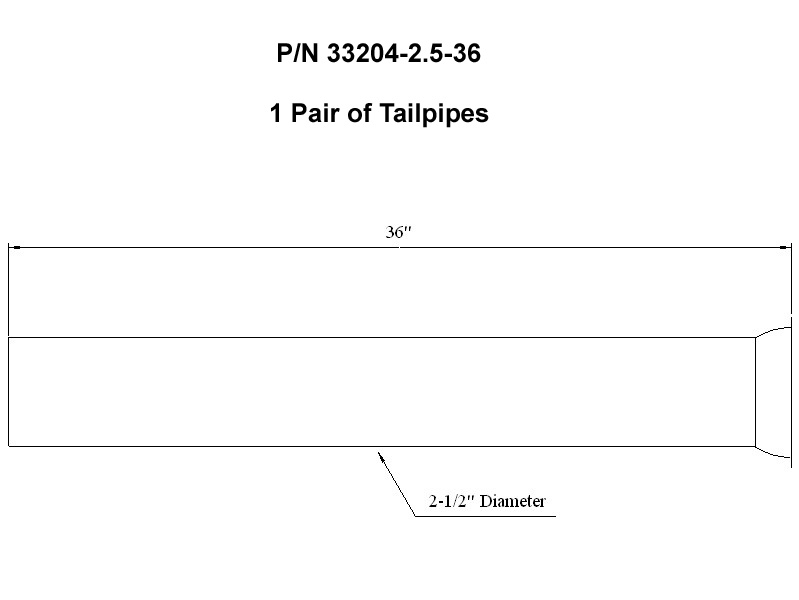

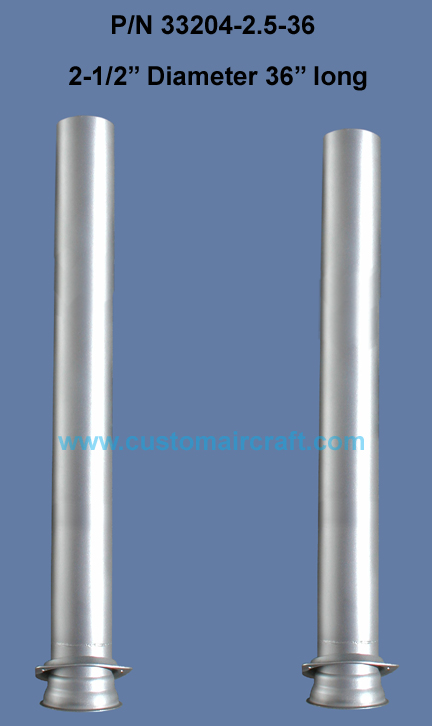

33204-2.5-36
Tailpipes (2 Ea.) 36" long 2 1/2" diameter




 DWG.

265.00

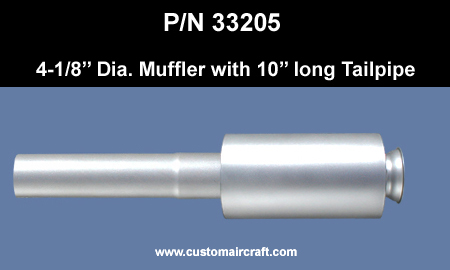

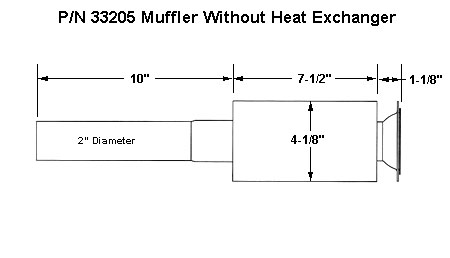

33205
Muffler 4-1/8'' Diameter with 10" long tailpipe




DWG.

365.00

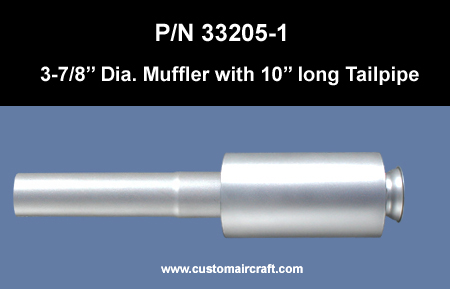

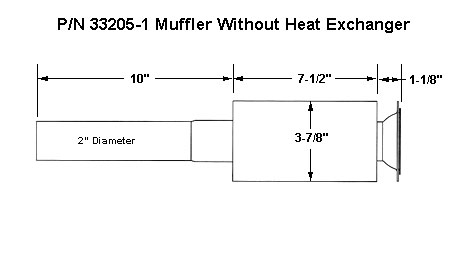

33205-1
Muffler 3-7/8'' Diameter with 10" long tailpipe




DWG.

 250.00

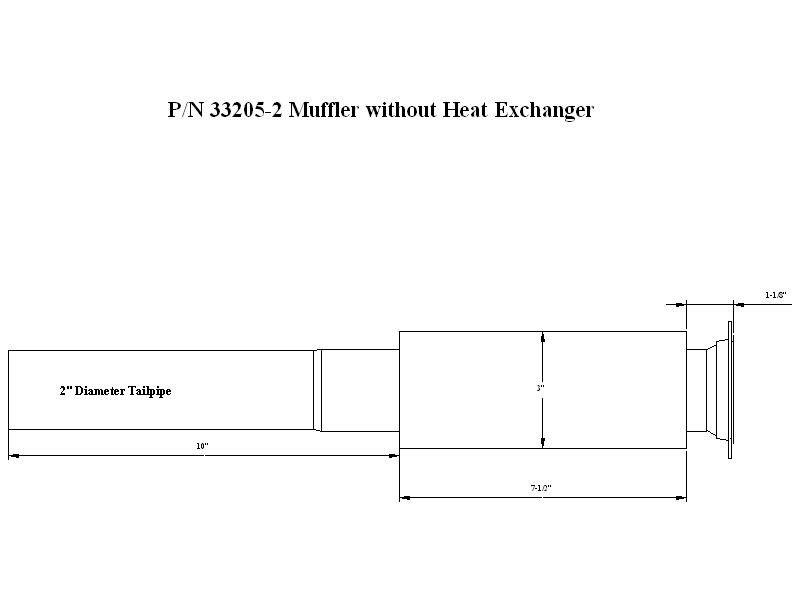

33205-2
Muffler 3'' Diameter with 10'' long tailpipe




DWG.

250.00

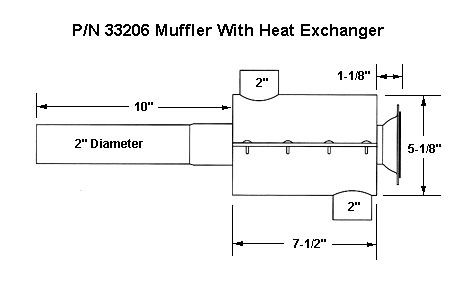

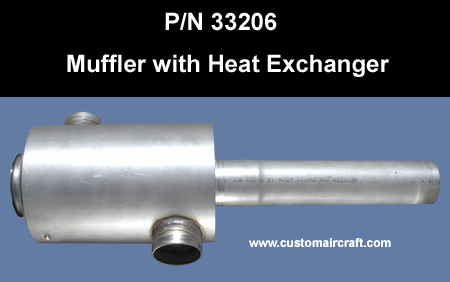

33206
Muffler 5-1/8'' Diameter with Heat Exchanger & 10" long tailpipe (Inlet & Outlet are 2'' Dia. Clocking can be In line / 90 Deg / 180 Deg. Please specify) (Optional Studding to improve cabin heat Add $95.00)




DWG.

415.00

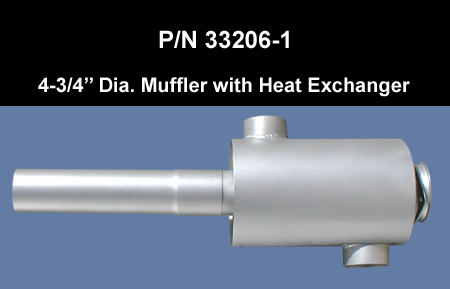

33206-1
Muffler 4-3/4'' Diameter with Heat Exchanger & 10" long tailpipe (Optional Studding to improve cabin heat Add $95.00)




DWG.

 415.00

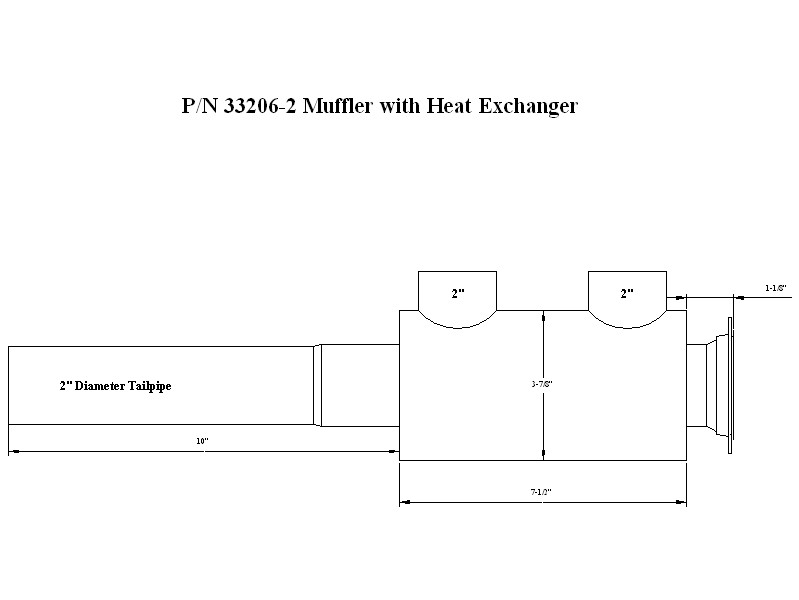

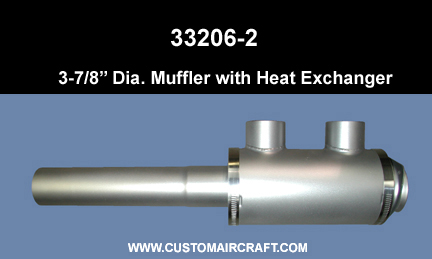

33206-2
Muffler 3-7/8'' Diameter with Heat Exchanger & 10'' long tailpipe (Optional Studding to improve cabin heat Add $95.00)




DWG.

415.00

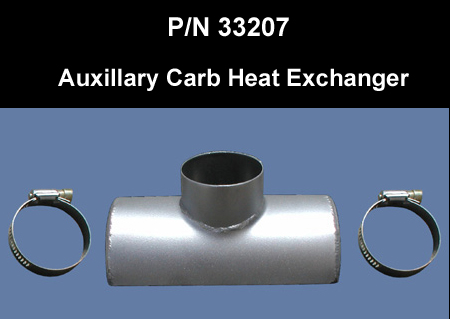

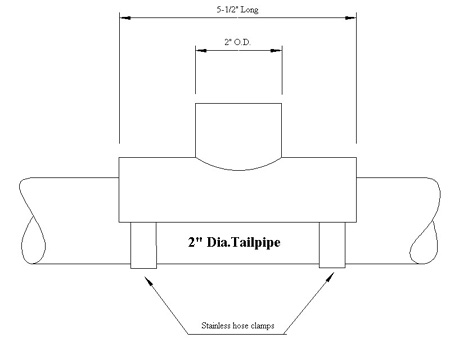

33207
Auxiliary Carb heat box (Specify Tailpipe Diameter)




DWG.

215.00

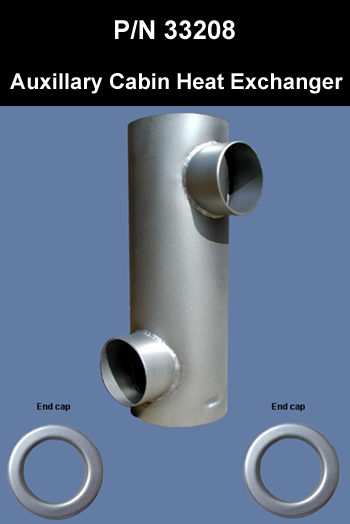

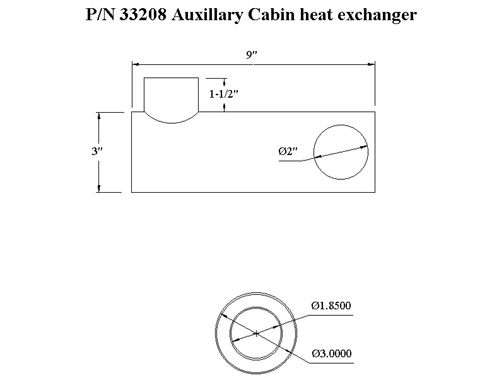

33208 Auxiliary Cabin heat exchanger (2" Inlet & Outlet standard)




DWG.

275.00

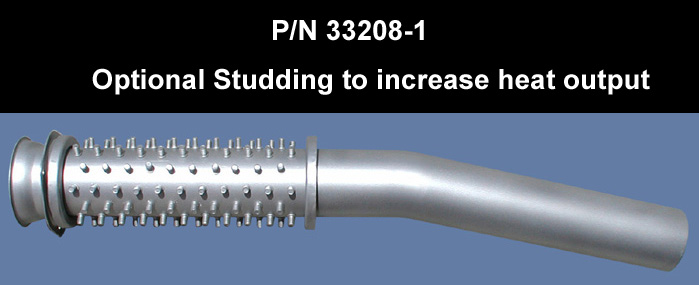

33208-1 Optional Studding Service for extra cabin heat efficiency




125.00-200.00

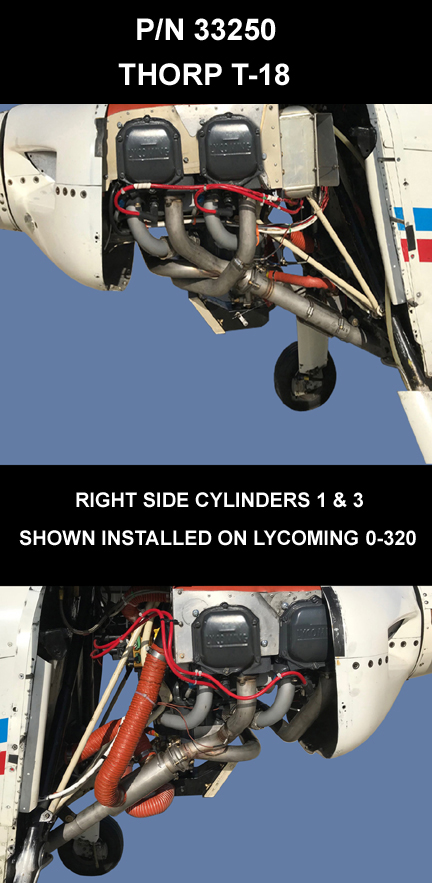

33250
Thorp T-18 Crossover Exhaust System Lycoming 0-233 through 0-360 (Vertical Induction Intake) (Comes with 26" Tailpipes RH has cabin heat muff installed LH Tailpipe has Carb. heat shroud) (Optional Studding to improve cabin heat Add $95.00)


REF.

DWG.

1575.00
33250-1
Carbon Cub Crossover Exhaust System with Lycoming O-233 thru O-360 Includes custom Tailpipes and Carb. heat provision (Vertical Induction Intake)


REF.

1585.00

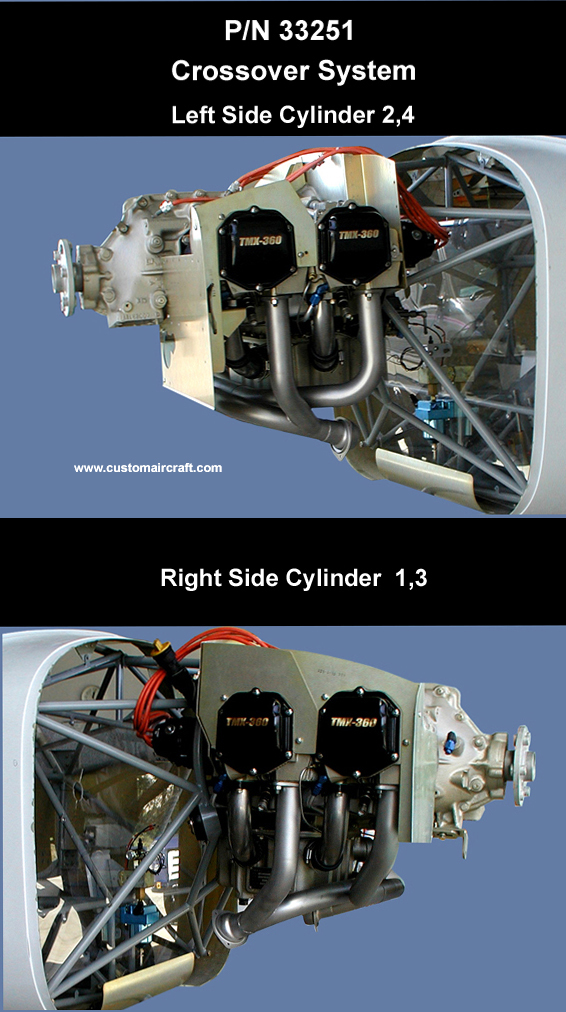

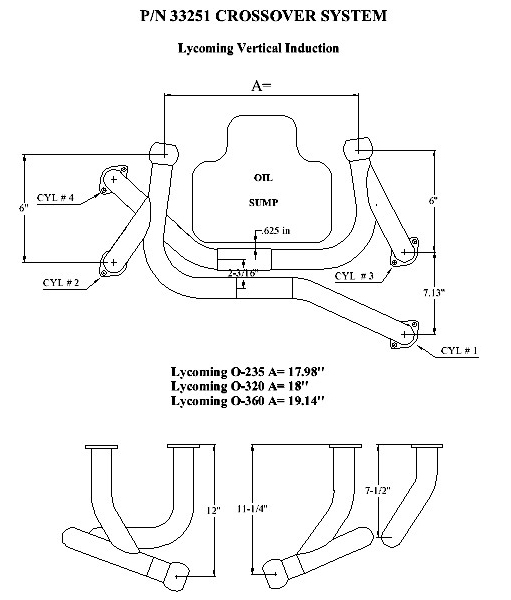

33251
Crossover Exhaust System Lycoming 0-233 through 0-360 (Vertical Induction Intake)


REF.

DWG.

995.00

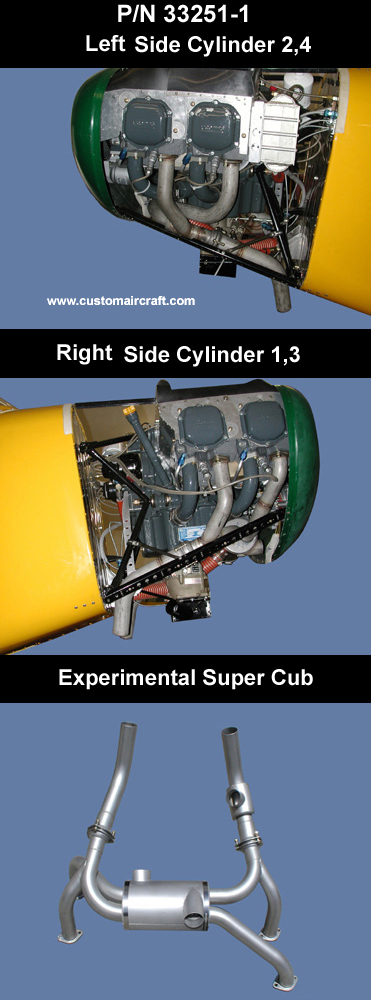

33251-1 Experimental Super Cub Crossover Exhaust System Lycoming O-360 (Vertical Induction Intake) (Must use "short" miniature light weight Sky Tec starter for clearance) (Optional studding to increase cabin heat add $95.00)


 REF.


1850.00
33251-2 Experimental Super Cub Crossover Exhaust System Lycoming O-290 / O-320 (Vertical Induction Intake) (Must use "short" miniature light weight Sky Tec starter for clearance) (Optional studding to increase cabin heat add $95.00) (O-233 / O-235 Version available Specify engine)


REF.


1850.00

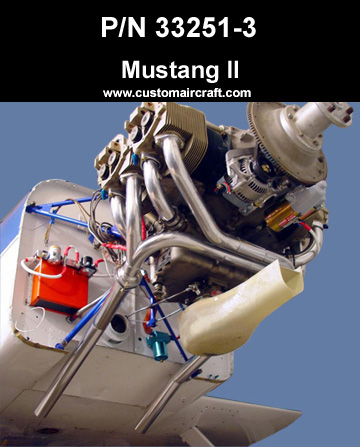

33251-3 Mustang II Crossover Exhaust System Lycoming O-233 through O-360 (Comes with Custom Tailpipes) (Vertical Induction Intake)


REF.

1325.00

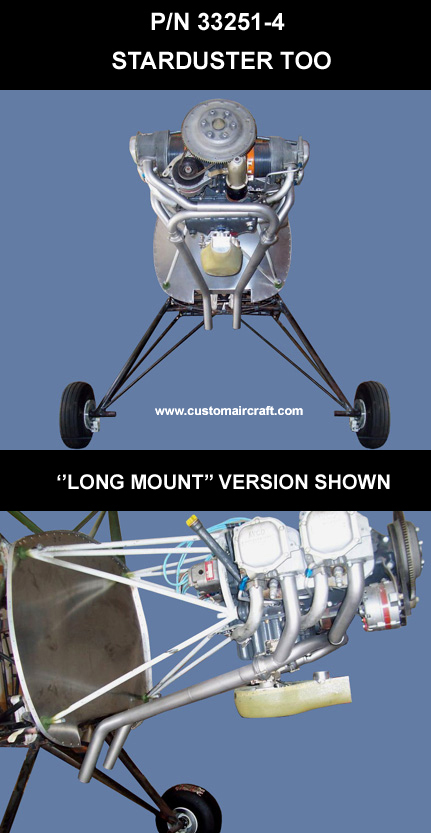

33251-4 Starduster Too Crossover Exhaust System Lycoming O-233 thru O-360 (Comes with Custom Tailpipes) (Vertical Induction Intake)


 REF.


1425.00

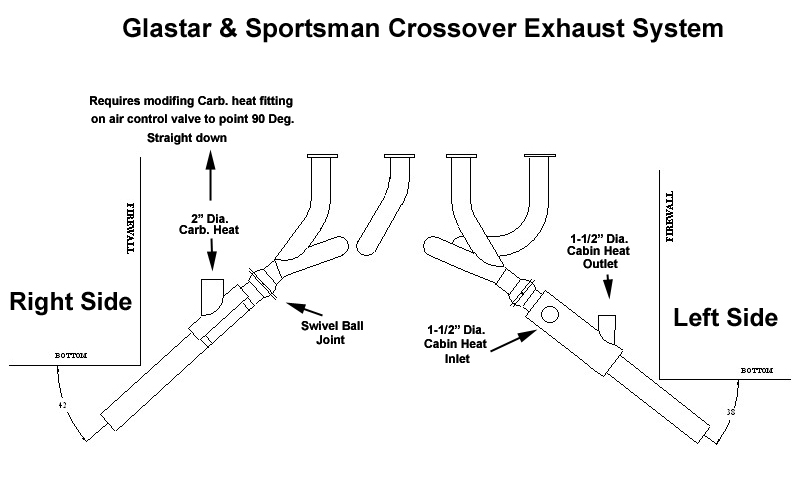

33251-5 GlaStar & Sportsman Crossover Exhaust System Lycoming O-233 thru O-360 (Comes with Tailpipes Carb and Cabin Heat as shown) (Vertical Induction Intake) (Fits aircraft with Composite OEM Induction Plenum) (Optional Studding to increase Cabin heat Add $100.00)


 REF.

DWG.

1650..00

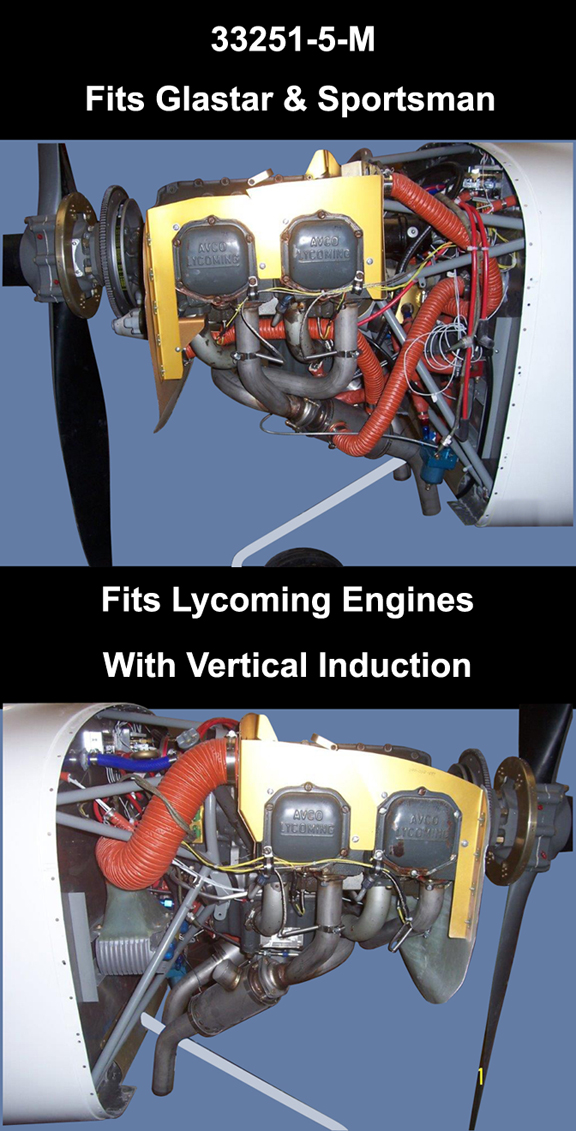

33251-5-M GlaStar & Sportsman Crossover Exhaust System Lycoming O-233 thru O-360 (Comes with Tailpipes, Mufflers with Heat Exchangers as shown) (Vertical Induction Intake)


REF.


1795..00
33251-6 Falco F8L Crossover Exhaust System Lycoming O-233 thru O-360 (Comes with Tailpipes Carb and Cabin Heat as shown) (Vertical Induction Intake) (Optional Studding to increase Cabin heat Add $95.00)


REF.


1650..00

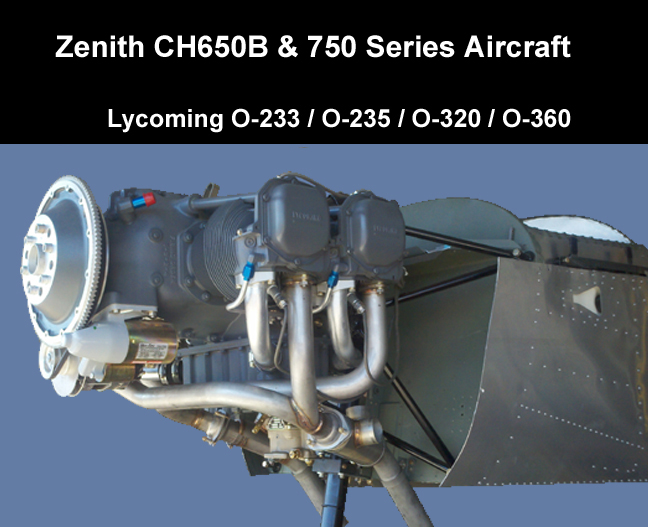

33251-7 Zenith CH650B Crossover Exhaust System Lycoming O-233 thru O-360 (Comes with Tailpipes, Carb and Cabin Heat as shown) (Vertical Induction Intake) (Optional Studding to increase Cabin heat Add $95.00)


REF.


1750..00
33251-8
Storm 400 Crossover Exhaust System Lycoming O-233 through O-360 (18" Tailpipes included)


REF.

DWG.

1195.00

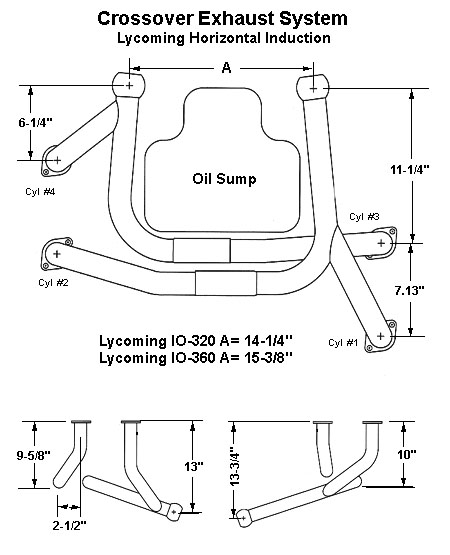

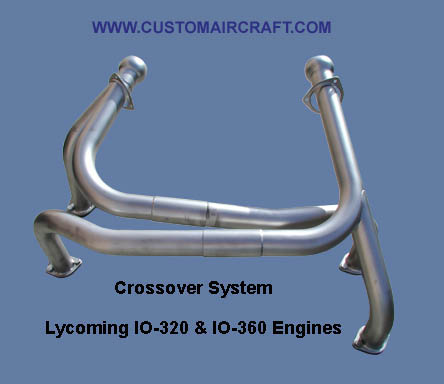

33251-B
Crossover Exhaust System Lycoming IO-320 / IO-360 B,C series (Horizontal Induction) (Parallel valve engine)


REF.

DWG.

995.00

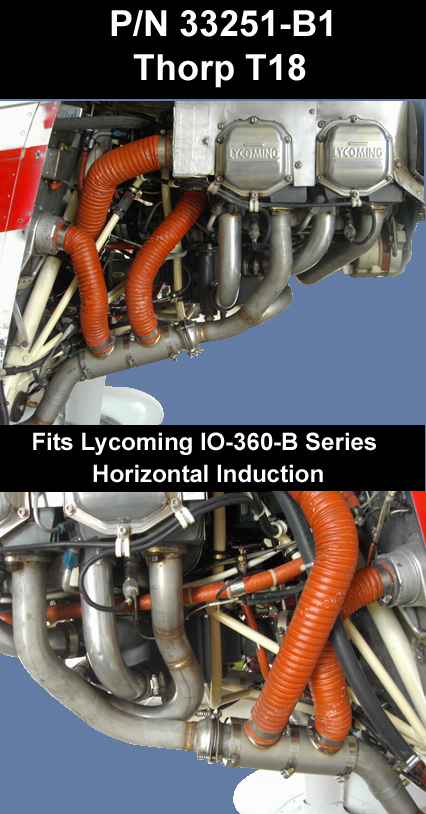

33251-B1 Thorp T-18 Crossover Exhaust System IO-320 / IO-360 B,C series (Horizontal Induction) (Parallel valve engine) (Shown with optional secondary heat exchanger)


REF.

1795..00
33252
Crossover Exhaust System (CUSTOM) Lycoming 0-233 through 0-360 (Vertical Induction Intake)

REF.

P.O.R.

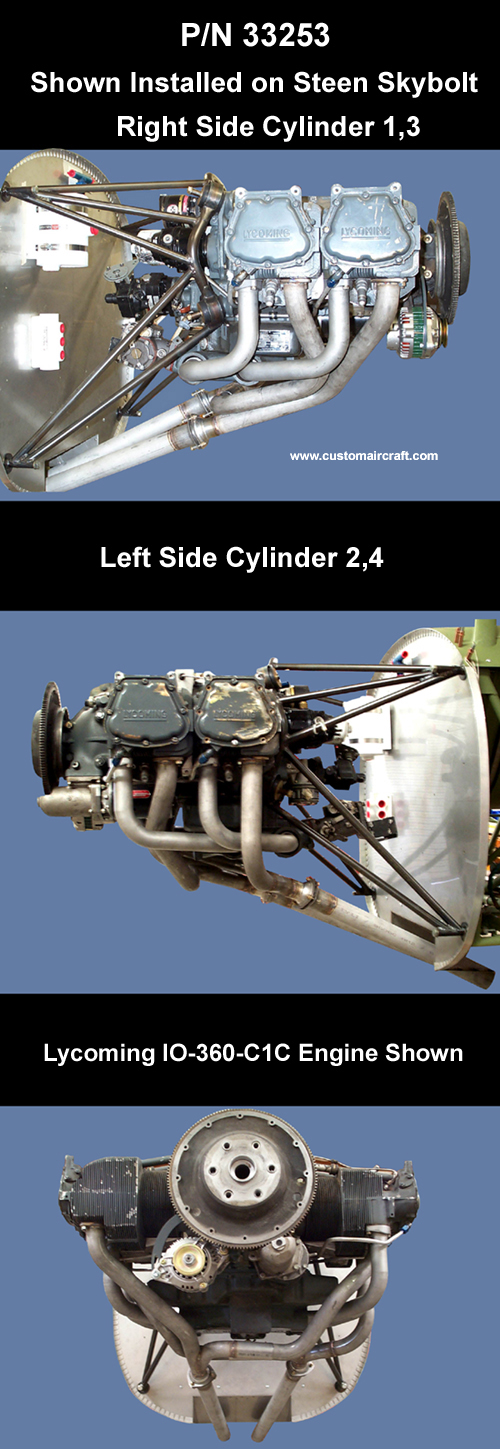

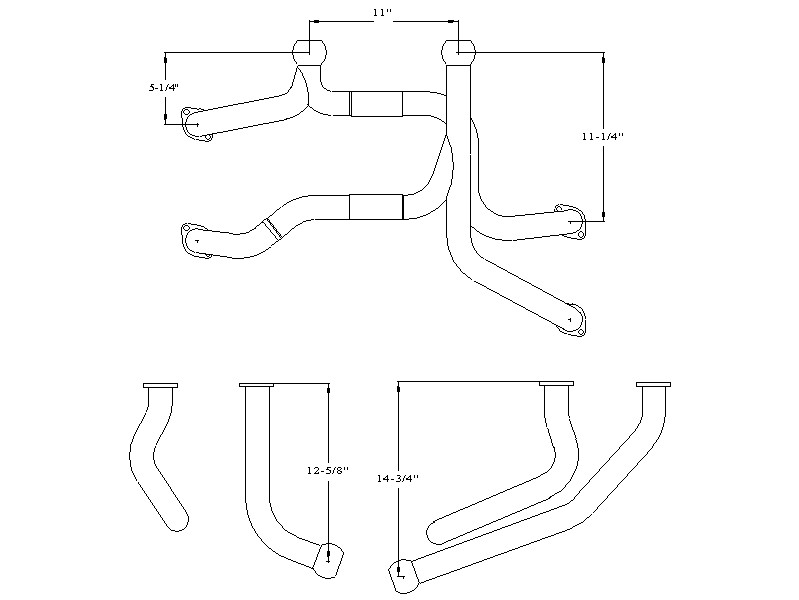

33253
Crossover Exhaust System Lycoming IO-360 200 HP & IO-390 210 HP Angle valve engine (FITS FWD & AFT FACING SERVOS) (30" Tailpipes NOT included)


REF.

DWG.

1295.00

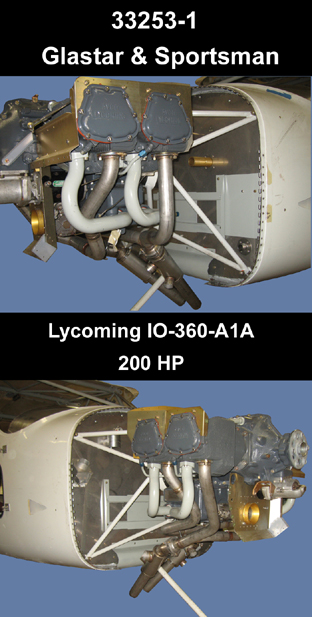

33253-1
Glastar & Sportsman Crossover Exhaust System Fits Lycoming IO-360-A & C / IO-390-A & C Series Angle Valve Engines. Includes Tailpipes & (1) Cabin heat exchanger. (Photo shown with optional secondary heat exchanger)


REF.


1725.00

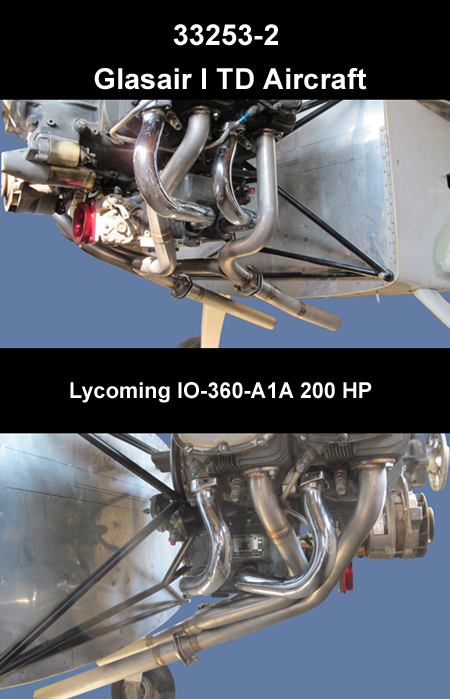

33253-2
Glasair I TD Crossover Exhaust System Fits Lycoming IO-360-A & C / IO-390-A & C Series Angle Valve Engines. Includes Tailpipes.


REF.


1525.00
33254
Crossover Exhaust System (CUSTOM) Lycoming IO-360 200 H.P.

REF.

P.O.R.

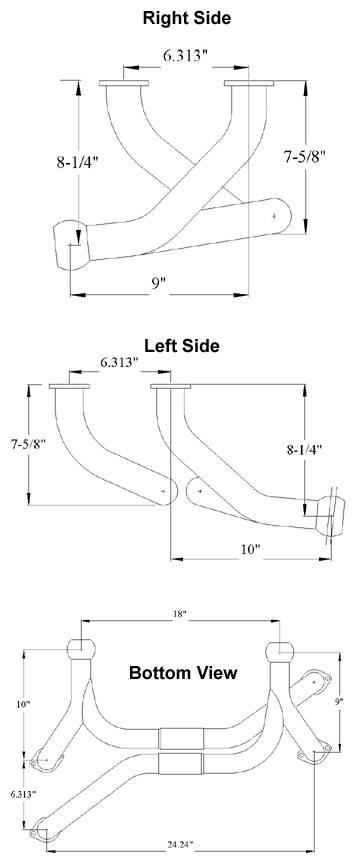

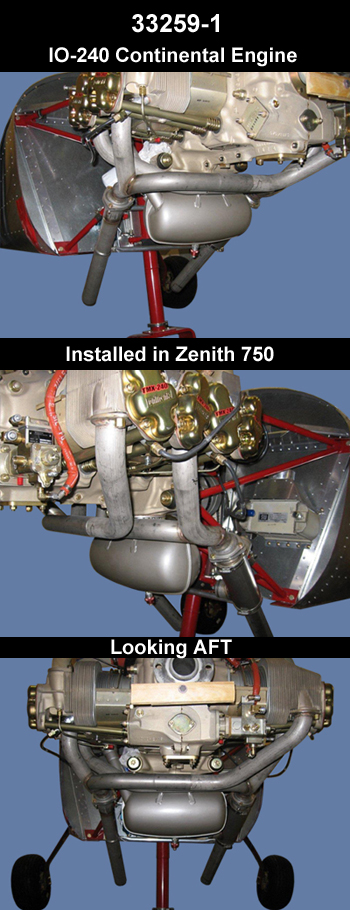

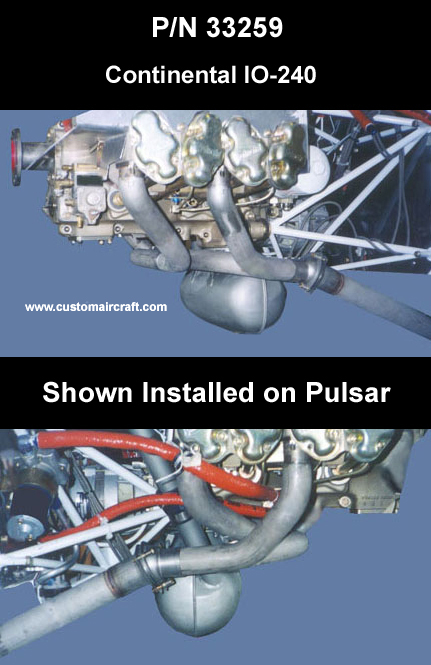

33259
Crossover Exhaust System Continental IO-240 (Tailpipes NOT included)


REF.

DWG.

995.00

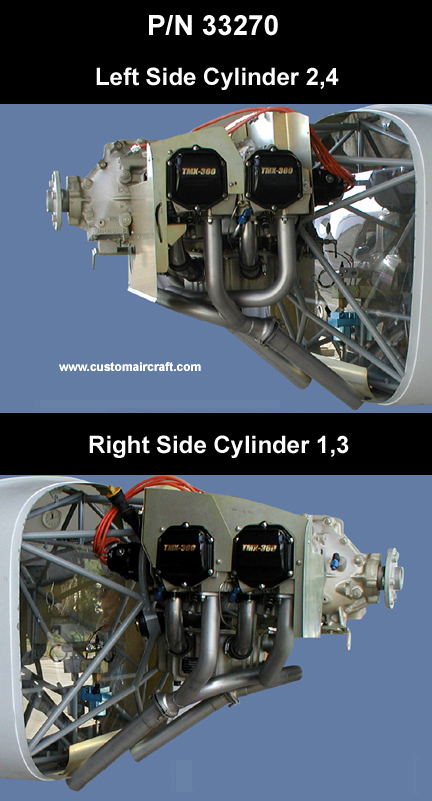

33270
Crossover Exhaust System Lycoming 0-233 through 0-360 (14" tailpipes Included) (Vertical Induction)


REF.

 DWG.

1175.00
33272
Crossover Exhaust System Lycoming 0-233 through 0-360 (Mufflers Included) (NO heat exchangers) (Vertical Induction)


REF.

 DWG.

1450.00

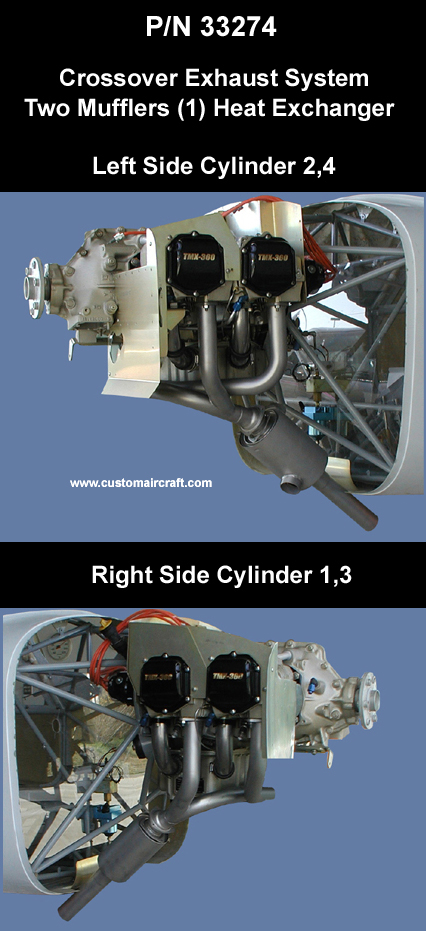

33274
Crossover Exhaust System Lycoming 0-233 through 0-360 (One Non Heat & One Heat Exchanger Muffler Included) (Vertical Induction)


REF.

 DWG.

1625.00
33276
Crossover Exhaust System Lycoming 0-233 through 0-360 (Includes Dual Mufflers With 2 Heat Exchangers) (Vertical Induction)


REF.

 DWG.

1795.00
33276-1
Zenith 801 Crossover Exhaust System Lycoming 0-233 through 0-360 (Includes Dual Mufflers With 2 Heat Exchangers) (Vertical Induction)


REF.

DWG.

1795.00

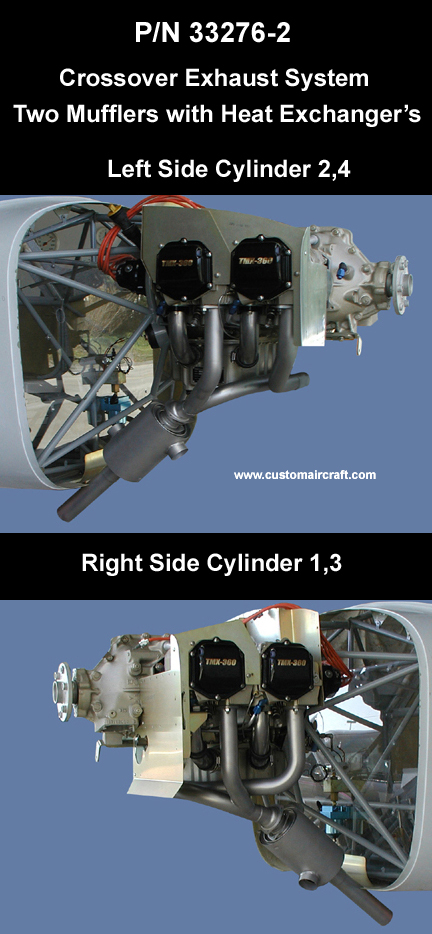

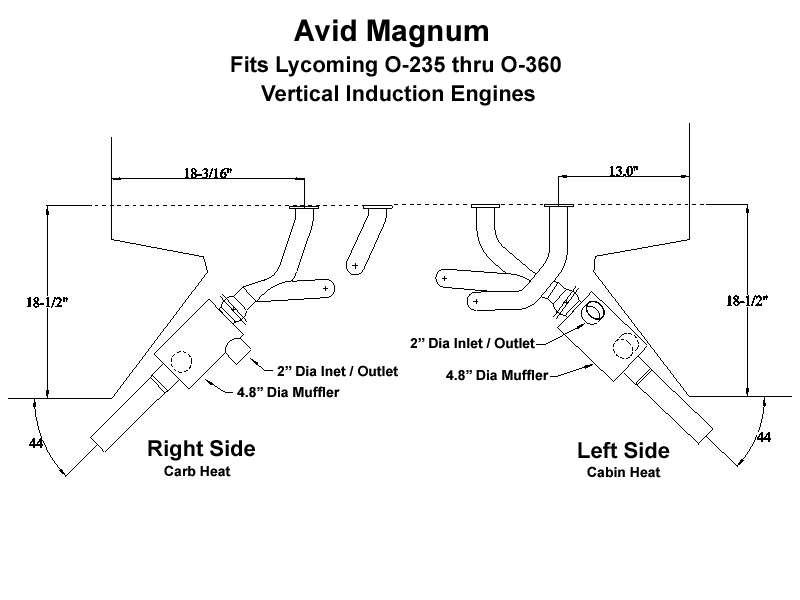

33276-2 Avid Magnum Crossover Exhaust System Lycoming O-233 thru O-360 (Includes Dual Mufflers With 2 Heat Exchangers) (Vertical Induction)


REF.

DWG.

 1795.00

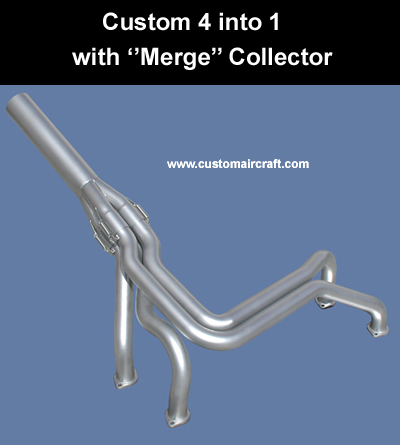

33277 Custom built 4 into 1 Exhaust Systems with ''Merge'' type collector




1795.00 & UP

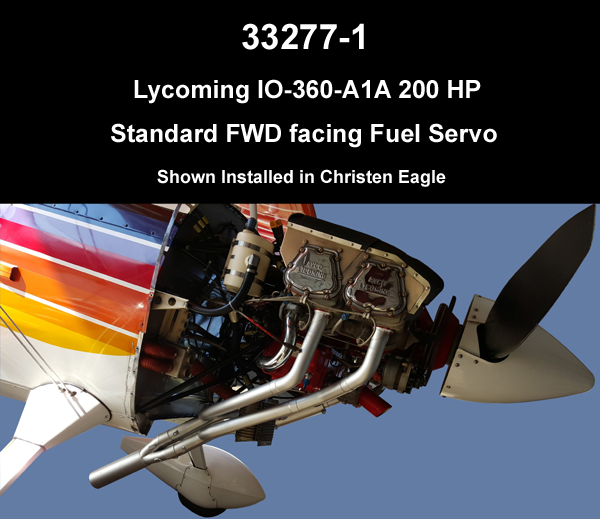

33277-1 Christen Eagle 4 into 1 Exhaust system with ''Merge'' collector Lycoming IO-360-A1A & IO-390-A1A 200 HP Angle Valve engines




1995.00

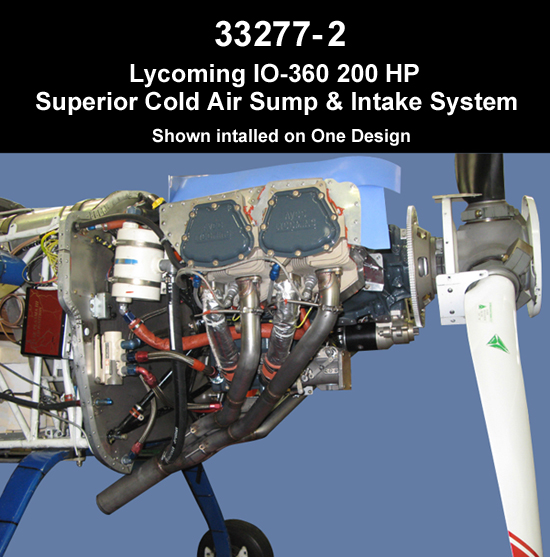

33277-2 One Design 4 into 1 Exhaust system with ''Merge'' collector Fits Lycoming IO-360 & IO-390 200 HP A.V. engines with Superior Cold Air Sump & Intake setup




1895.00

33277-3
Custom Built 4 Into 1 Offset ''Merge'' Collector Fit Lycoming IO-360-M1B 180 HP Type engines


REF.


1995.00

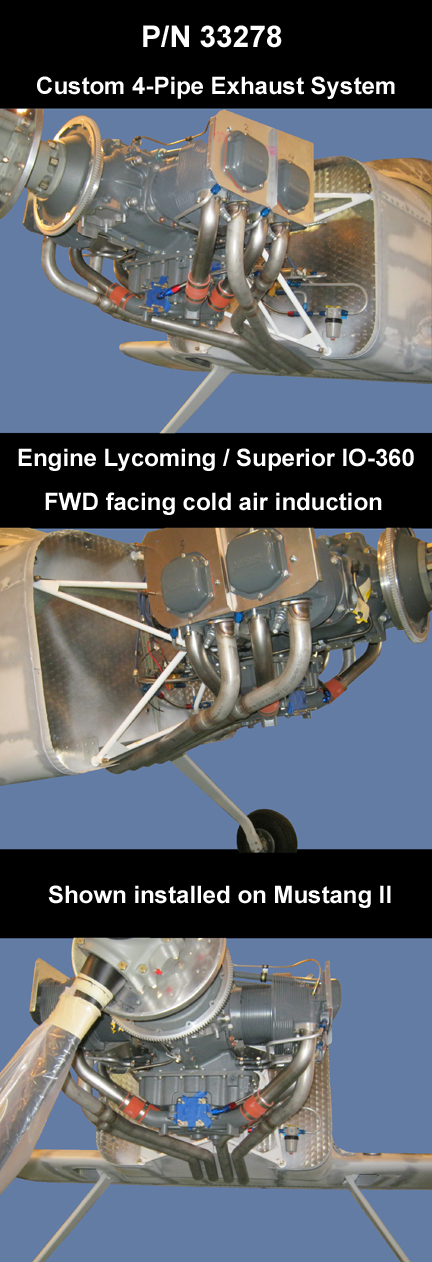

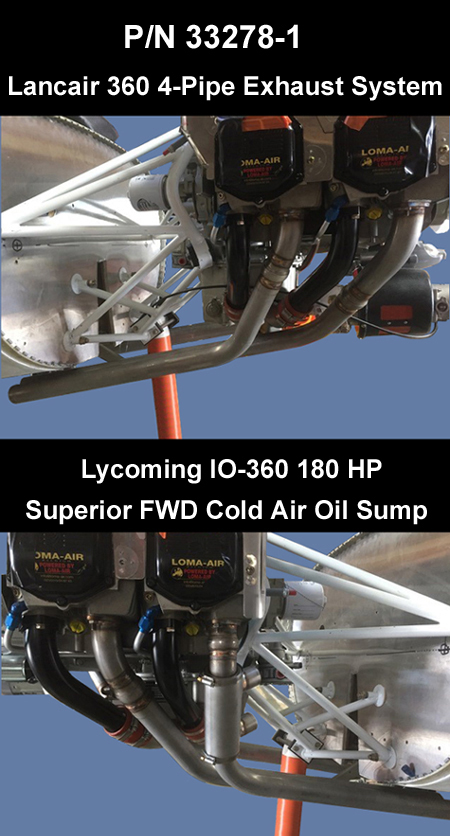

33278 Custom built 4-Pipe Exhaust Systems




1595.00 & UP

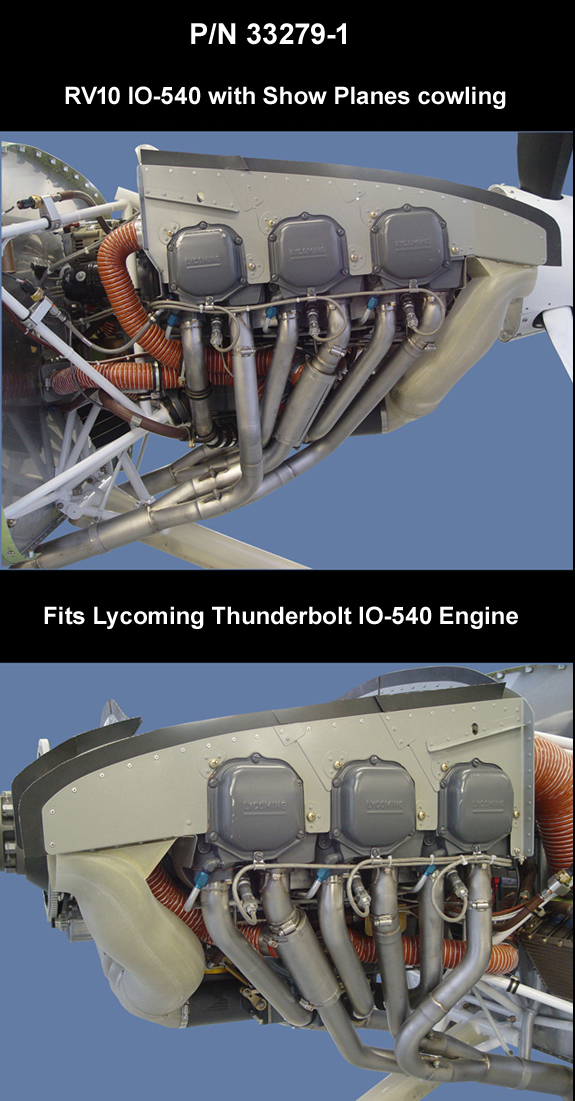

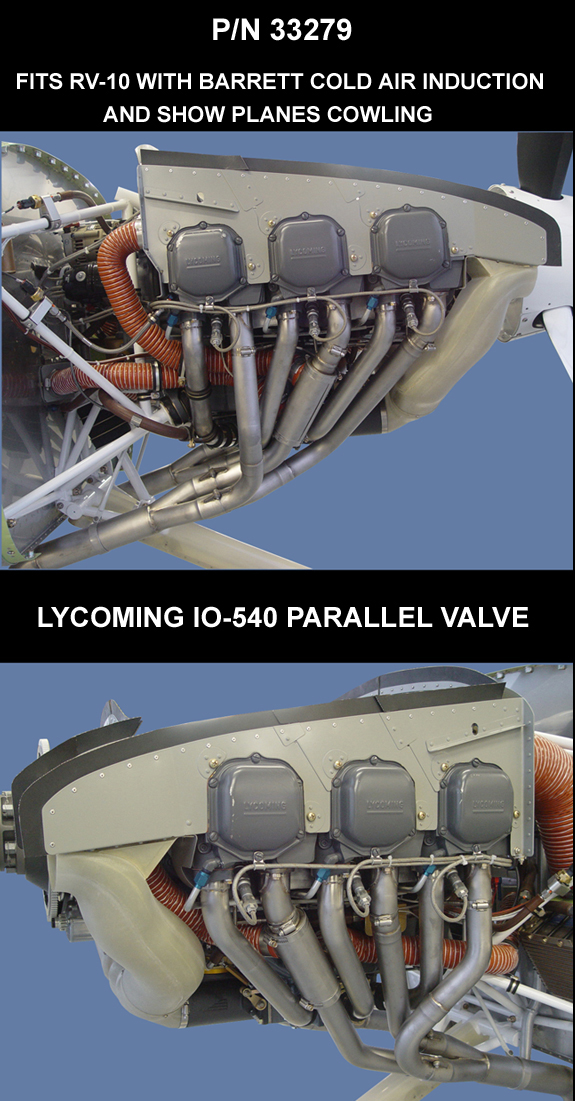

33279 Vans RV-10 Dual 3-1 Exhaust System Specifically designed to fit Barrett CLD Air Induction with Show Planes Cowling. (Includes 2-Cabin heat exchangers)




2450.00

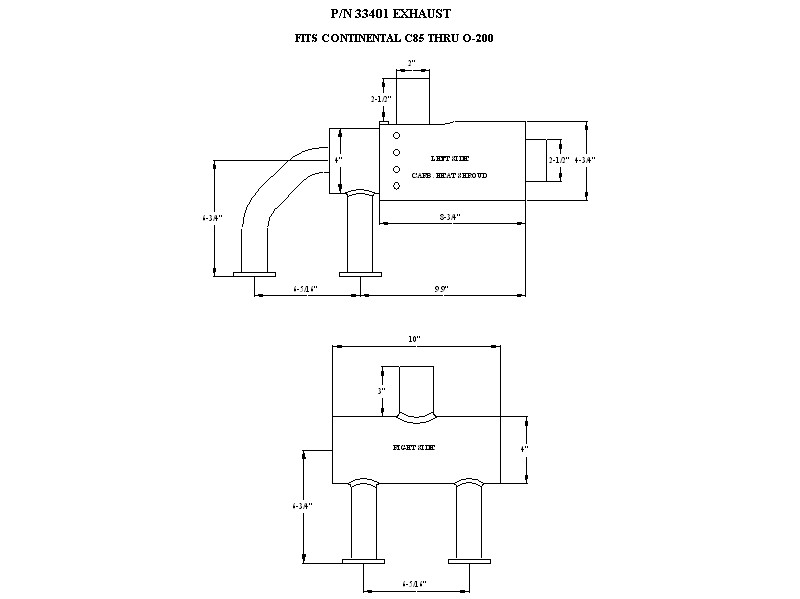

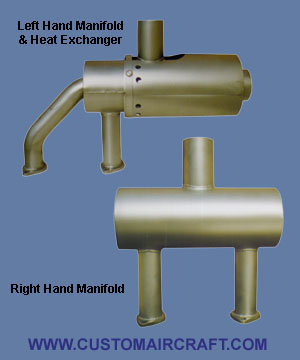

33401
Muffler System L/H & R/H Continental C-85 through O-200 Similar to Cessna 150


REF.

DWG.

925.50

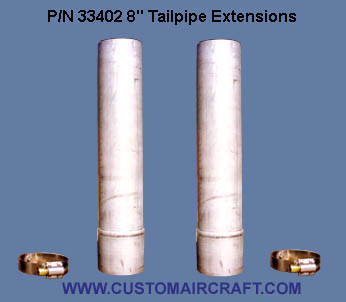

33402
Tailpipe Extensions for P/N 33401 8" long




DWG.

140.00

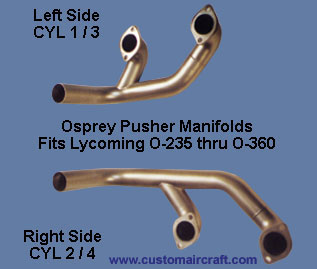

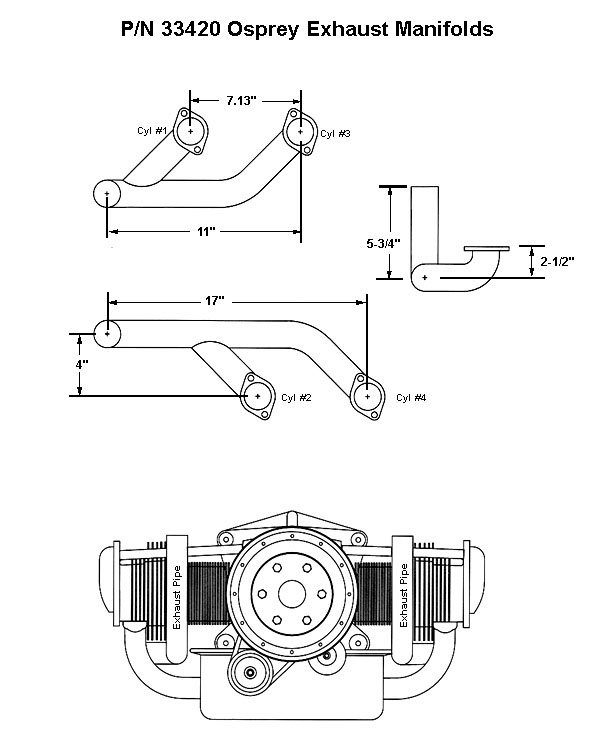

33420
Osprey Amphibian Exhaust Manifolds Lycoming 0-235 through 0-360 (Vertical Induction Intake)


REF.

DWG.

895.00

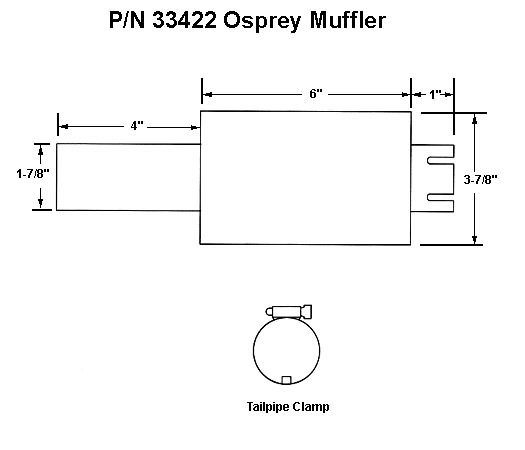

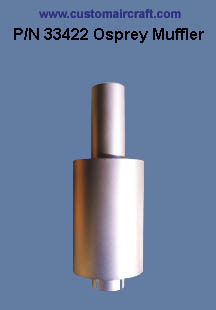

33422
Osprey Muffler (NO heat exchanger)




DWG.

250.00

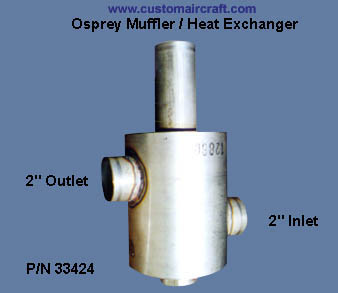

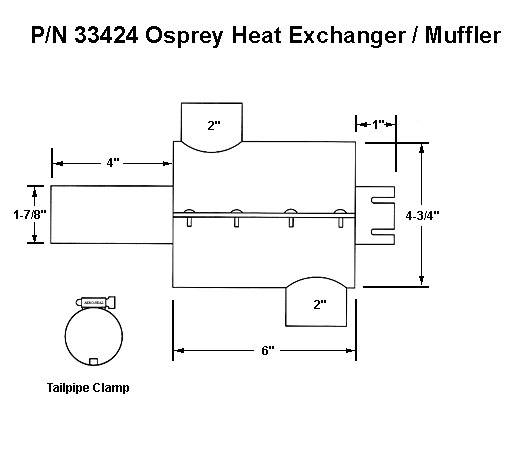

33424
Osprey Muffler & Heat Exchanger




DWG.

415.00

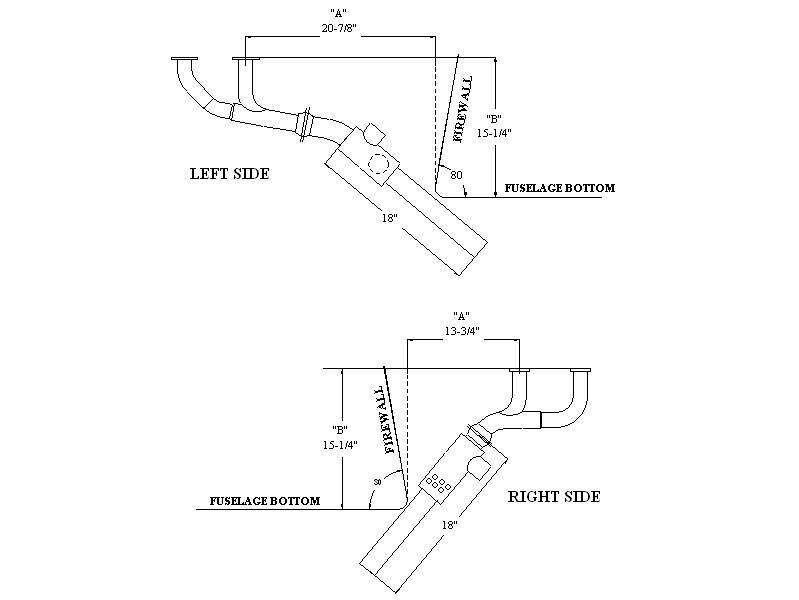

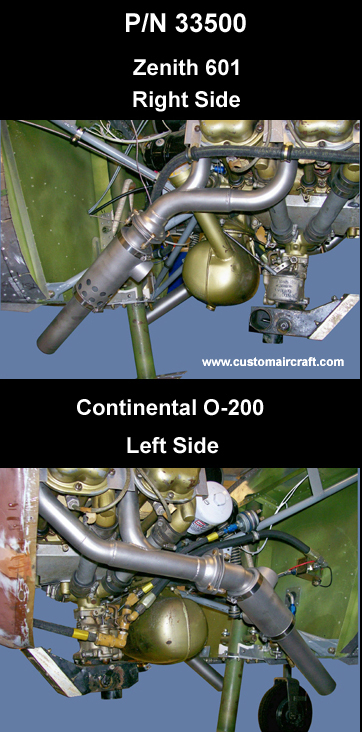

33500 Zenith 601 / 601XL / 650 / 750 Continental O-200 Engine (Includes Cabin Heat & Carb Heat)


REF.

DWG.

1495.00

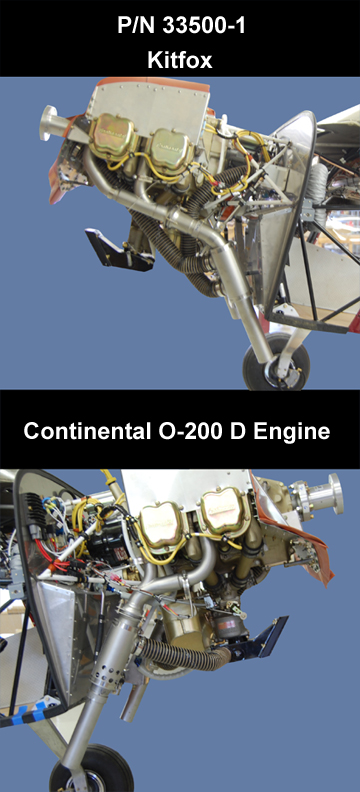

33500-1 KitFox Super Sport Continental O-200 Engine (Includes Cabin & Carb. Heat)


REF.

DWG.

1495.00

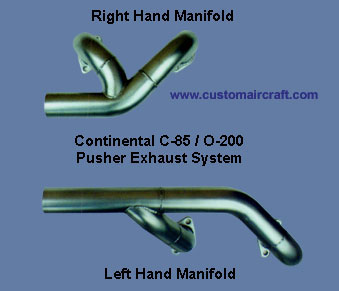

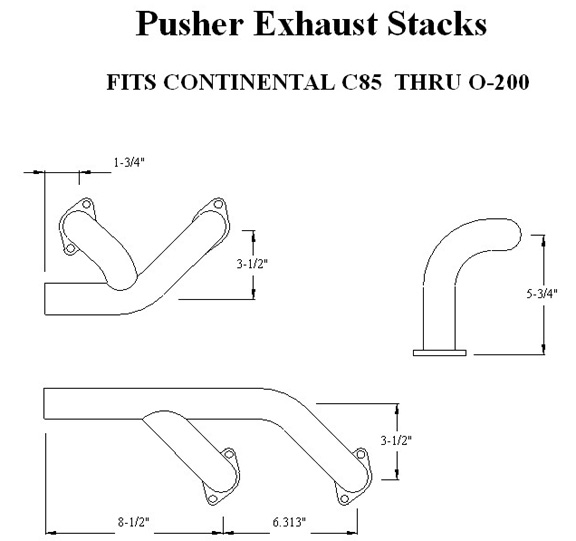

33601
Exhaust Manifolds Y-Style Continental C-85 through O-200 (Pusher Type Aircraft)


REF.

 DWG.

775.00

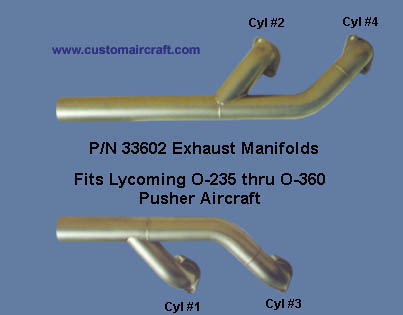

33602

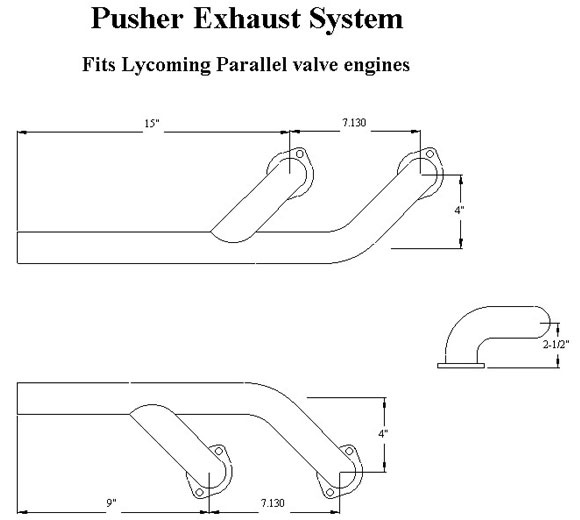

Exhaust Manifolds Y-Style Lycoming 0-235 through 0-360 (Pusher Type Aircraft) (Vertical Induction Intake)


REF.

 DWG.

795.00

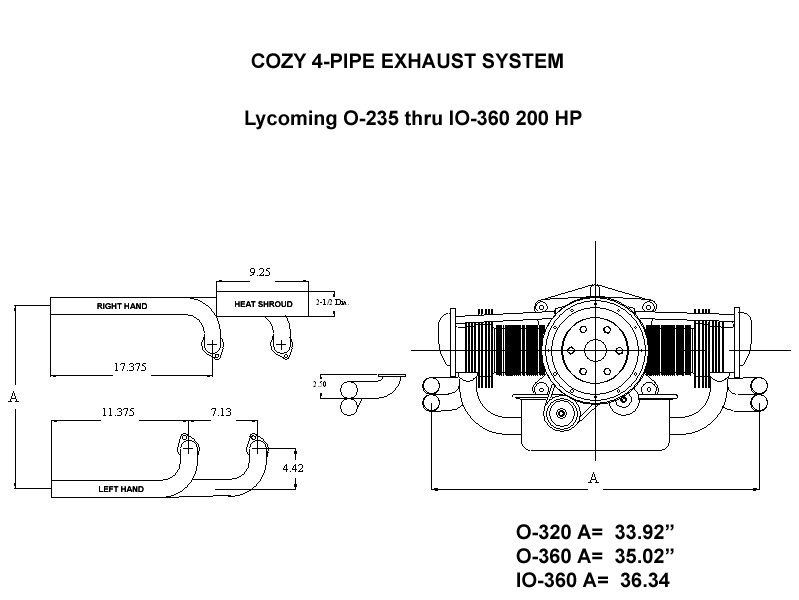

33702

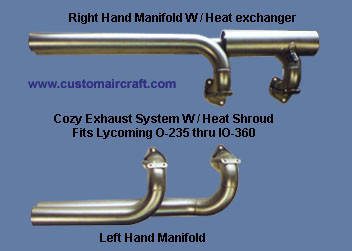

Cozy 4-Pipe Exhaust Manifolds Lycoming 0-235 through O-360 Comes with heat shroud (Vertical or Horizontal Induction Intake)


REF.

DWG.

1275.00
33702-1
Cozy 4-Pipe Exhaust Manifolds Lycoming IO-360 200 HP Comes with heat shroud


REF.

DWG.

1295.00

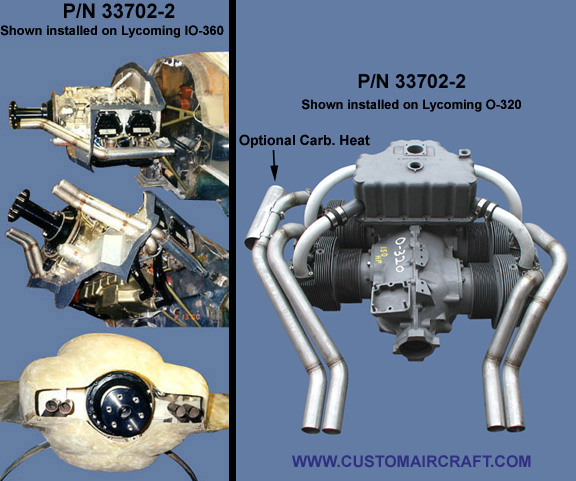

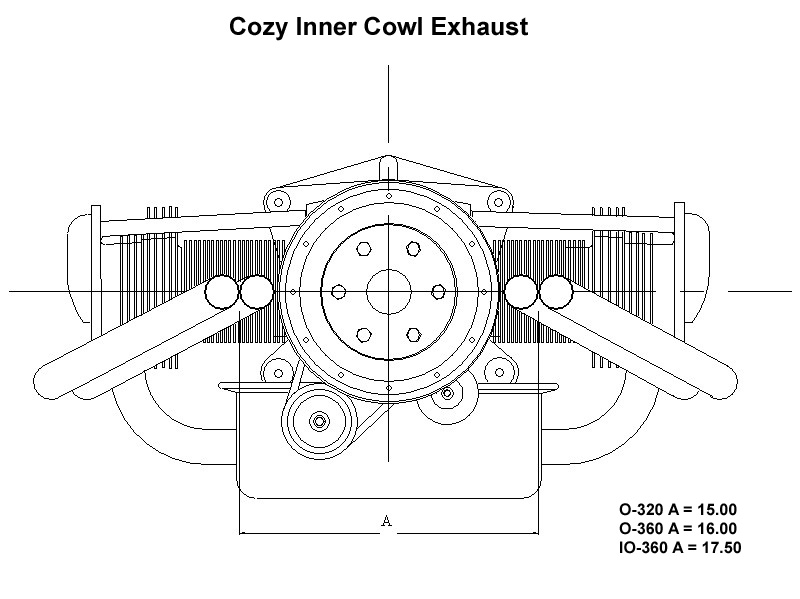

33702-2 Cozy 4-Pipe Exhaust Manifolds (Inside the Cowl Type) Lycoming O-235 through IO-360 200 HP (Shown with optional heat muff P/N 33702-3) & (Specify Engine) Cowling modifications may be required!


REF.

 DWG.

1495.00

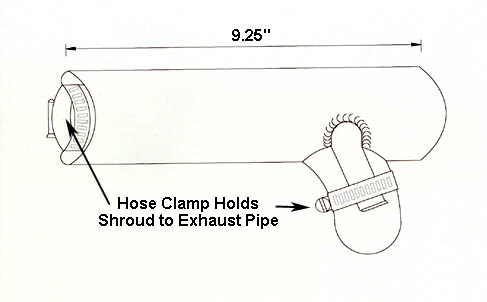

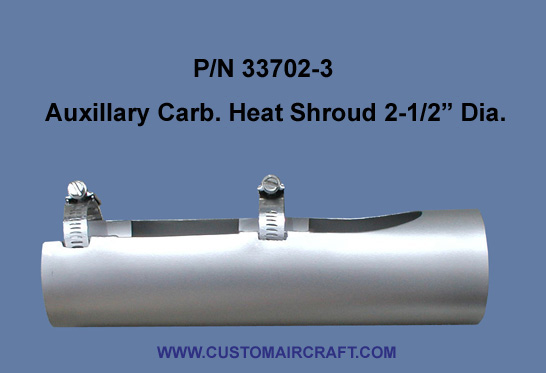

33702-3
Cozy, Berkut, Long EZ Clamp on style heat shroud (2-1/2" Connection)




DWG.

195.00

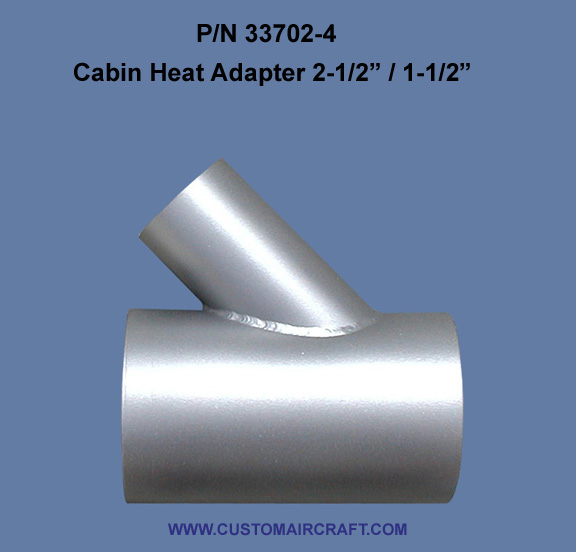

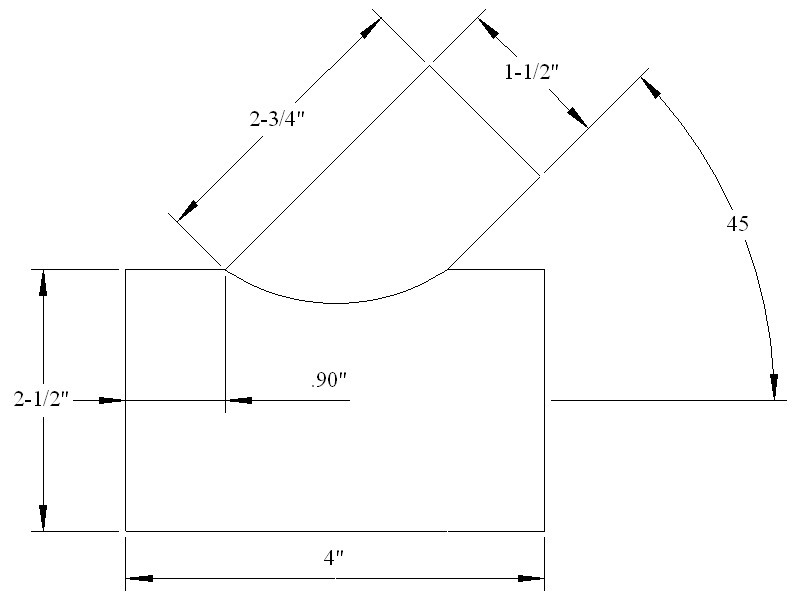

33702-4
Cozy, Berkut, Long EZ Cabin heat adapter 2-1/2" to 1-1/2"




DWG.

85.00

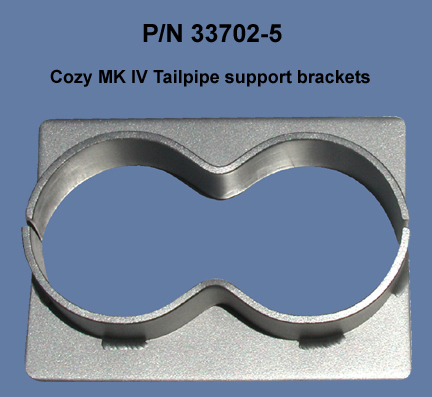

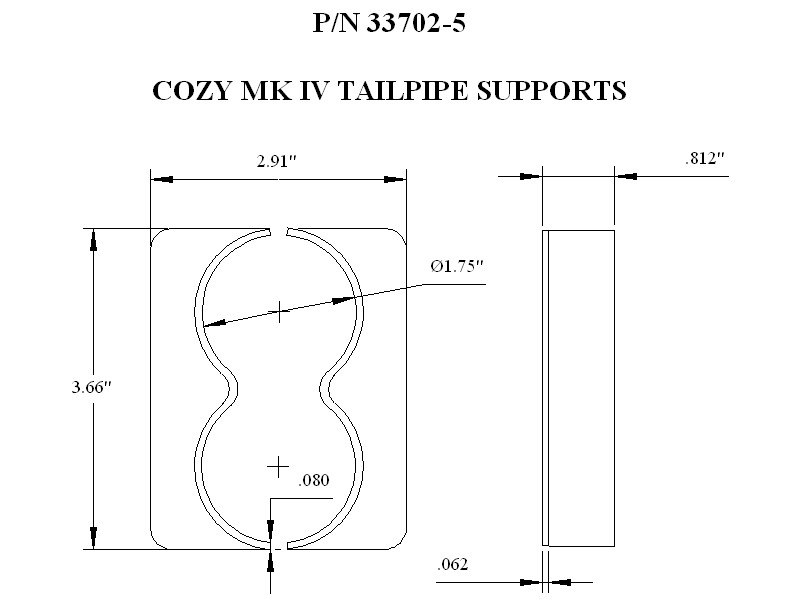

33702-5
Cozy / Long EZ Dual Tailpipe support brackets (Sold in pairs, Requires 2 pairs per aircraft)




DWG.

150.00 Ea. Pair

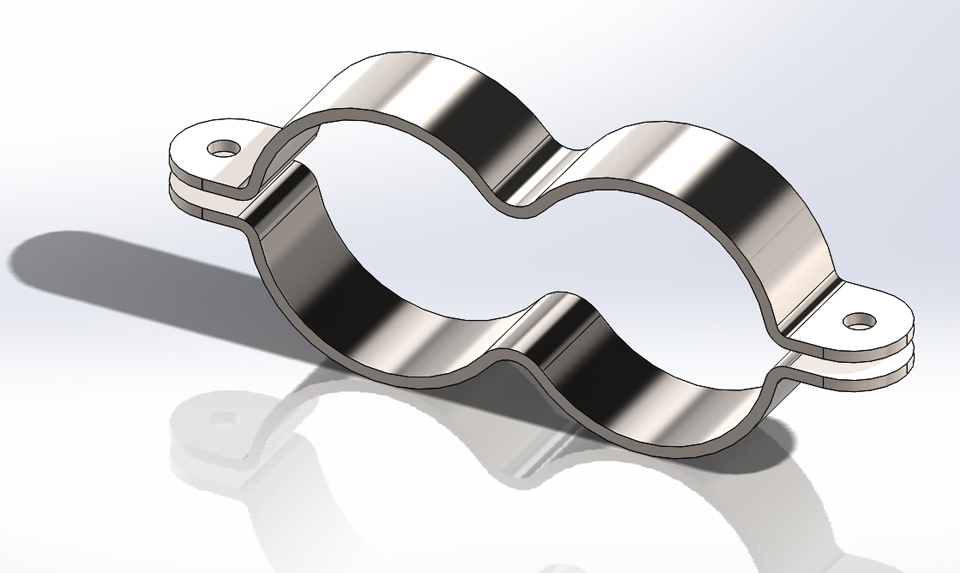

33702-6
Cozy / Long EZ Dual Tailpipe support clamp (Sold in Pairs, Requires 2 pairs per aircraft)



95.00 Ea. Pair
33703 Replacement compression spring for ball joints




DWG.

4.75

33704 Replacement extension spring for Cozy / Long-EZ / Aero-Cad / Berkut




7.25

33705 Ball Joint Hardware Kit (3-Springs, 3-AN3-13 Bolts, 3-AN310-3 Castle Nuts & 6-AN960-10 Washers)




 15.30

33706 Lycoming Exhaust Stud OEM P/N 31C-12 5/16''-18 TPI

7.50

33707 Lycoming exhaust installation hardware kit, includes 1 each of the following items, (5/16''-18 Nut, Flat Wsher, Internal Lock Washer)

2.75

33802
Aero-Cad 4-Pipe Exhaust Manifolds Lycoming 0-233 through IO-360 200 HP (PLEASE SPECIFY ENGINE)


REF.

 DWG.

1150.00

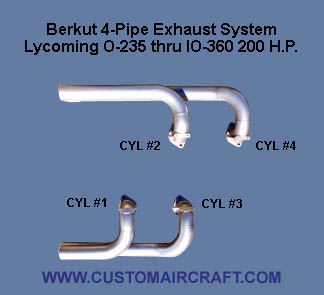

33803
Berkut 4-Pipe Exhaust Manifolds Lycoming 0-233 through IO-360 200 HP (PLEASE SPECIFY ENGINE)


REF.

DWG.

1150.00

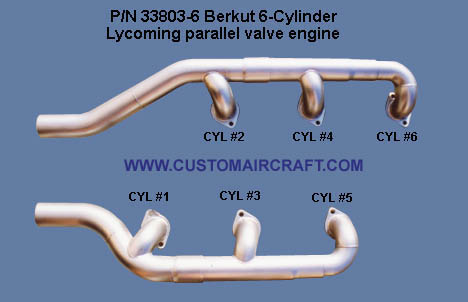

33803-6
Berkut Exhaust Manifolds Y-Style Lycoming IO-540-C1B5 (Parallel Valve Engine) (TAILPIPES MUST HAVE SUPPORT SYSTEM FOR CRACK PREVENTION) (CYL #2 OIL RETURN LINE & FITTING MIGHT NEED TO BE MODIFIED)


REF.

DWG.

1450.00

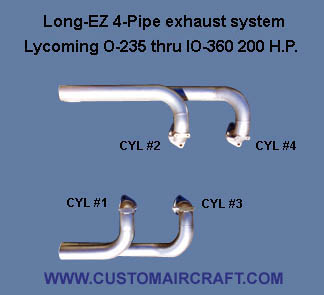

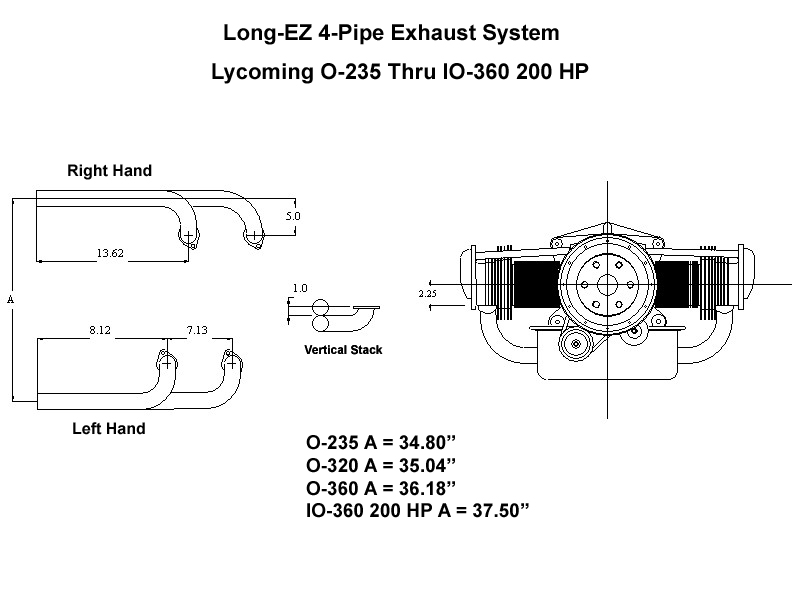

33804
Long-EZ 4-Pipe Exhaust Manifolds Lycoming 0-233 through IO-360 200 HP (PLEASE SPECIFY ENGINE)


REF.

DWG.

1150.00

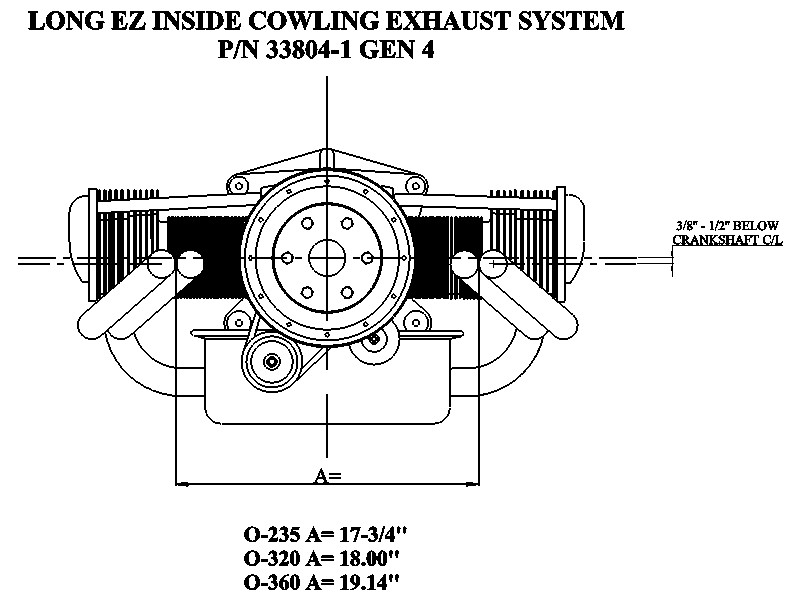

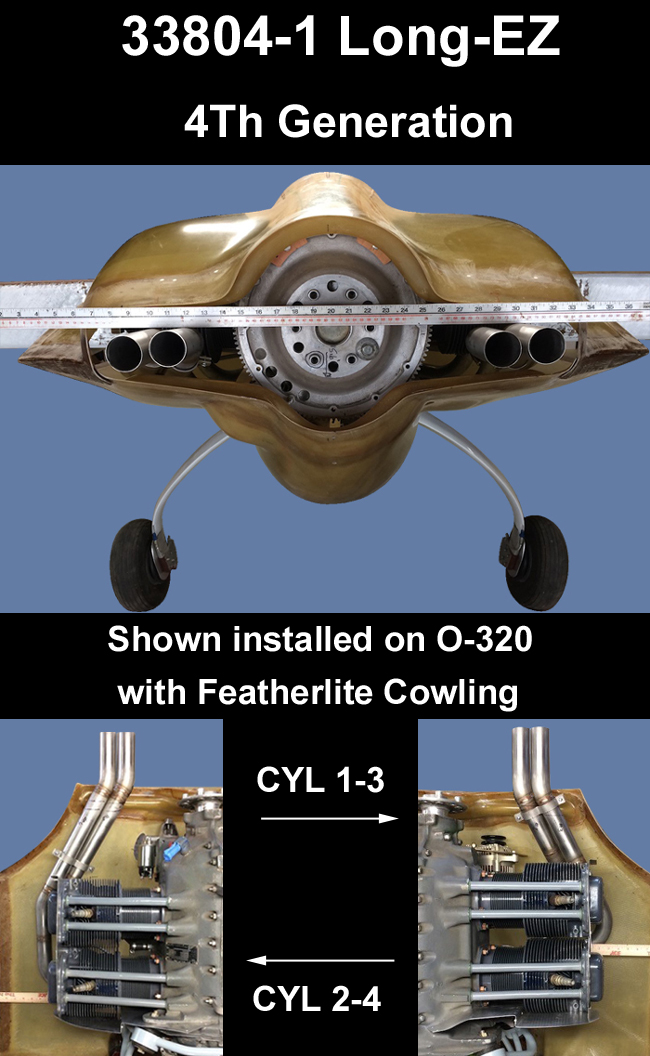

33804-1 Gen 3 Long-EZ 4-Pipe Exhaust Manifolds (Inside the Cowl Type) Lycoming O-233 through IO-360 200 HP (HEAT MUFF NOT INCLUDED) Cowling modifications may be required! (This exhaust fits closer to the engine than our original 33804-1 see drawing)


REF.

DWG.

1495.00

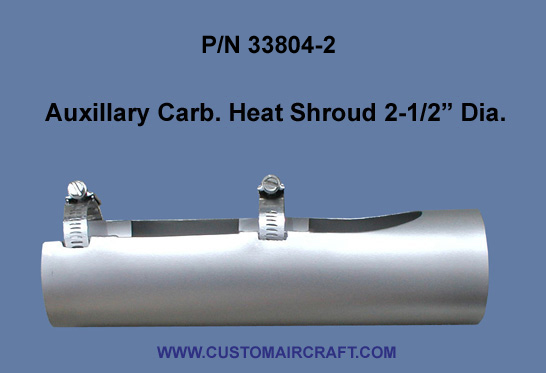

33804-2 Long EZ Clamp on style heat shroud (2-1/2" Connection)



195.00

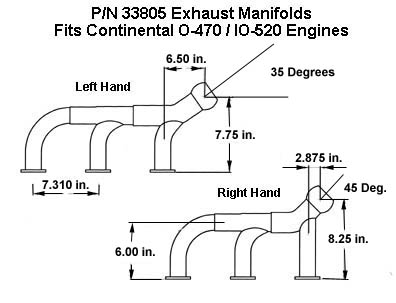

33805
Exhaust Manifolds Y-Style L/H & R/H Continental 0-470 through IO-550


REF.

DWG.

1500.00

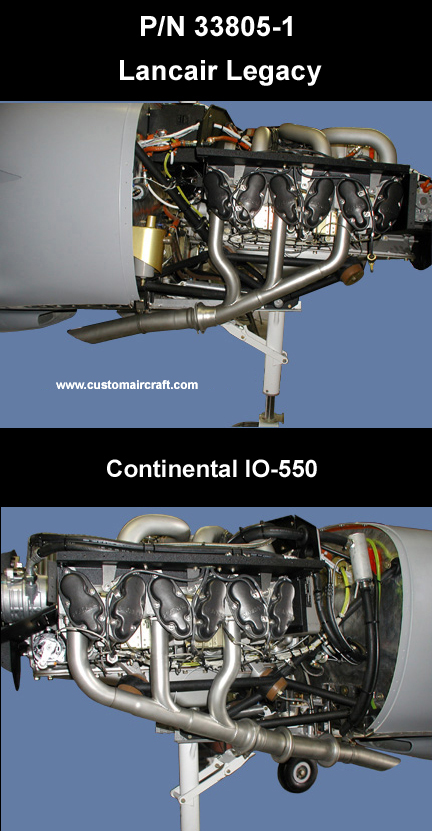

33805-1 Lancair Legacy Left Hand & Right Hand manifolds with Tailpipes & Cabin heat shroud 3.50 Diameter for improved cooling air exit. (Fits Continental IO-520 & IO-550 Only) (Optional studding to increase cabin heat add $95.00)


REF.


1995.00

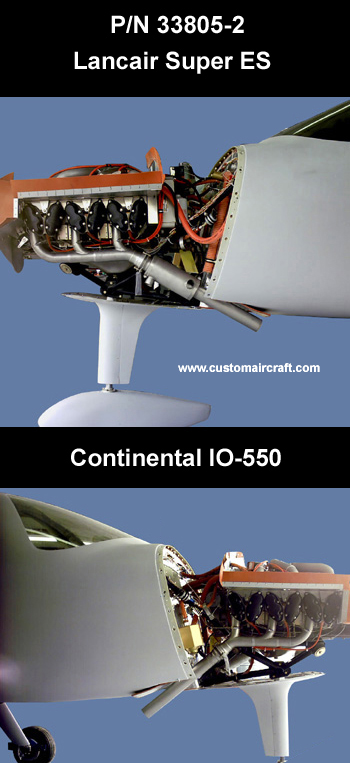

33805-2 Lancair Super ES Left Hand & Right Hand Manifolds with Tailpipes & Cabin heat shroud (Fits Continental O-470 thru IO-550 Engines) (Optional studding to increase cabin heat add $95.00)


 REF.



1995.00

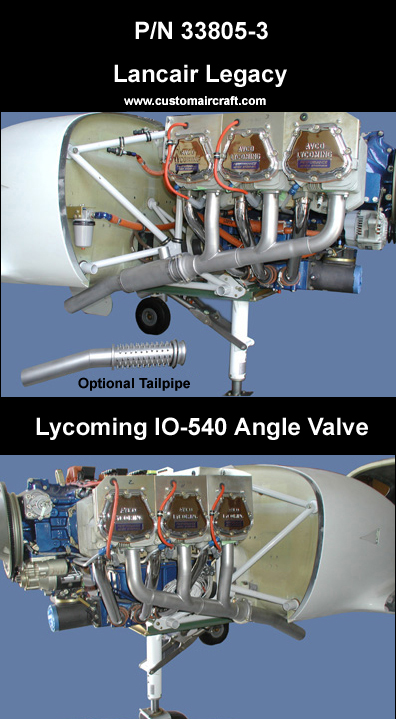

33805-3 Lancair Legacy Left Hand & Right Hand manifolds with Tailpipes & Cabin heat shroud 3.50 Diameter for improved cooling air exit. (Fits Lycoming IO-540 Angle Valve Only) (Optional studding to increase cabin heat add $95.00)


 REF.



1995.00

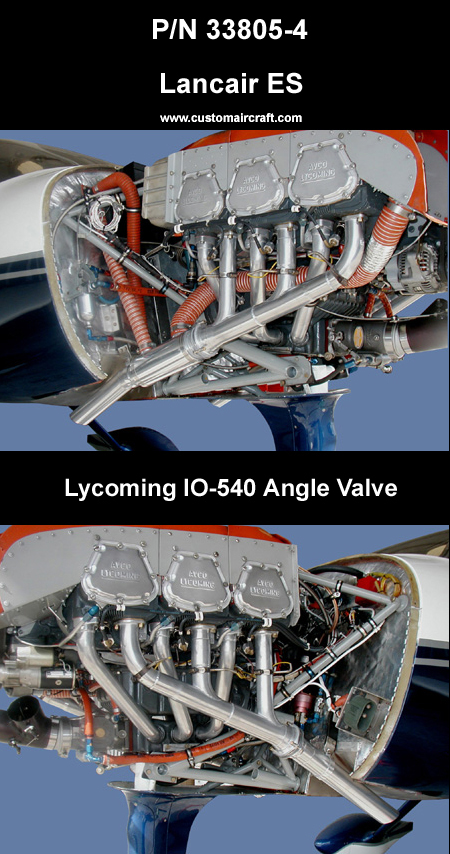

33805-4 Lancair ES Left Hand & Right Hand manifolds with Tailpipes & Cabin heat shroud 3.50 Diameter for improved cooling air exit. (Fits Lycoming IO-540 Angle Valve Only) (Optional studding to increase cabin heat add $95.00)


 REF.



1895.00

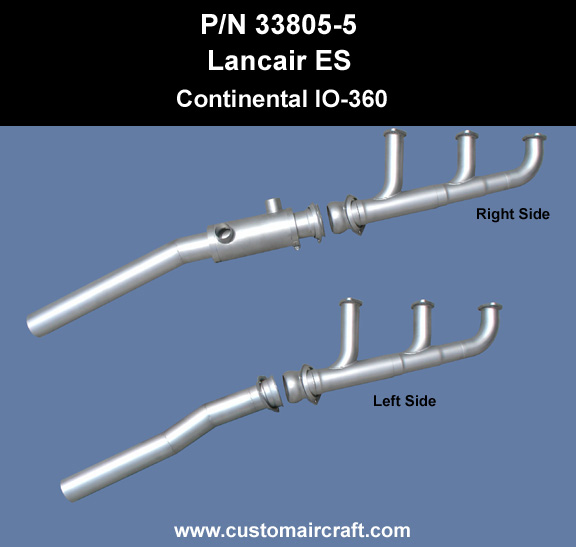

33805-5 Lancair ES Left Hand & Right Hand manifolds with Tailpipes & Cabin heat shroud 3.50 Diameter for improved cooling air exit. (Fits Continental IO-360 Only) (Optional studding to increase cabin heat add $95.00)


 REF.



1895.00

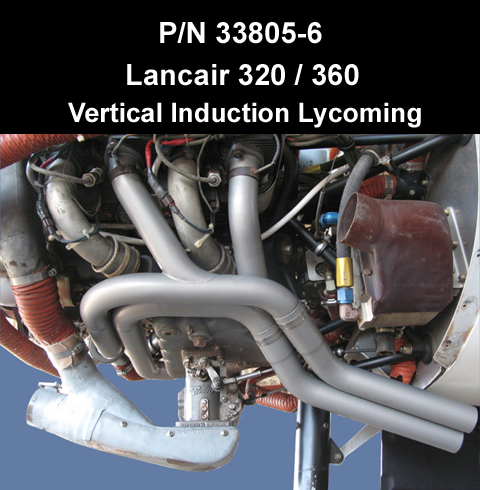

33805-6 Lancair 320 / 360 Crossover Exhaust system, with dual Tailpipes Includes Cabin heat exchanger (Fits Lycoming O-320 & O-360 with Vertical Induction, ALL 4 Intake tubes must be identical) (Optional studding to increase cabin heat add $95.00)




1695.00

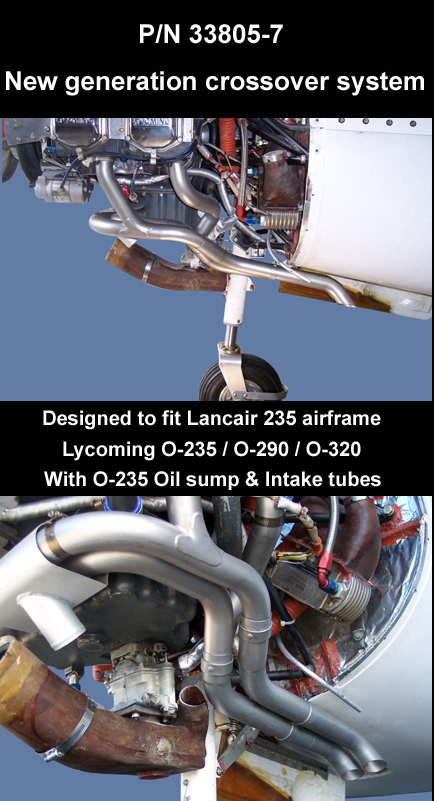

33805-7 Lancair 235 Crossover Exhaust system, with dual Tailpipes Includes Cabin heat exchanger (Fits Lycoming O-235 / O-290 / O-320 Vertical Induction engines with O-235 Oil Sump & Intake tubes. Shown with optional 45 degree turn outs installed on tailpipes. This system replaces the OEM 235 design. (WARNING this alternate exhaust system requires modifying the lower cowl to accommodate the outboard tube) (Carb Heat Assembly not included)




1895.00

33806
Exhaust Manifolds Y-Style L/H & R/H Continental E-225

REF.

1500.00

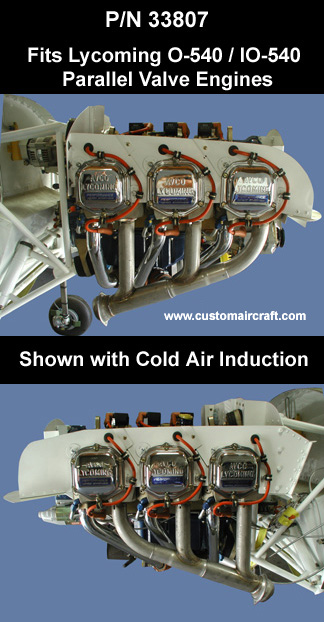

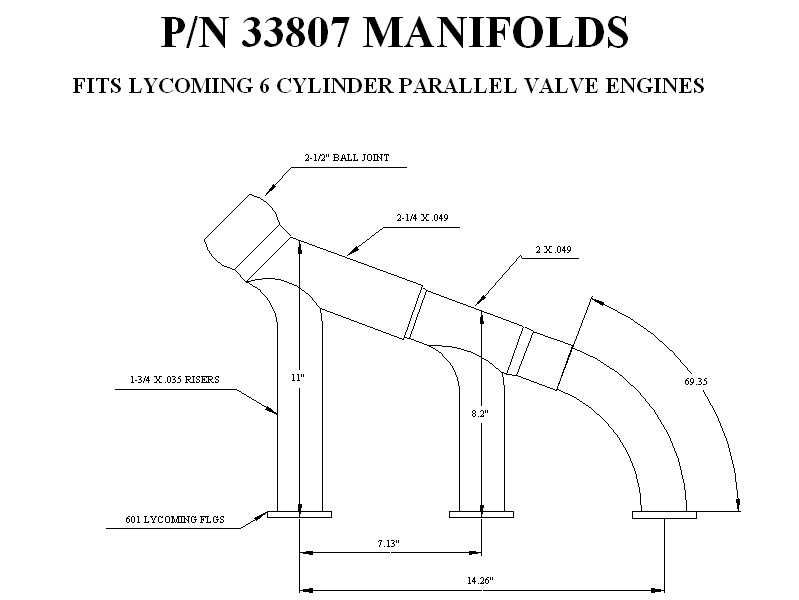

33807
Exhaust Manifolds Y-Style L/H & R/H Lycoming 0-540 & IO-540 (Parallel valve engine) Manifolds shown installed on IO-540 with cold air induction


REF.

DWG.

1500.00
33807-1
Rihn DR 109 One Design Exhaust Manifolds Y-Style L/H & R/H With Custom 2 1/2" Diameter Tailpipes (Parallel valve engine)


REF.

1995.00

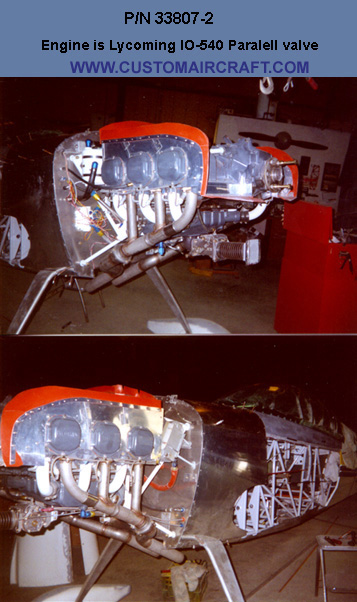

33807-2
Pitts S-1-11B Exhaust Manifolds Y-Style With Custom 2 1/2" Diameter Tailpipes (Same system as DR 109) (Parallel valve engine)


REF.

1995.00

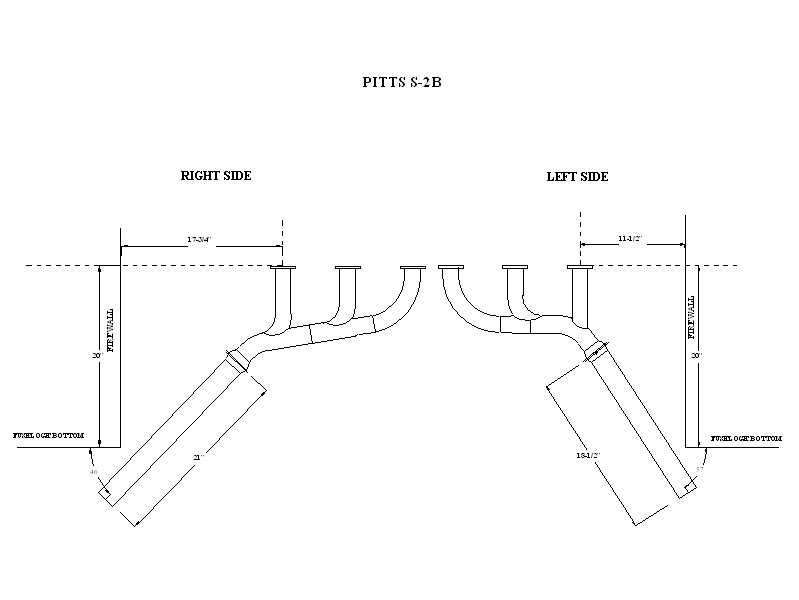

33807-3
Pitts S-2B Exhaust Manifolds Y-Style ( Includes Custom 2 1/4" Diameter Tailpipes) (Parallel Valve Engine)

REF.

 DWG.

1995.00

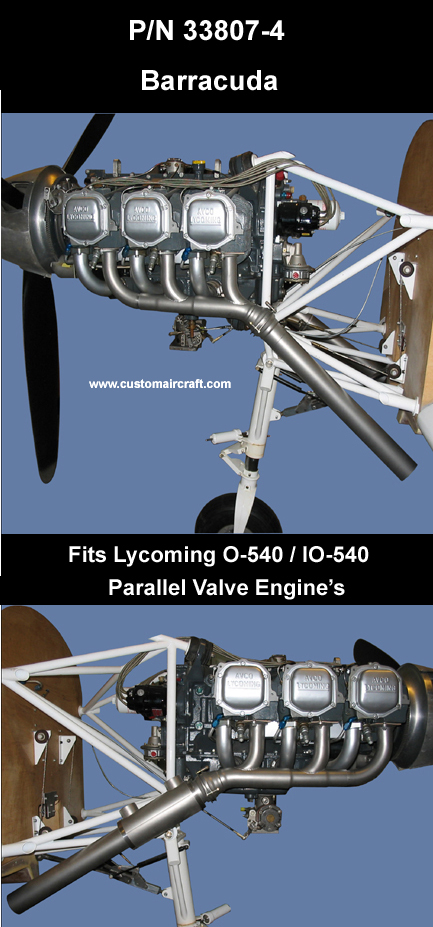

33807-4
Barracuda Left Hand & Right Hand manifolds with Tailpipes & Cabin heat shroud Fits Lycoming 6 Cylinder (Parallel Valve Engine) (Optional studding to increase cabin heat output add $95.00)


REF.

1895.00

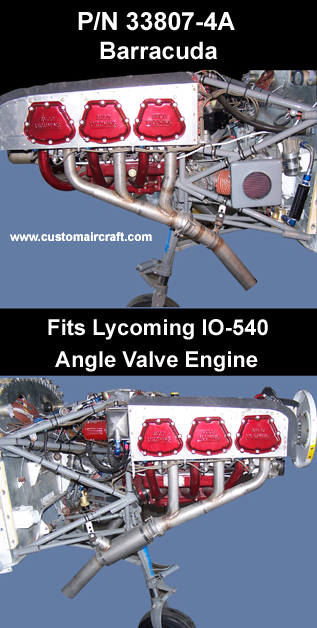

33807-4A
Barracuda Left Hand & Right Hand manifolds with Tailpipes & Cabin heat shroud Fits Lycoming 6 Cylinder (Angle Valve Engine) (Optional studding to increase cabin heat output add $95.00)


REF.

1995.00

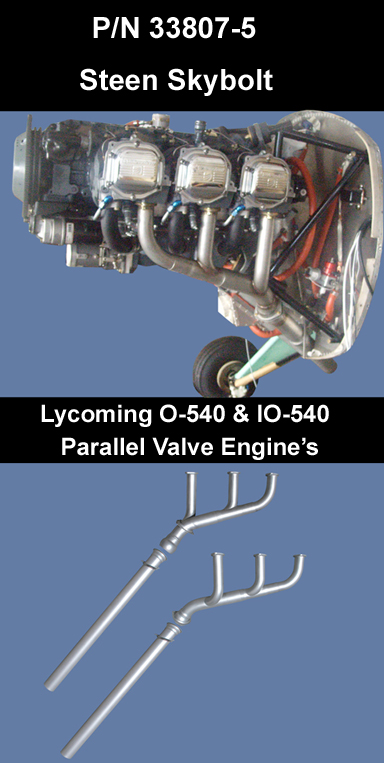

33807-5
Steen Skybolt Exhaust Manifolds Y-Style ( Includes 2 1/2" Diameter Tailpipes) (Parallel Valve Engine)


REF.

1795.00

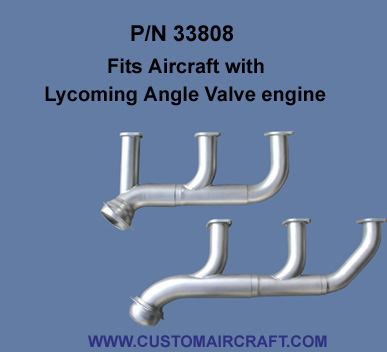

33808
Exhaust Manifolds Y-Style L/H & R/H Lycoming IO-540 (Angle Valve Engine)


REF.

DWG.

1500.00

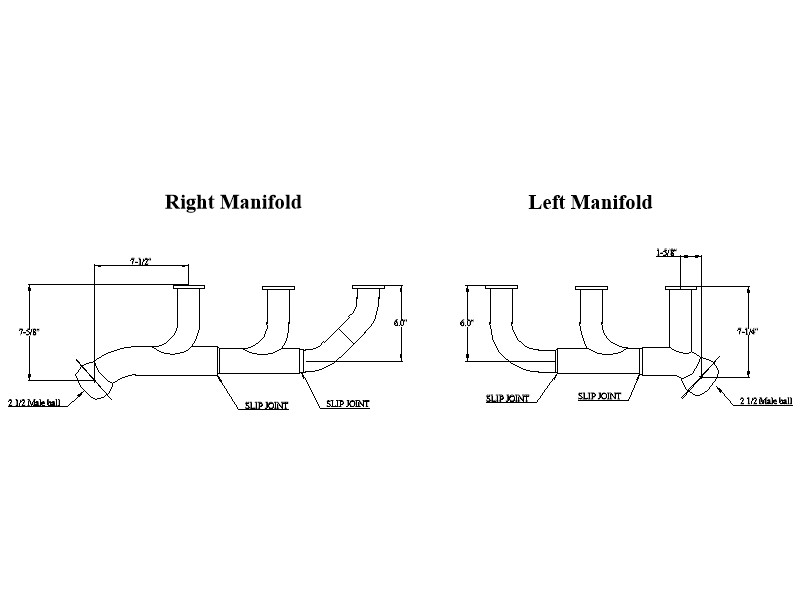

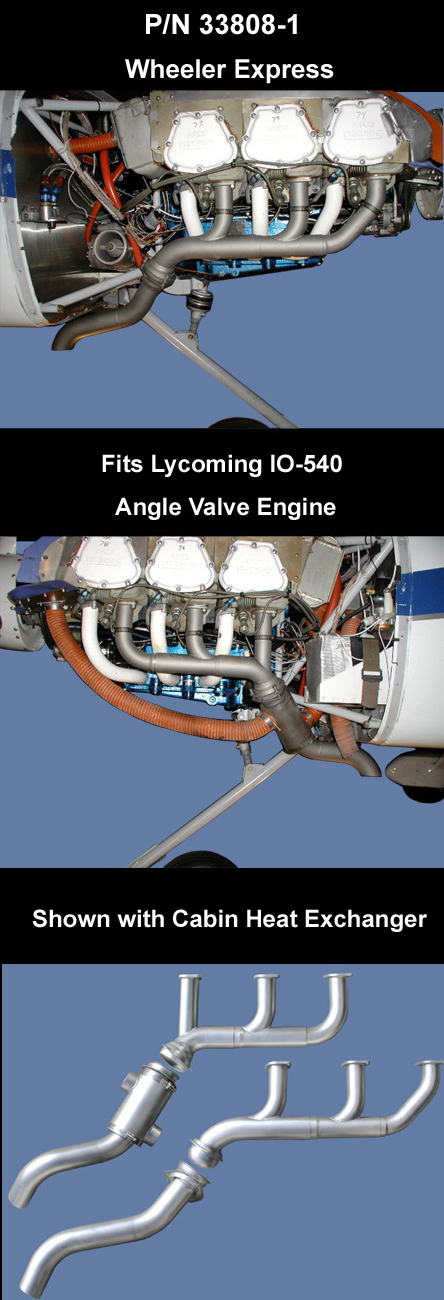

33808-1 Express Aircraft Exhaust Manifolds Y-Style Lycoming IO-540 (Angle Valve Engine) (Includes Custom 2-1/4" Tailpipes With Cabin heat shroud)(Optional studding to increase cabin heat add $95.00)


REF.


1995.00

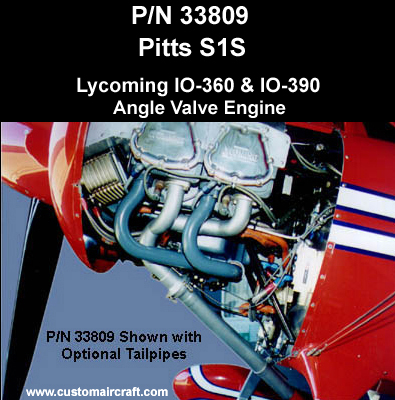

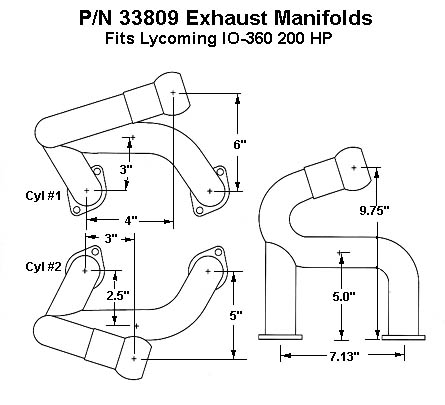

33809
Pitts S-1S Exhaust Manifolds Y-Style Lycoming IO-360 200 HP & IO-390 210 HP (FITS FWD FACING SERVO ONLY) (24" TAILPIPES NOT INCLUDED)


REF.

DWG.

1395.00

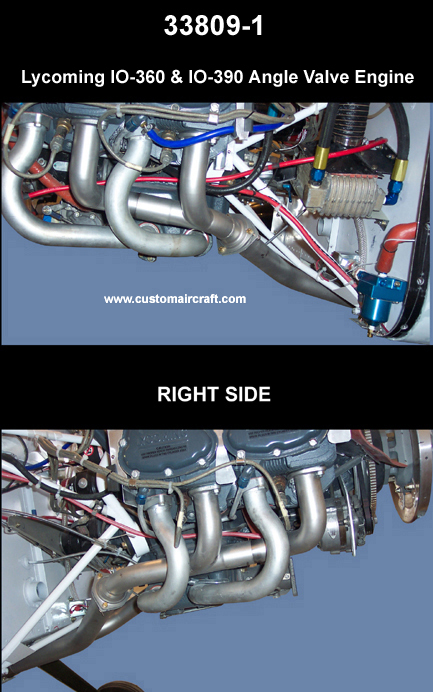

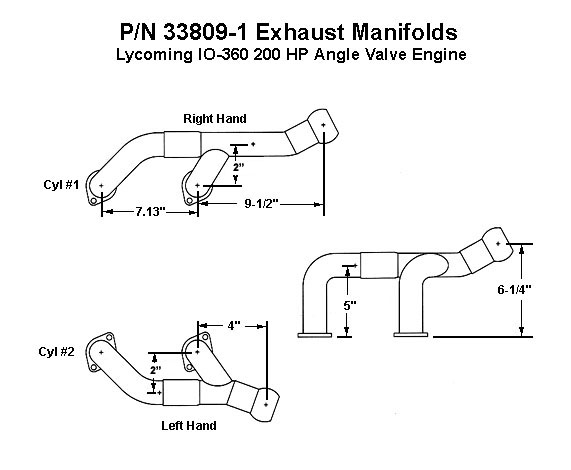

33809-1
Exhaust Manifolds Y-Style Lycoming IO-360 200 HP & IO-390 210 HP (FITS FWD FACING SERVO ONLY) (TAILPIPES NOT INCLUDED)


 REF.

 DWG.

 1395.00

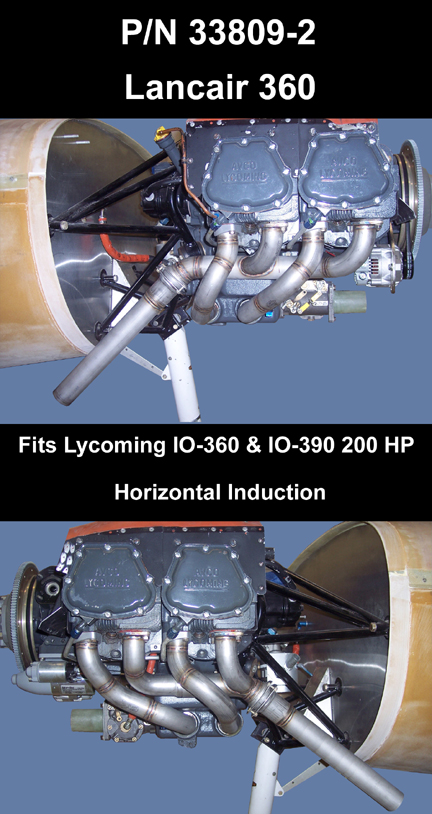

33809-2
Lancair 360 Exhaust Manifolds Y-Style Lycoming IO-360 200 HP & IO-390 210 HP (FITS FWD FACING SERVO ONLY) (18" Tailpipes included) (Shown with optional custom intake tubes to allow stock cowling without modification)


REF.

1595.00

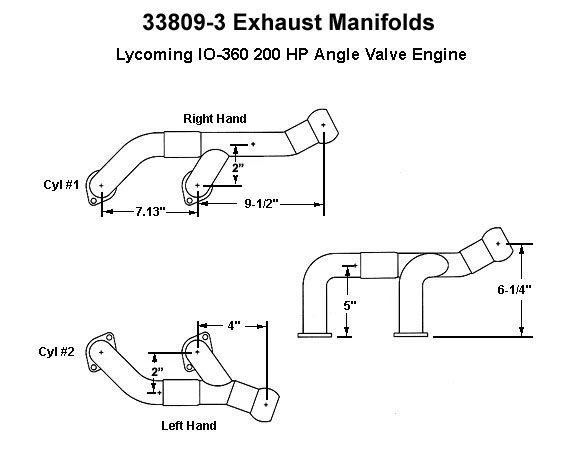

33809-3
Mustang II Exhaust Manifolds Y-Style Lycoming IO-360-A Series 200 HP & IO-390-A Series 210 HP (FITS FWD FACING SERVO ONLY) (Tailpipes included) (FITS ''A'' SERIES ENGINES ONLY)


REF.

DWG.

1695.00

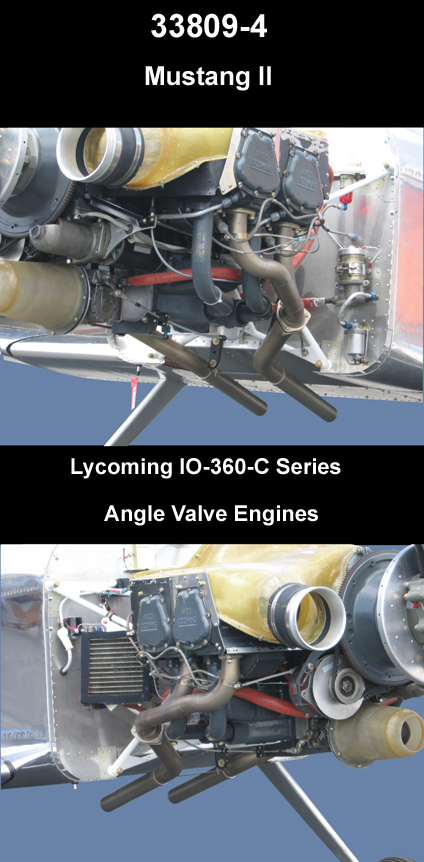

33809-4
Mustang II Exhaust Manifolds Y-Style Lycoming IO-360-C Series 200 HP & IO-390-C Series 210 HP (Fits AFT FACING SERVO ONLY) (Tailpipes included)



1695.00

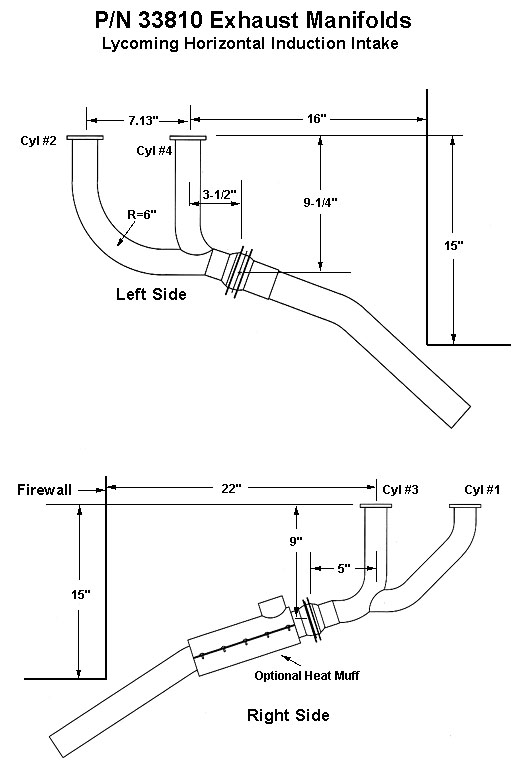

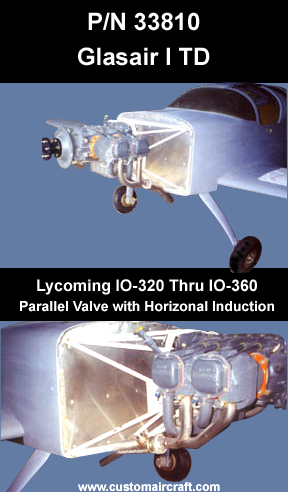

33810
Glasair 1TD Exhaust Manifolds Y-Style Lycoming O-235 through O-360 (Aircraft shown has 4" longer than stock motor mount) (Cabin heat exchanger optional add $250.00)


REF.

 DWG.

1050.00

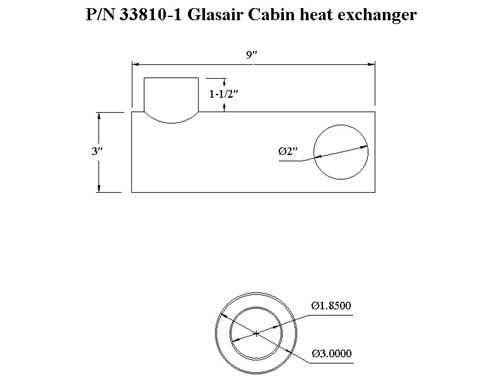

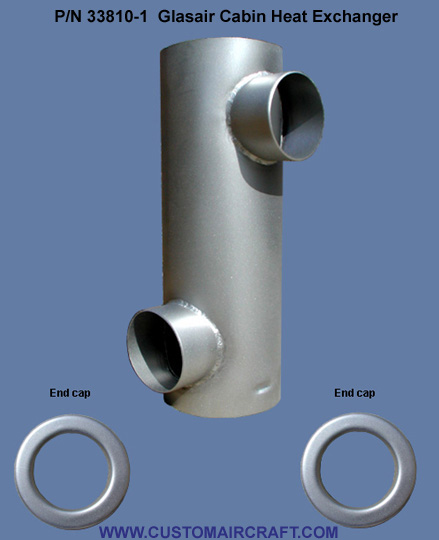

33810-1 Glasair Optional Heat Exchanger Includes Installation




DWG.

 250.00

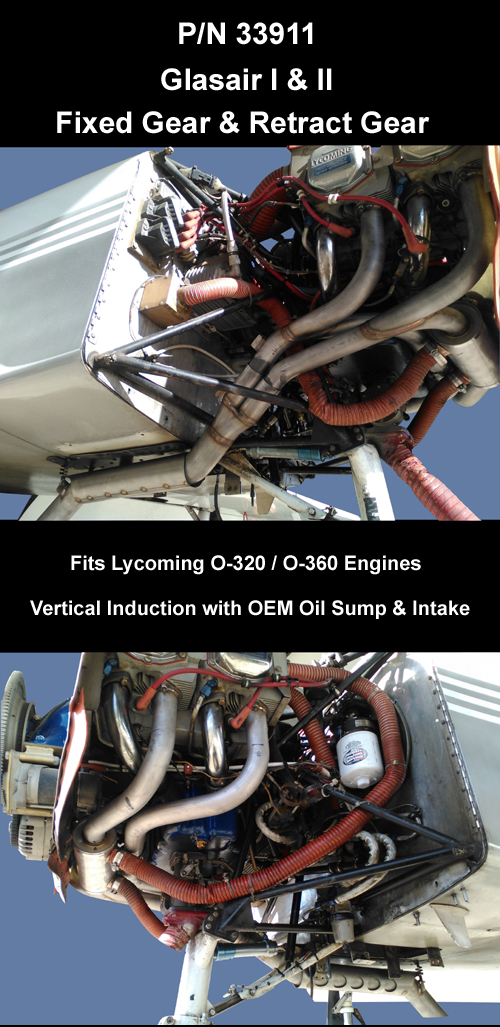

33911
Glasair I & II Crossover Exhaust System Lycoming O-320 & O-360 (Vertical Induction Intake)


REF.

1995.00

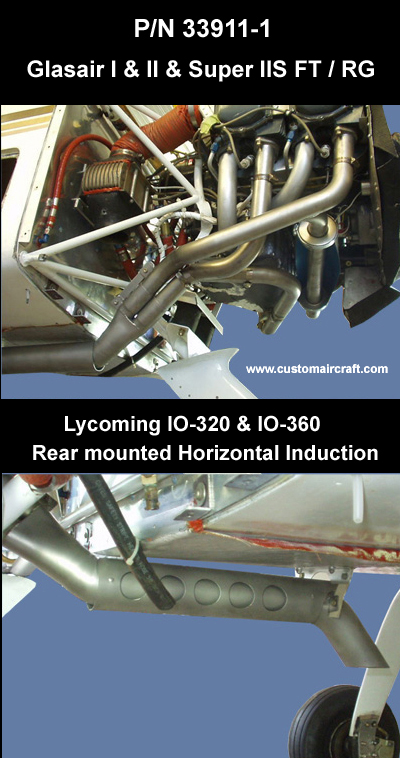

33911-1
Glasair I & II & Super II RG Crossover Exhaust System Lycoming IO-360 180 HP (Horizontal Induction Intake)


REF.

1895.00
33911-2 Glasair I & II Crossover Exhaust System Lycoming IO-360 200 HP (Horizontal Induction Intake) (CHECK FIT IF FOR RG)


REF.


1995.00

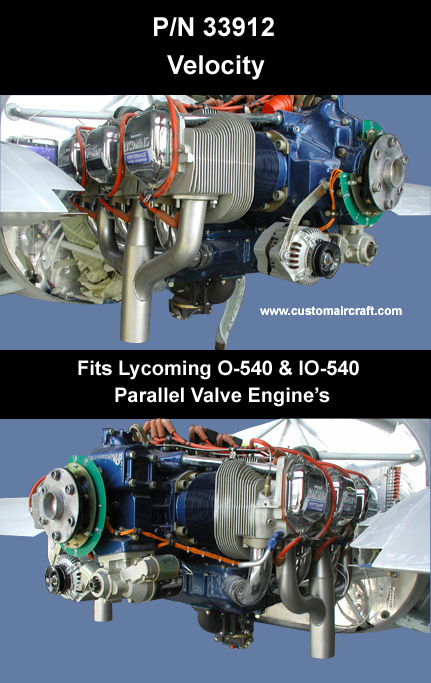

33912 Velocity Y-Style Manifolds fits Lycoming 6 cylinder parallel valve engines


REF.


1250.00

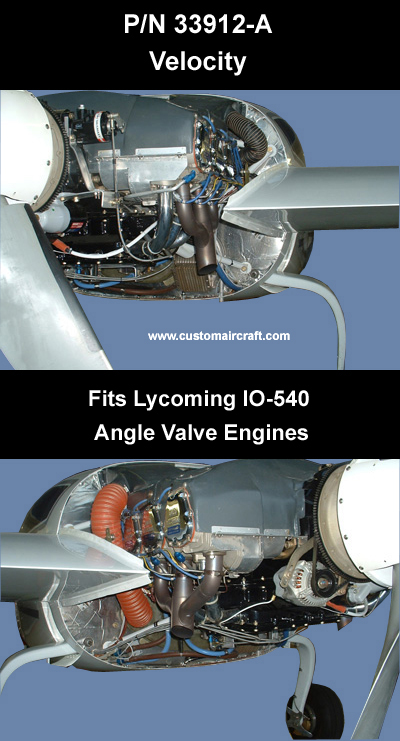

33912-A Velocity Y-Style Manifolds fits Lycoming 6 cylinder angle valve engines


REF.


1250.00

33912-C Velocity Y- Style Manifolds fits Continental O-470 / IO-520 / IO-550 engines

1250.00

33912-4 Velocity 4-Pipe Inside Cowl Exhaust System (FITS LYCOMING IO-360 Series 200 HP ENGINE ONLY)




1495.00

33913 Murphy Super Rebel Exhaust Manifolds with dual Mufflers one with heat exchanger & Tailpipes (Fits Continental O-470 Thru IO-550 Engines)


REF.


1895.00

33913-1 Murphy Super Rebel Exhaust Manifolds with dual Mufflers one with heat exchanger & Tailpipes (Fits Lycoming 6 Cylinder Parallel Valve Engines)
REF.


1895.00

33913-2 Murphy Super Rebel Exhaust Manifolds with dual Mufflers one with heat exchanger & Tailpipes (Fits Lycoming 6 Cylinder Angle Valve Engines)
REF.


1895.00

33914 Gyrocopter Headers Dual Manifolds With Pin Clamps to attach Optional Super Trap Mufflers (Fits Subaru 2.2 Engines)




995.00
