EXHAUST SYSTEM COMPONENTS
EXPERIMENTAL AIRCRAFT

Please read Terms and Conditions

www.customaircraft.com

$150.00 Minimum order

Pricing subject to change due to premium 321 SS metals market instability

321 STAINLESS STEEL

$12.50 CA Hazardous waste fee will be added to each invoice

P/N

DESCRIPTION

TYPE
DRAWING

PRICE

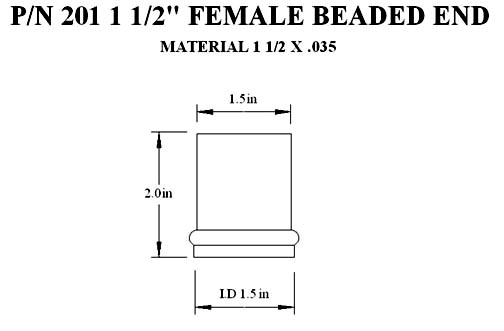

201
Beaded end 1 1/2"
Female


DWG.

44.00

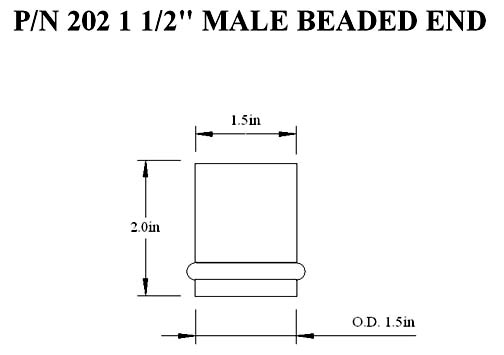

202
Beaded end 1 1/2"
Male


DWG.

44.00

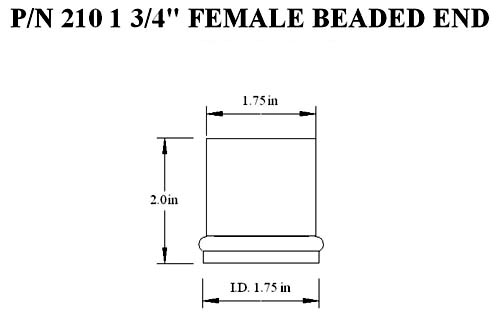

210
Beaded end 1 3/4"
Female


DWG.

45.50

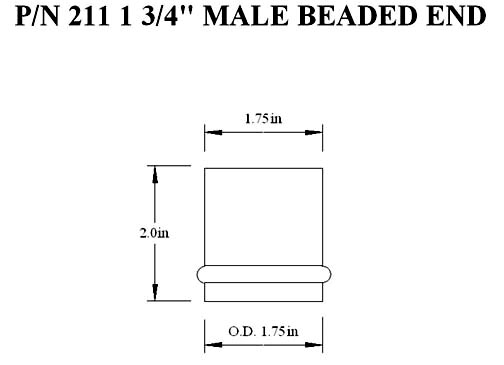

211
Beaded end 1 3/4"
Male


DWG.

45.50

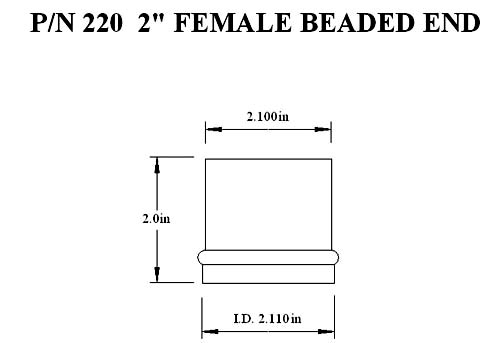

220
Beaded end 2"
Female


DWG.

46.25
221
Beaded end 2"
Male


DWG.

46.25

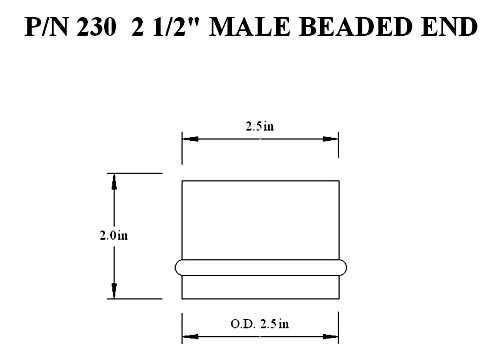

230
Beaded end 2 1/2"
Male


DWG.

49.50

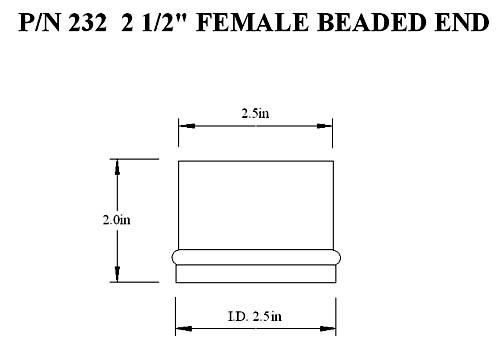

232
Beaded end 2 1/2"
Female


DWG.

49..50

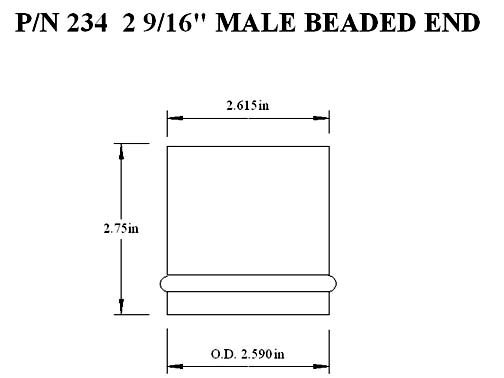

234
Beaded end 2 5/8"
Male


DWG.

51.75

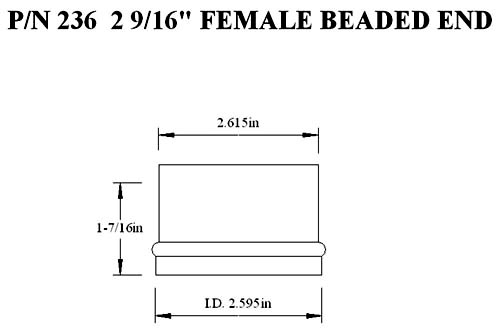

236
Beaded end 2 5/8"
Female


DWG.

51.75

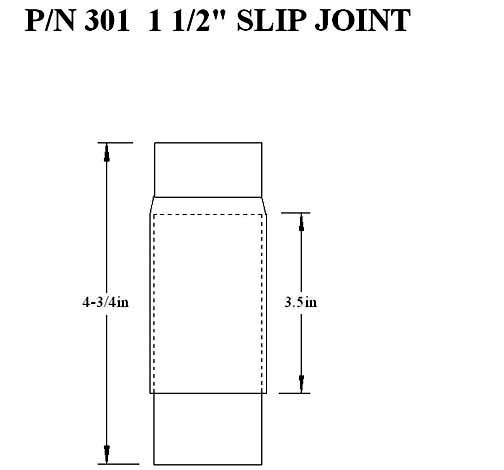

301
Slip joint 1 1/2"




DWG.

83.50

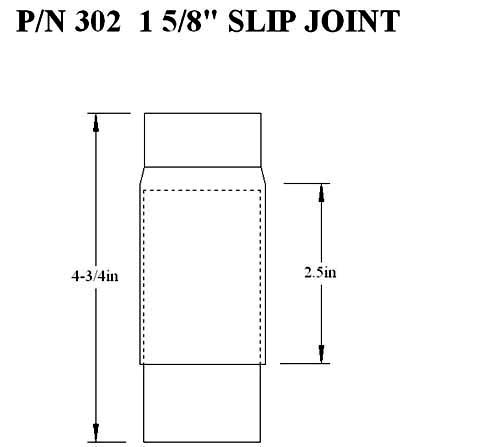

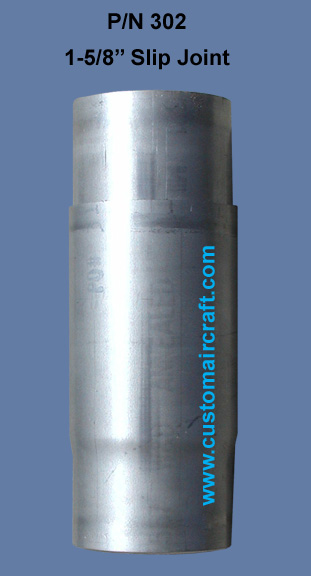

302
Slip joint 1 5/8"




DWG.

89.25

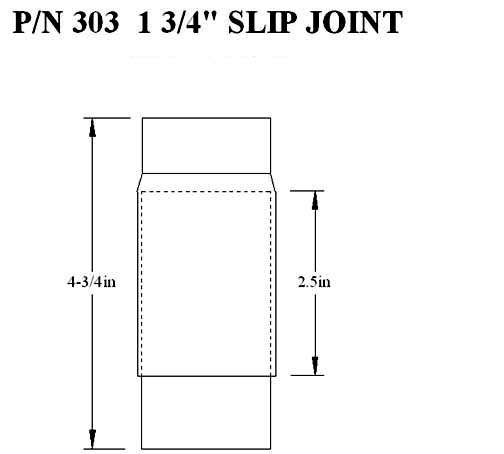

303
Slip joint 1 3/4"




DWG.

84.50

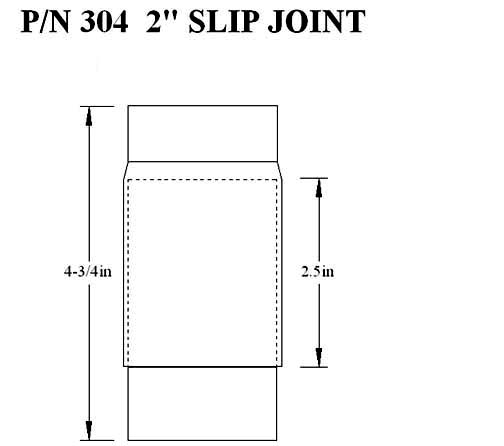

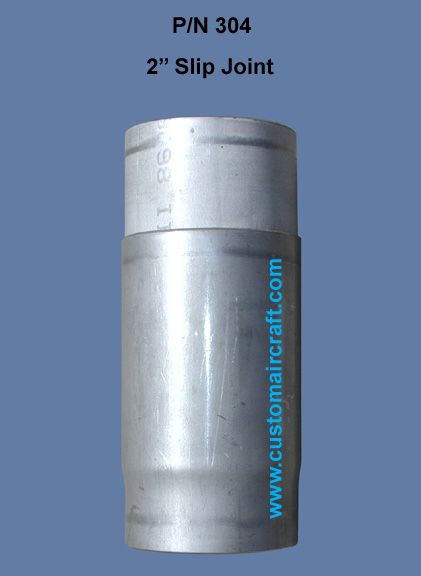

304
Slip joint 2"




DWG.

90.50

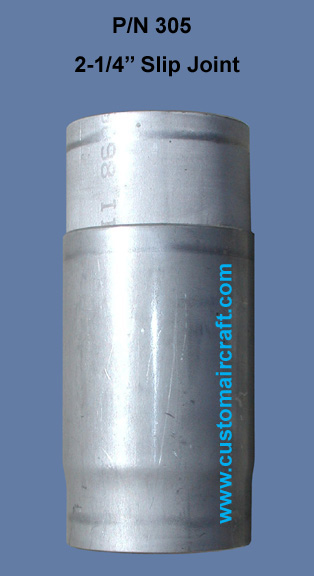

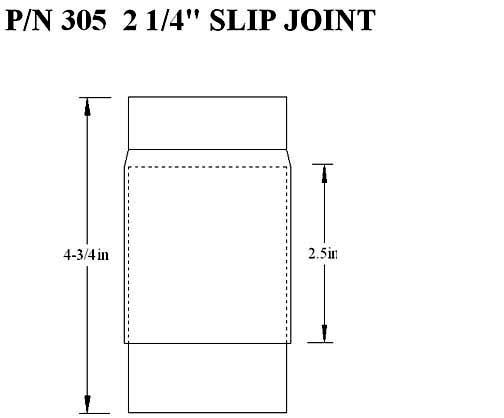

305
Slip joint 2 1/4"




DWG.

126.75

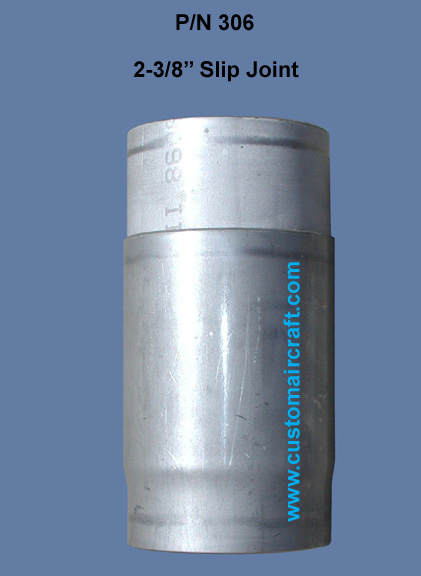

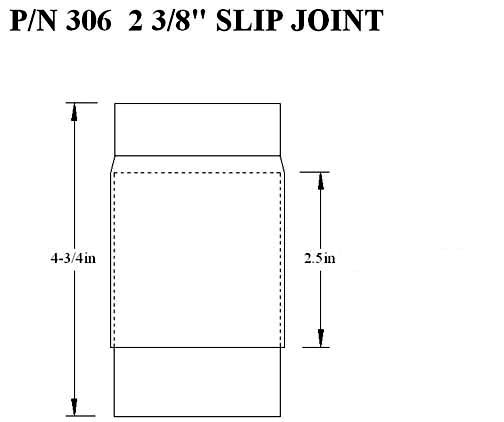

306
Slip joint 2 3/8"




DWG.

162.50

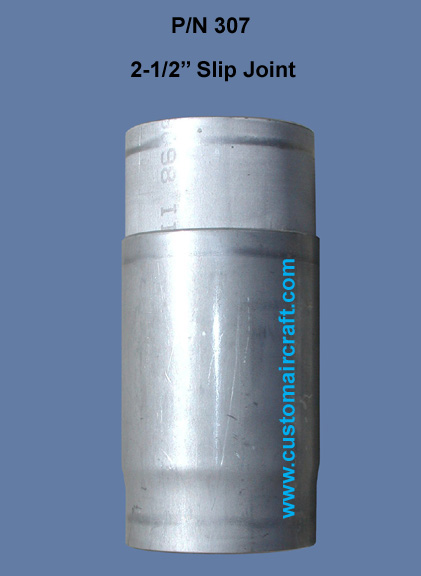

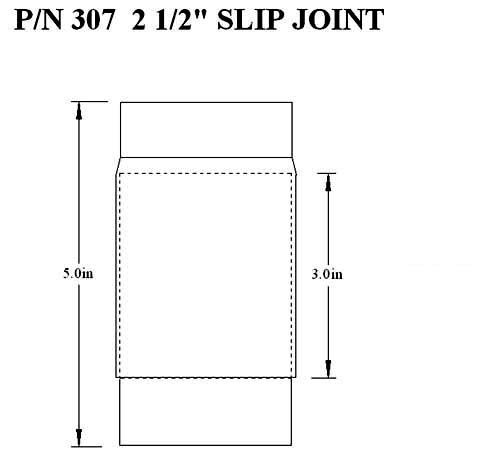

307
Slip joint 2 1/2"




DWG.

125.50

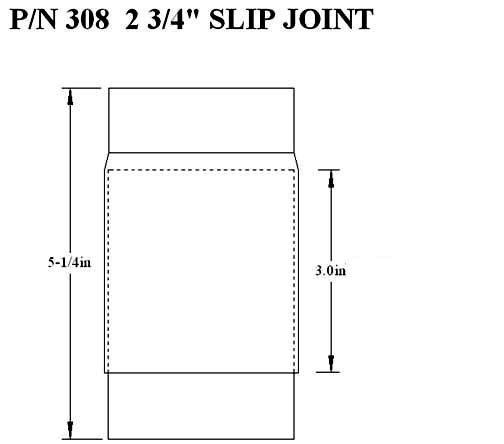

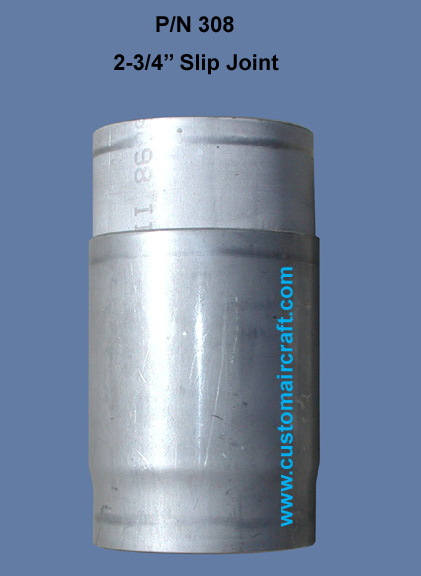

308 Slip joint 2 3/4"


DWG.

175.00

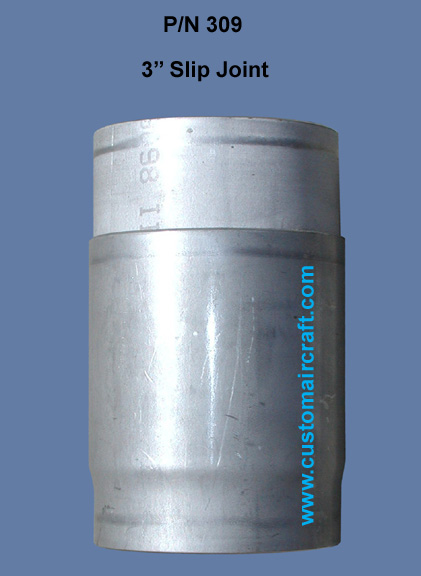

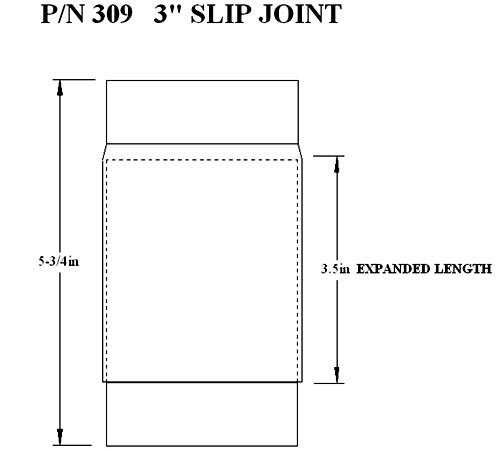

309 Slip joint 3"


DWG.

195.00

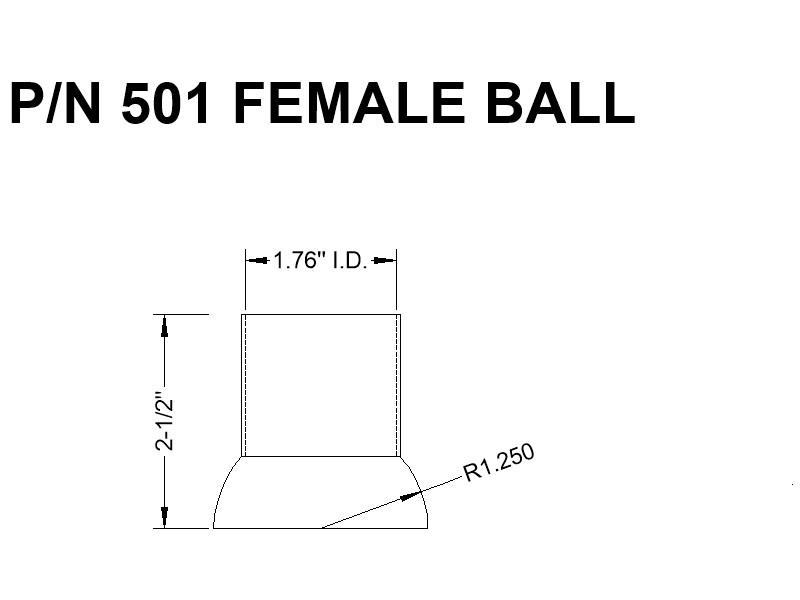

501
Ball joint 1 3/4"
Female


DWG.

60.00

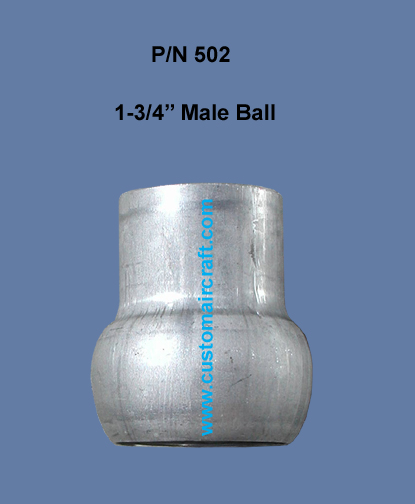

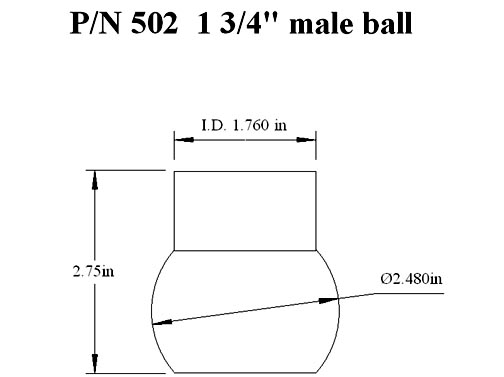

502
Ball joint 1 3/4"
Male


DWG.

55.00

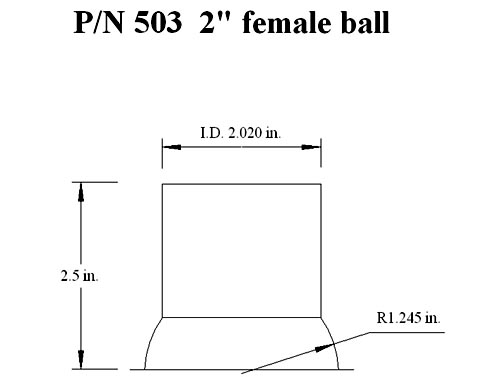

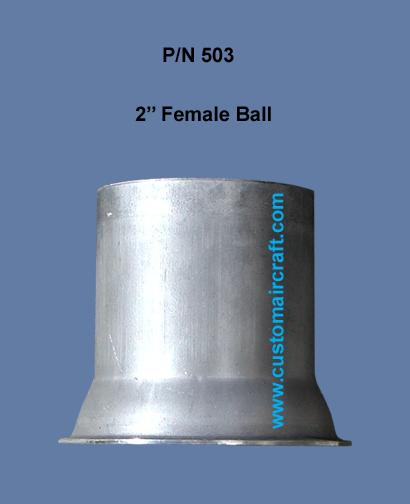

503
Ball joint 2"
Female


DWG.

60.00

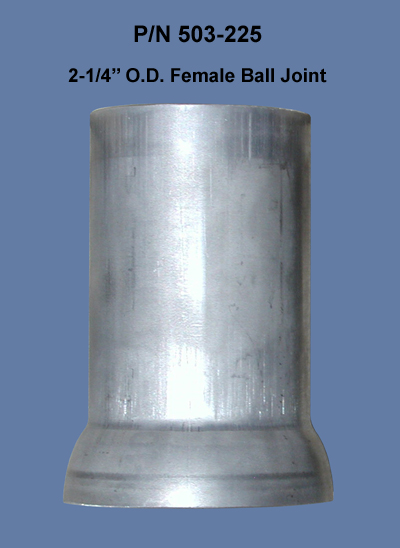

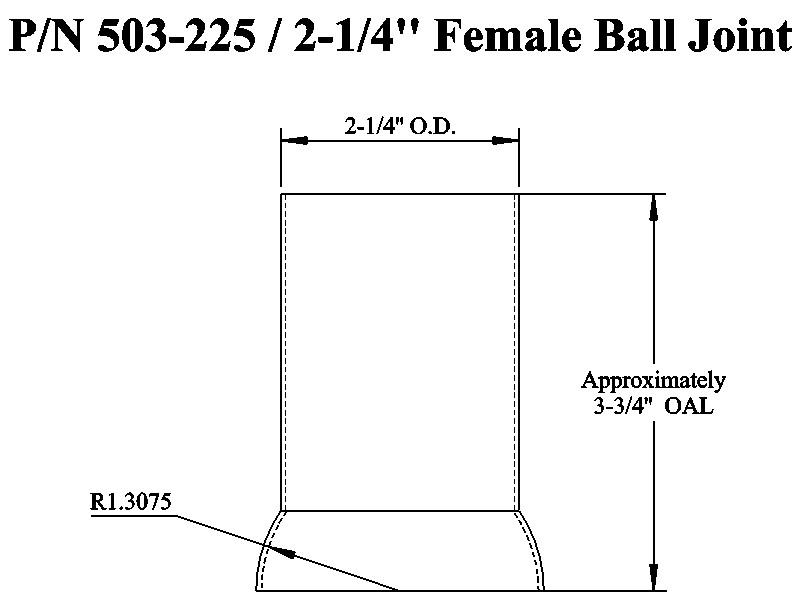

503-225
Ball joint 2-1/4''
Female


DWG

87.00

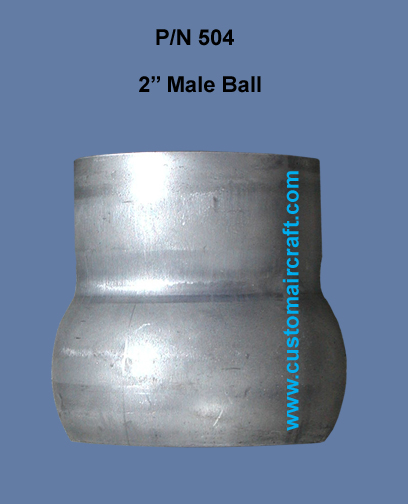

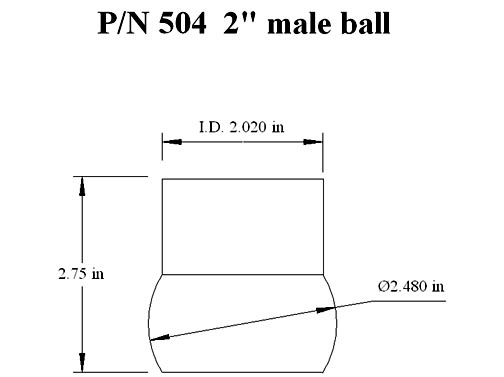

504
Ball joint 2"
Male


DWG.

57.00

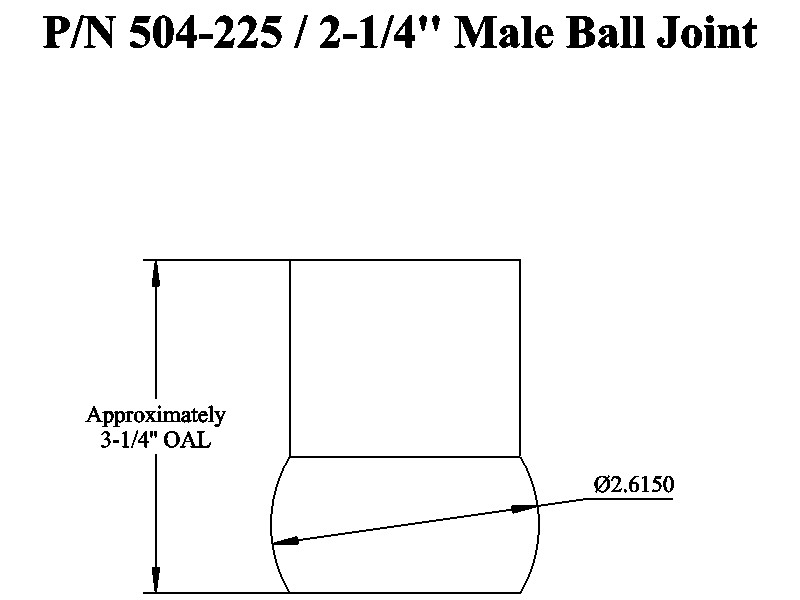

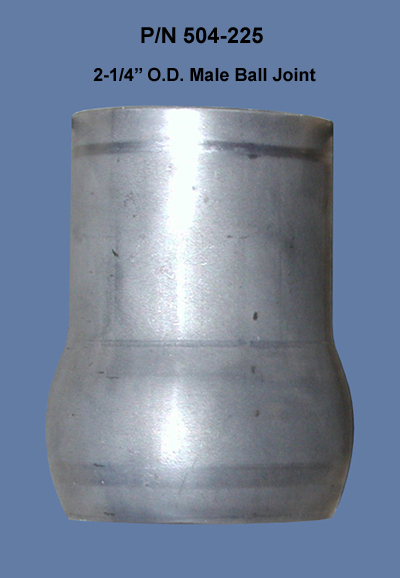

504-225
Ball joint 2-1/4''
Male


DWG

87.00

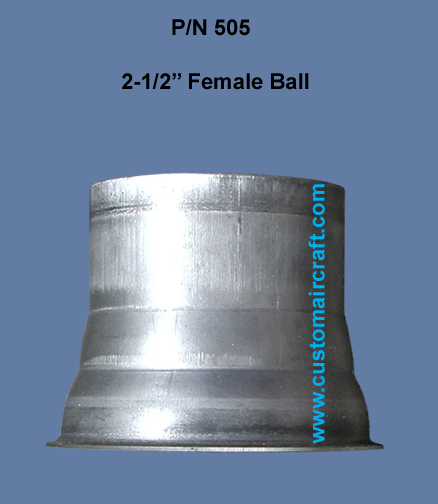

505
Ball joint 2 1/2"
Female


DWG.

90.00

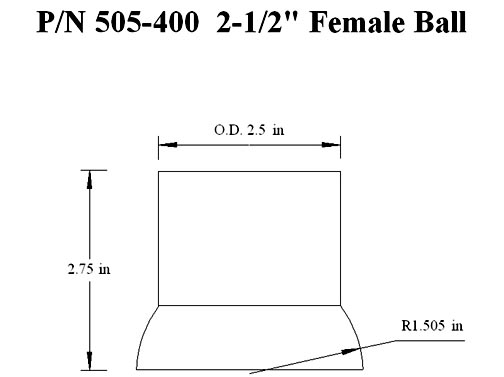

505-400
Ball joint 2 1/2"
Female


DWG.

90.00

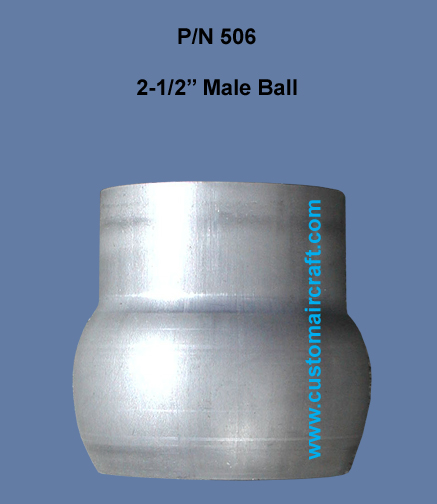

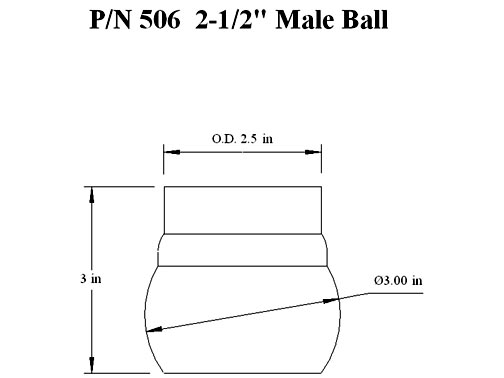

506
Ball joint 2 1/2"
Male


DWG.

80.00

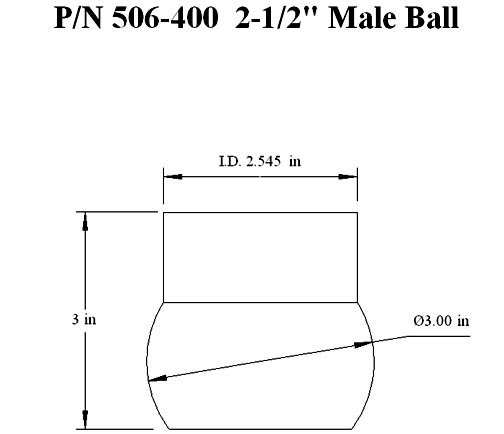

506-400
Ball joint 2 1/2"
Male


DWG.

80.00

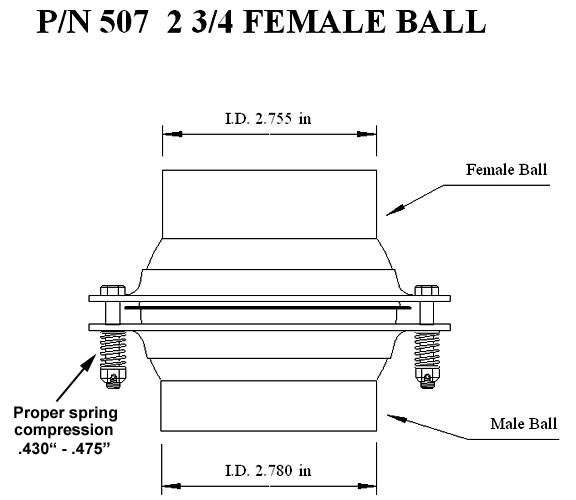

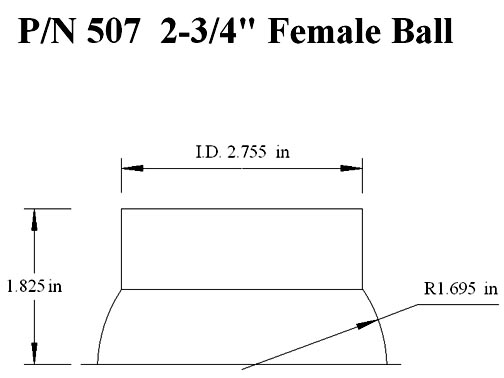

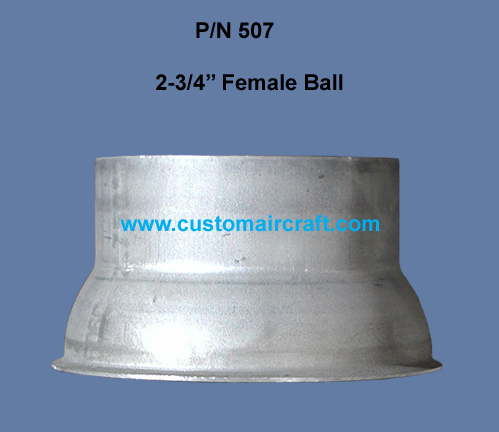

507
Ball joint 2 3/4"
Female


DWG.

110.00

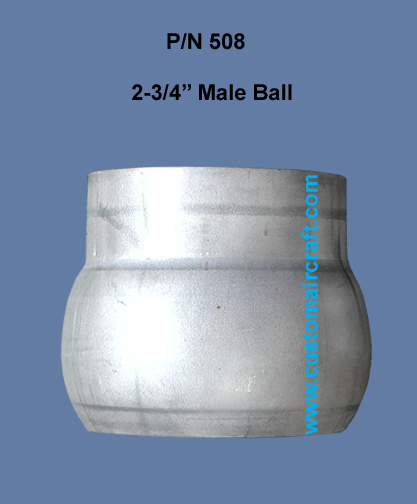

508
Ball joint 2 3/4"
Male


DWG.

98.00
509
Ball joint flange 1 3/4" & 2"
Female


DWG.

19.25

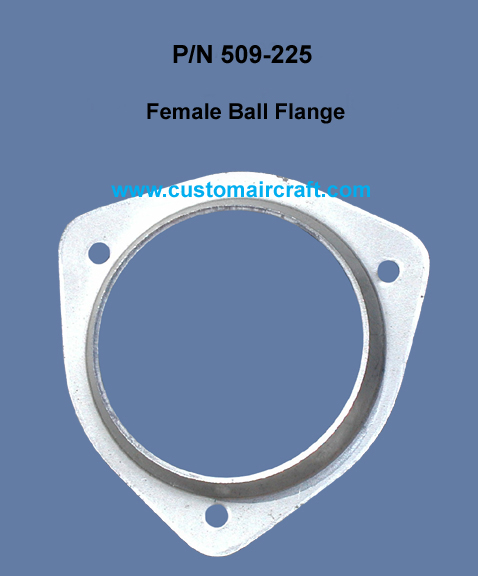

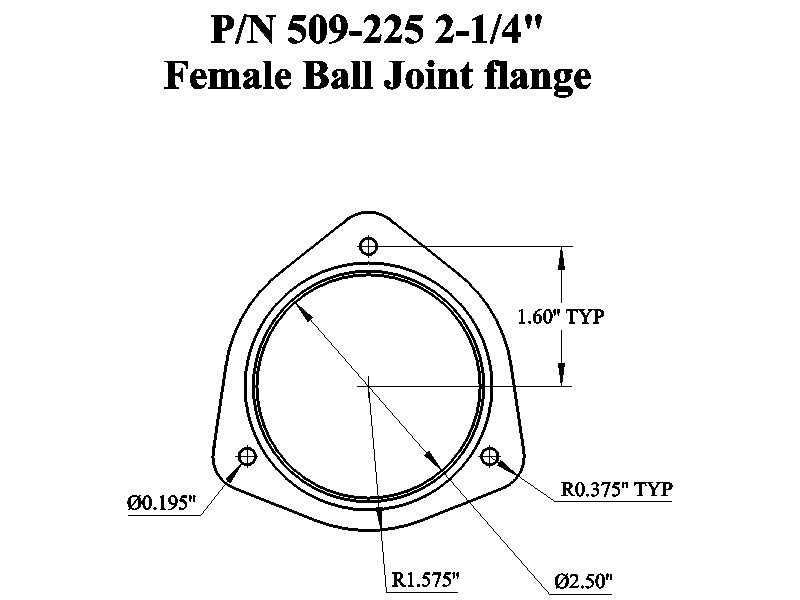

509-225
Ball joint flange 2-1/4''
Female


DWG.

26.00

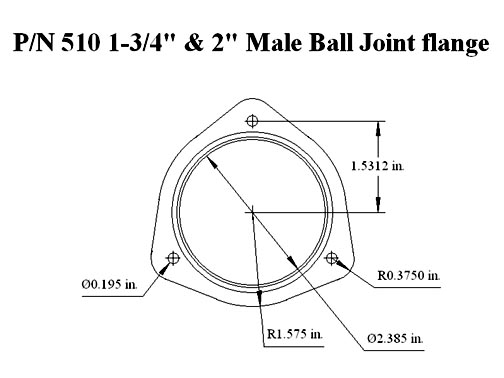

510
Ball joint flange 1 3/4" & 2"
Male


DWG.

19.25

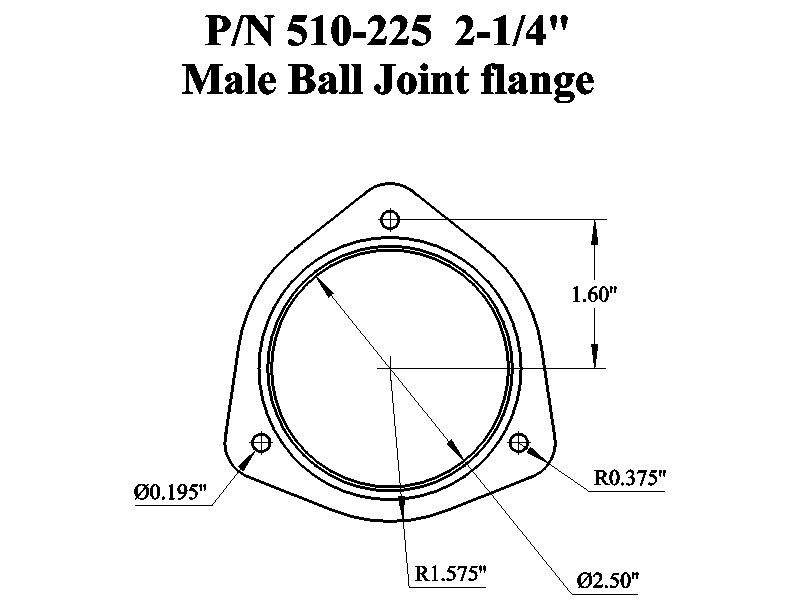

510-225
Ball joint flange 2-1/4''
Male


DWG.

26.00

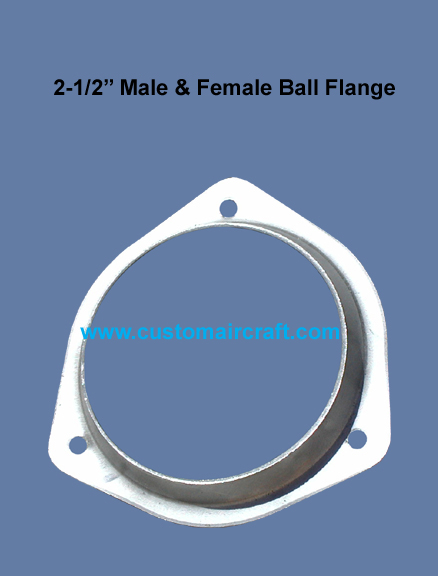

511
Ball joint flange 2 1/2"
Female


DWG.

20.75

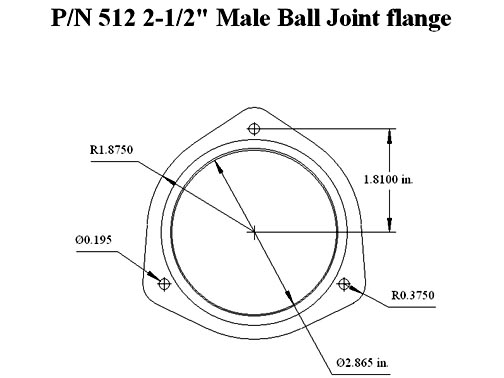

512
Ball joint flange 2 1/2"
Male


DWG.

20.75

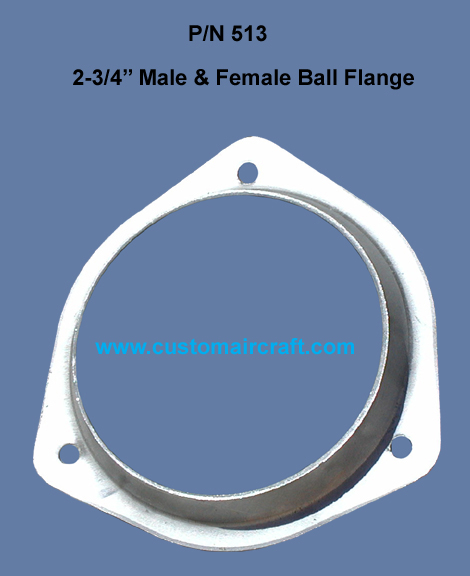

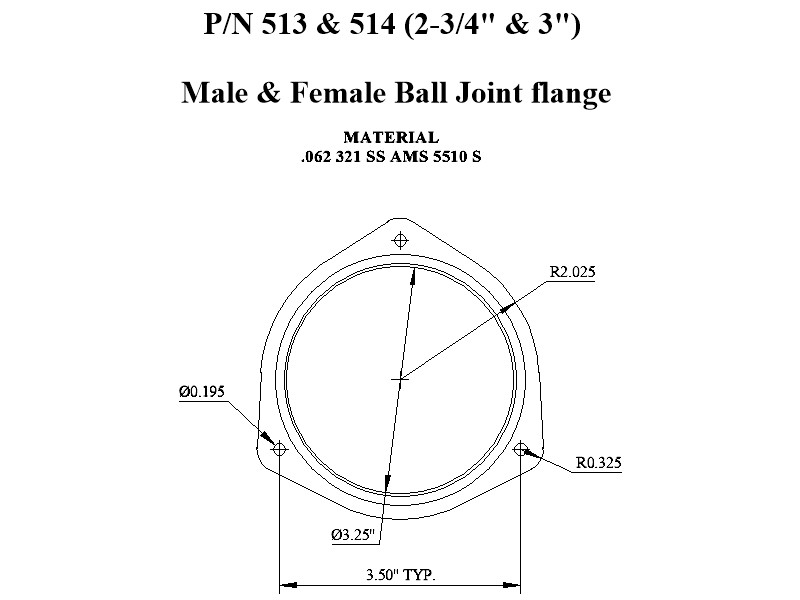

513
Ball joint flange 2 3/4"
Male / Female


DWG.

28.00
514
Ball joint flange 3"
Male / Female


DWG.

28.00

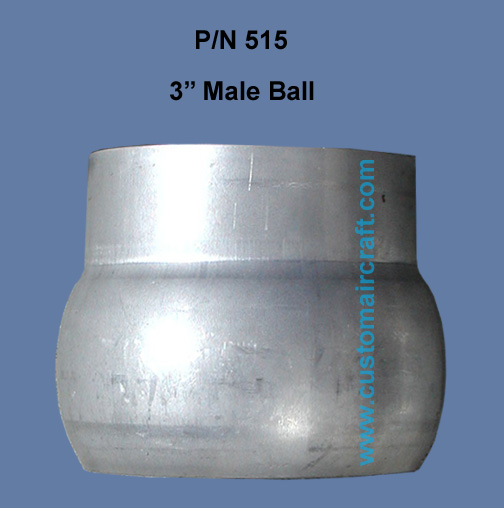

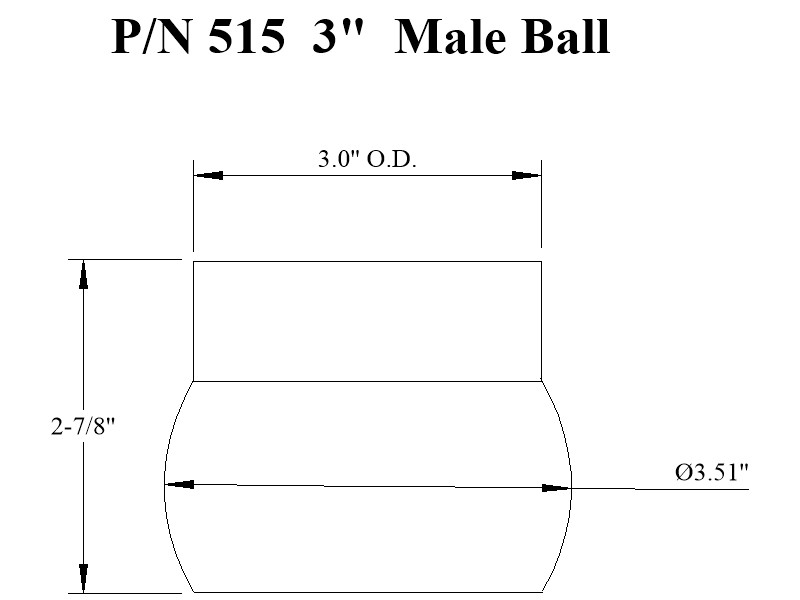

515 Ball Joint 3" Male


DWG.

115.00

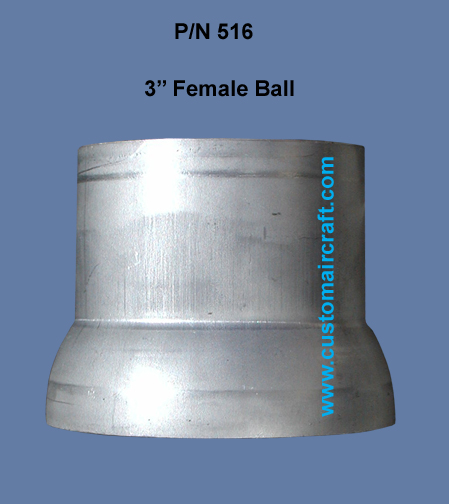

516 Ball Joint 3" Female


DWG.

115.00

33230
Ball joint assembly 1-3/4'' Inlet & 1-3/4'' Outlet

DWG.

150.00

33230-1
Ball joint assembly 1-3/4'' Inlet & 1-3/4'' Outlet (''Lap-over design'')


DWG.

80.00

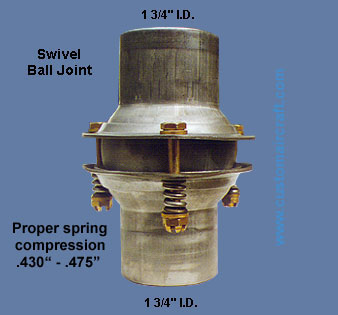

33231
Ball joint assembly 1-3/4" Inlet & 1-3/4" Outlet




DWG.

145.00

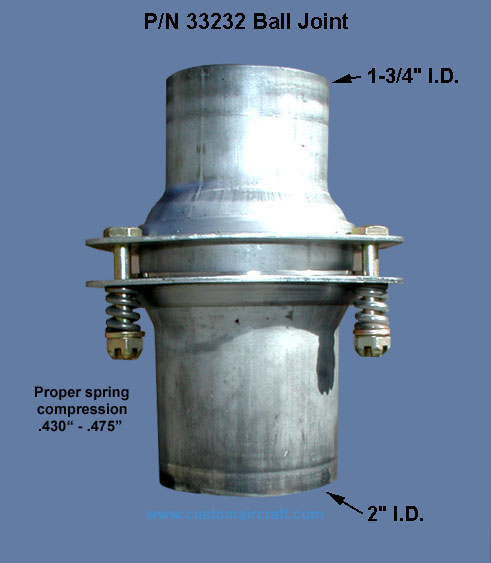

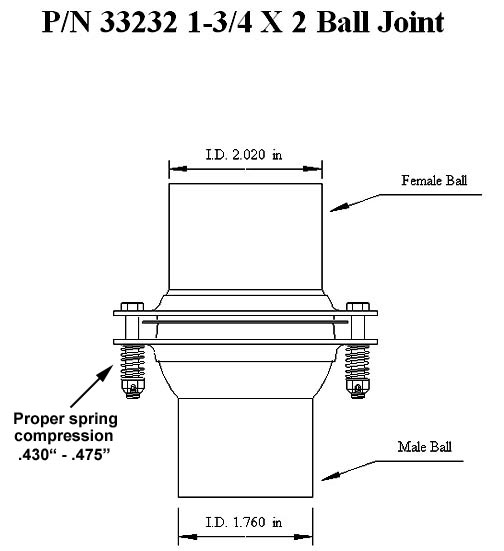

33232
Ball joint assembly 1-3/4" Inlet & 2" Outlet




DWG.

140.00

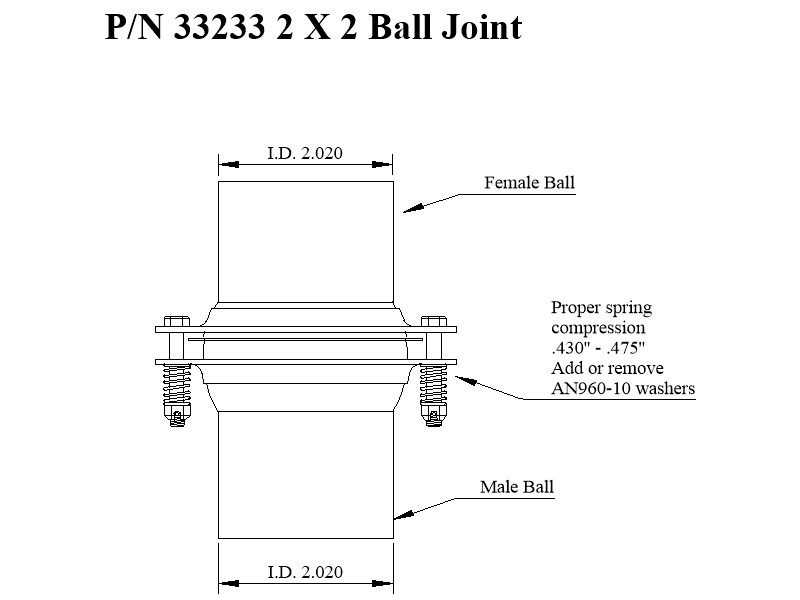

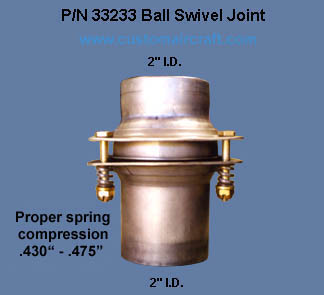

33233
Ball joint assembly 2" Inlet & 2" Outlet




DWG

145.00
33233-1
Ball joint assembly 2'' Inlet & 2'' Outlet (''Lap-over design'')


DWG.

95.00

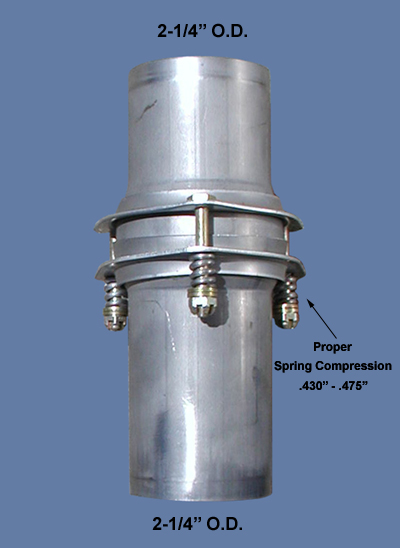

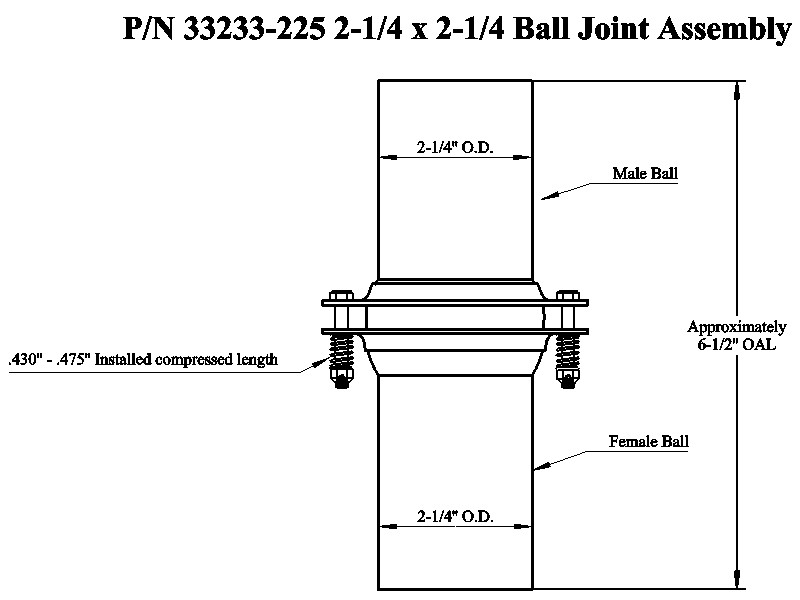

33233-225
Ball joint assembly 2-1/4'' Inlet & 2-1/4'' Outlet



 DWG

215.00

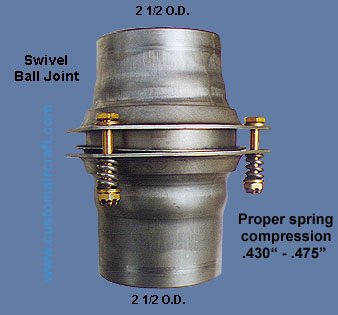

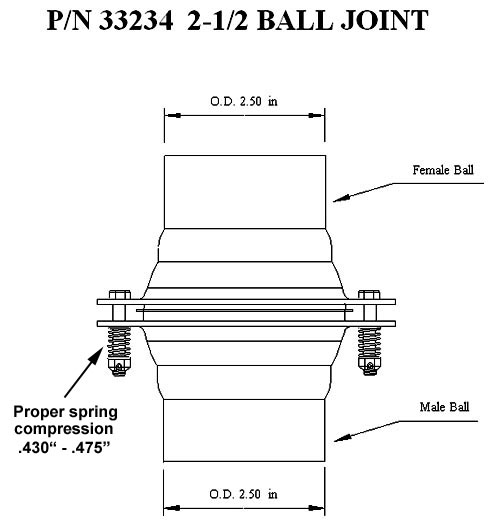

33234
Ball joint assembly 2-1/2" Inlet & 2-1/2" Outlet




DWG.

195.00

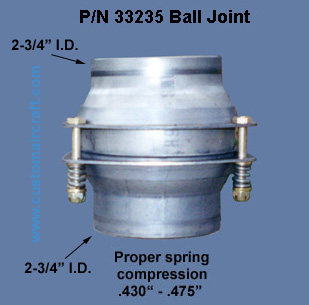

33235
Ball joint assembly 2-3/4" Inlet & 2-3/4" Outlet




DWG.

248.00

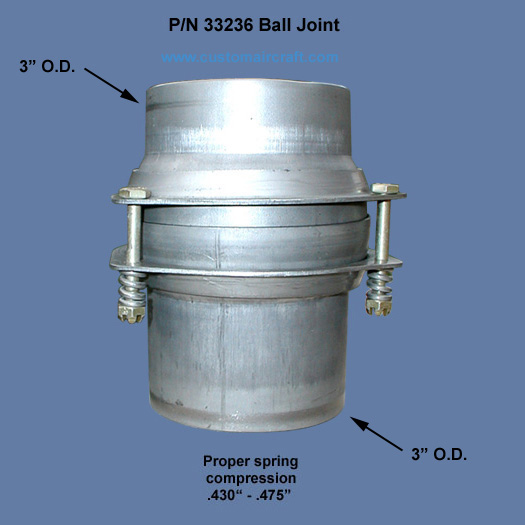

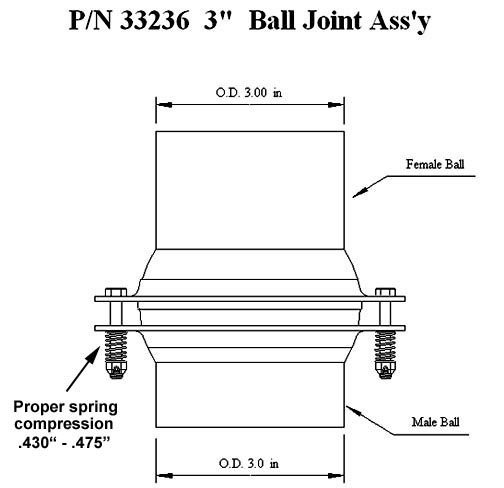

33236 Ball joint assembly 3" Inlet & 3" Outlet


DWG.

270.00

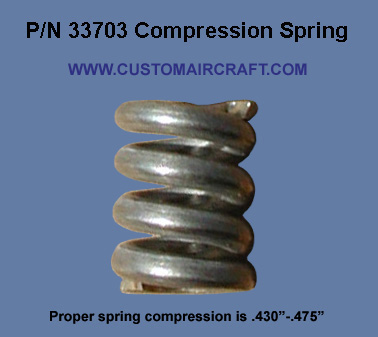

33703
Replacement Ball Joint Spring




5.75

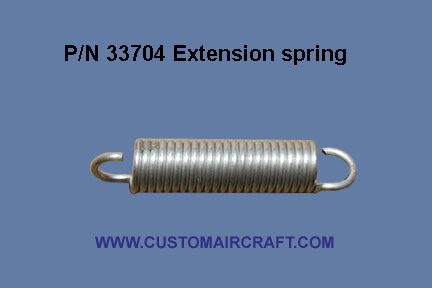

33704
Replacement Extension Spring




7.95

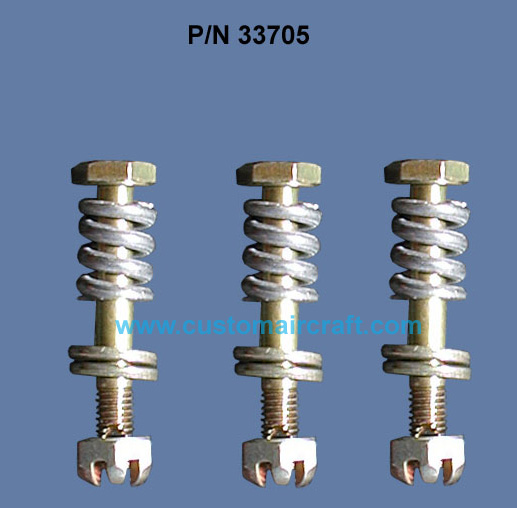

33705
Ball joint hardware kit (3) nuts, bolts, washers, springs





21.00
33706
Lycoming Cylinder Stud OEM P/N 31C-12 5/16''-18 TPI

7.50
33707
Lycominng Nut 5/16 x 18, Flat Washer, Internal lock washer

2.75

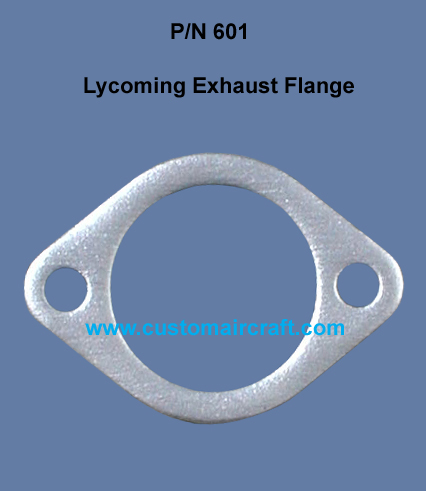

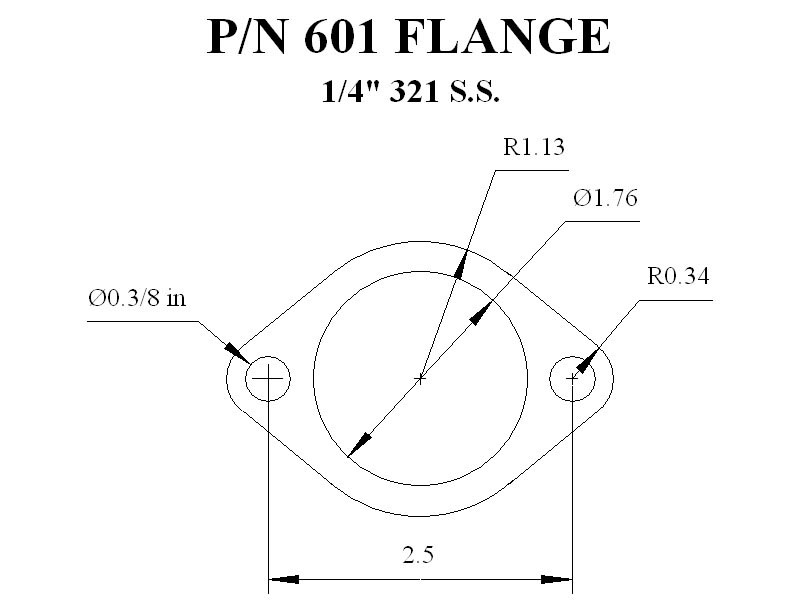

601
Exhaust flange Lycoming 0-233 thru IO-540 Parallel valve engines (1-3/4" I.D.)
.250


DWG.

17.50

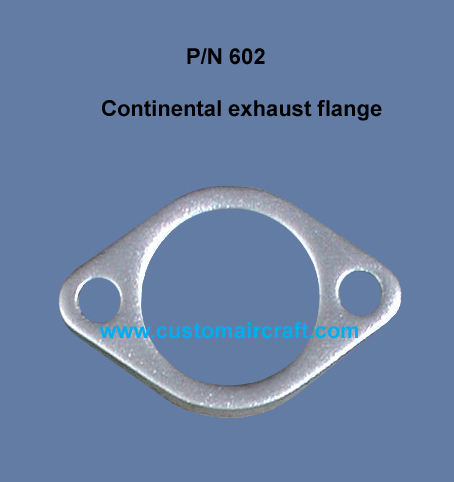

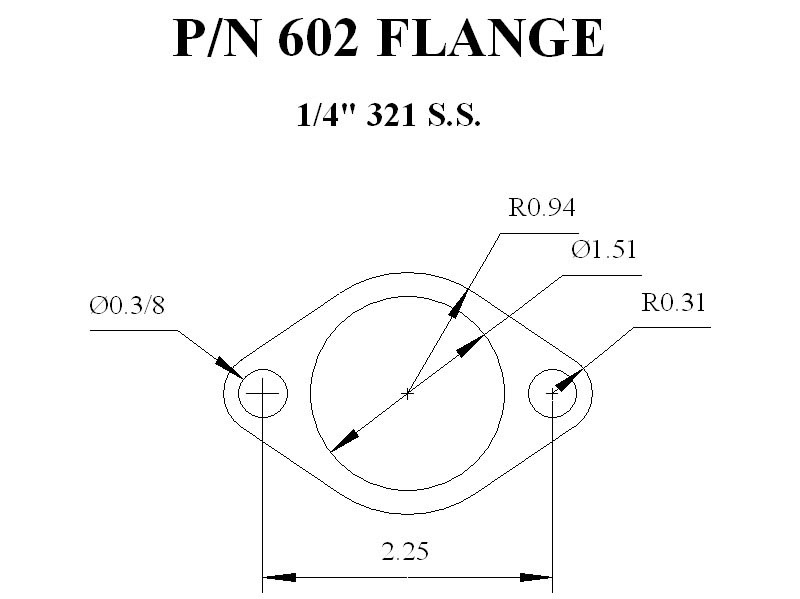

602
Exhaust flange Continental C85 / 0-200 / E-225 / O-470 (1-1/2" I.D.)
.250


DWG.

17.25

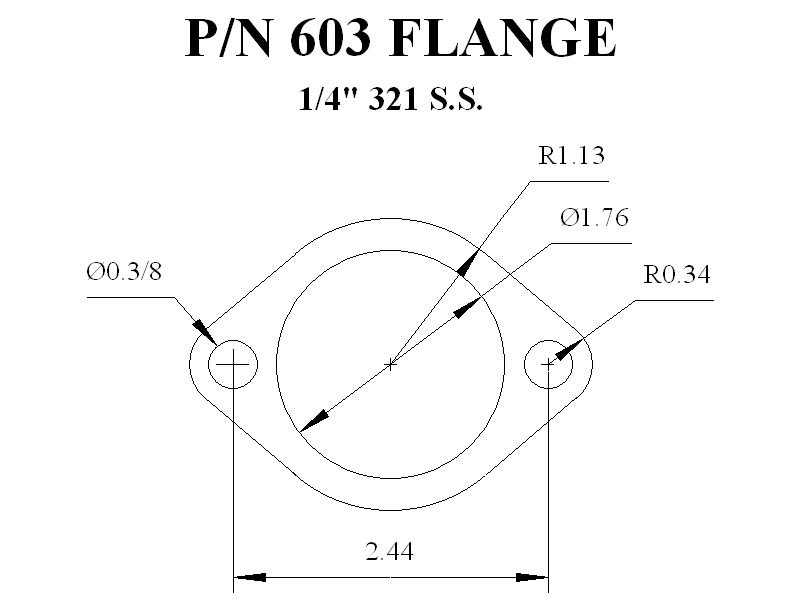

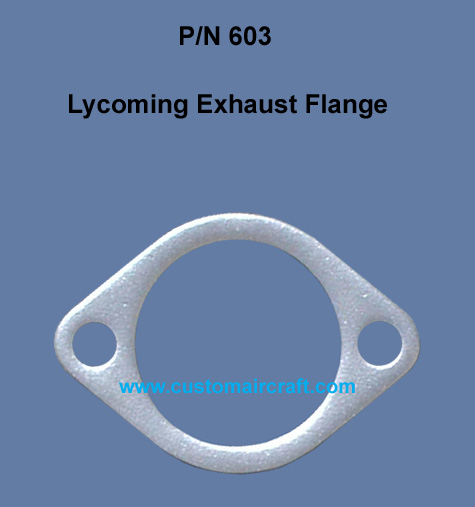

603 Exhaust flange Lycoming IO-360 / IO-390 / IO-540 Angle valve engines (1-3/4" I.D.)
.250


DWG.

17.95

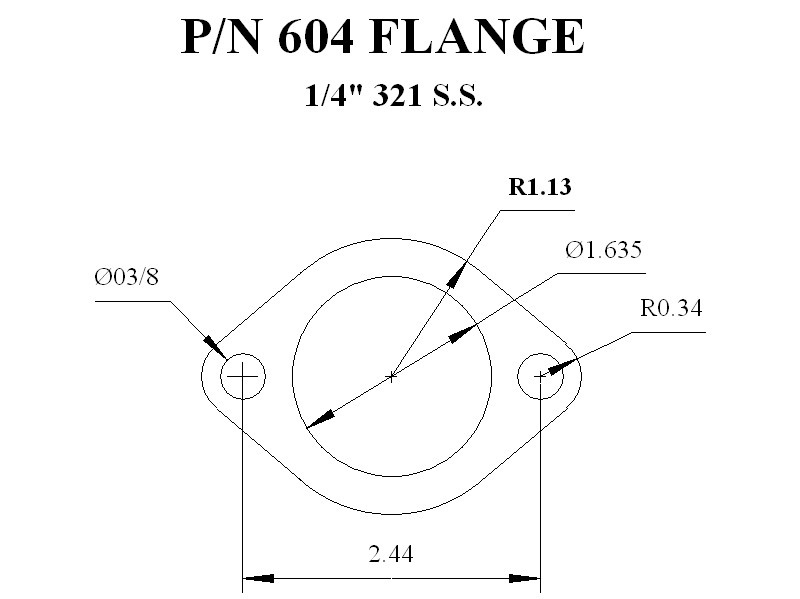

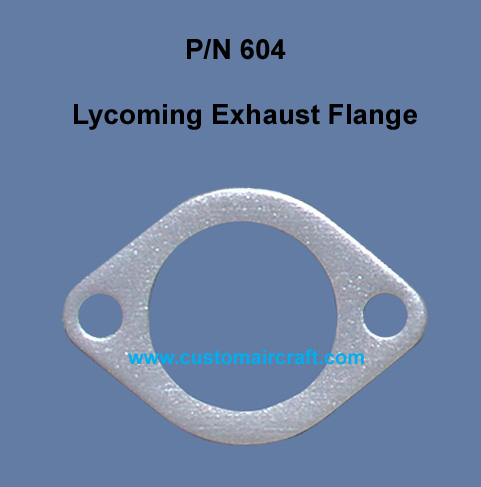

604 Exhaust flange Lycoming IO-360 / IO-390 / IO-540 Angle valve engines (1-5/8" I.D.)
.250


DWG.

20.95

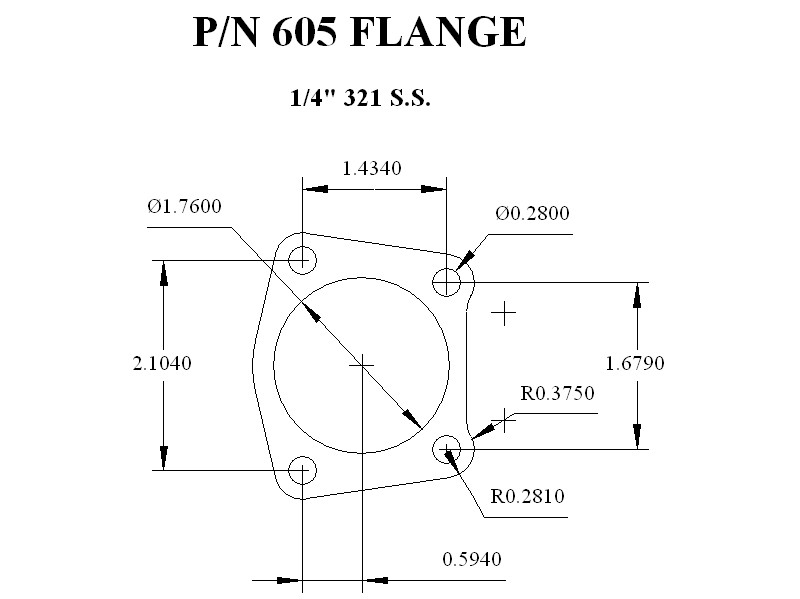

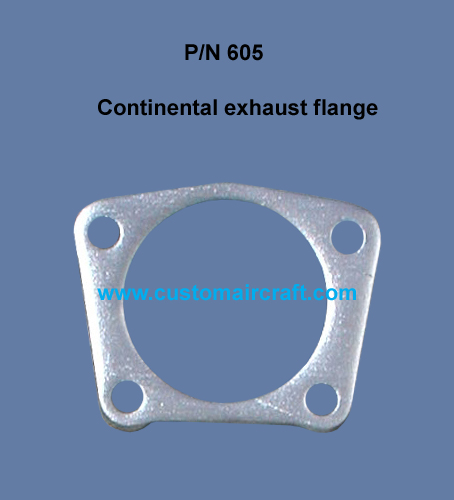

605
Exhaust flange Continental 0-470 / IO-550 (1-3/4" I.D.)
.250


DWG.

18.50

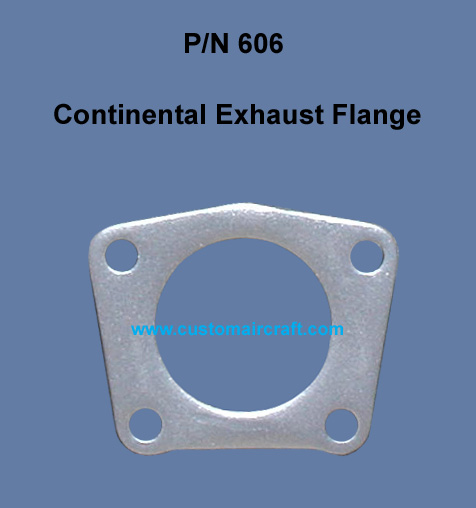

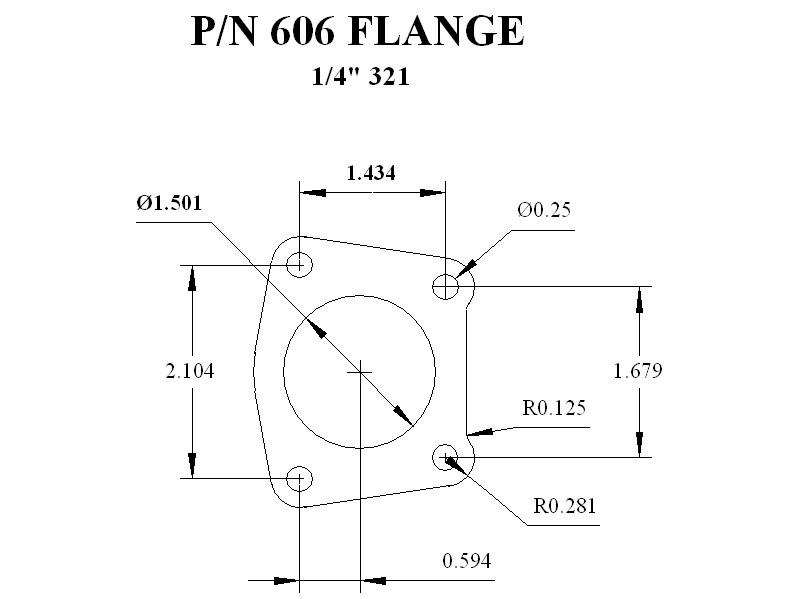

606 Exhaust flange Continental O-470 (1-1/2" I.D.)
.250


DWG.

20.95

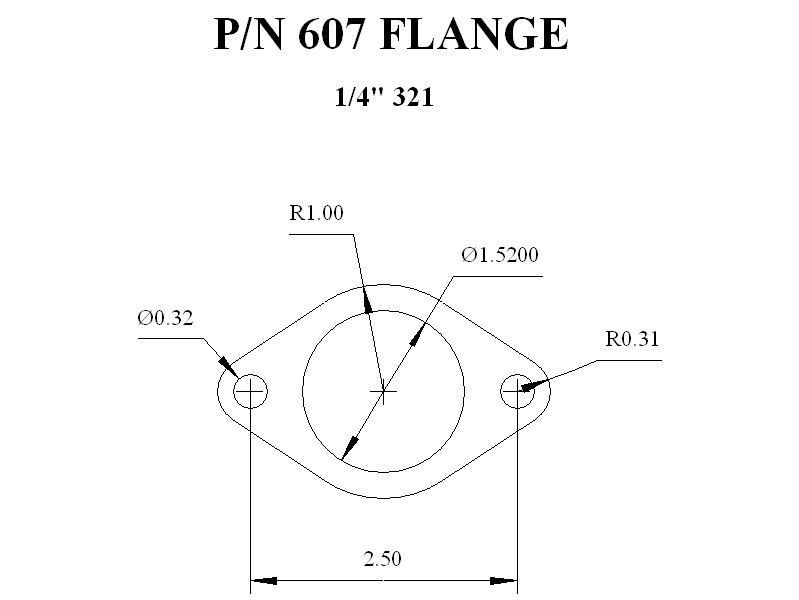

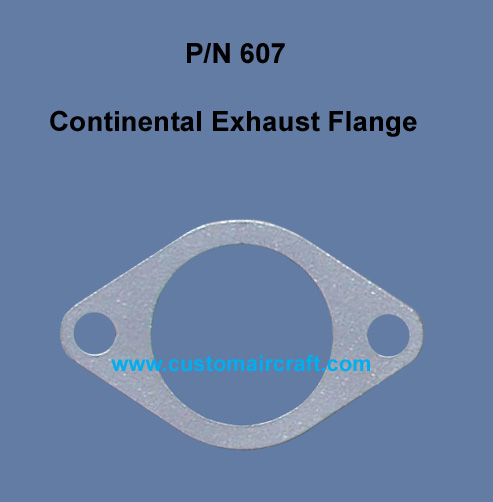

607
Exhaust flange Continental IO-360K (1-1/2" I.D.)
.250


DWG.

26.50

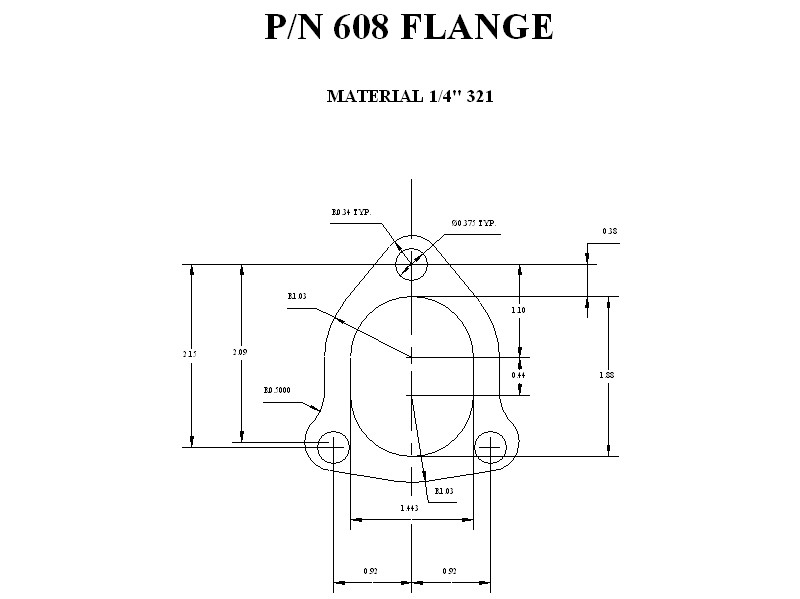

608
Exhaust flange Lycoming 6-Cylinder (Top mounted exhaust system)
.250


DWG.

32.50
609
Exhaust flange Lycoming 4-Cylinder (Top mounted exhaust system)
.250

35.50

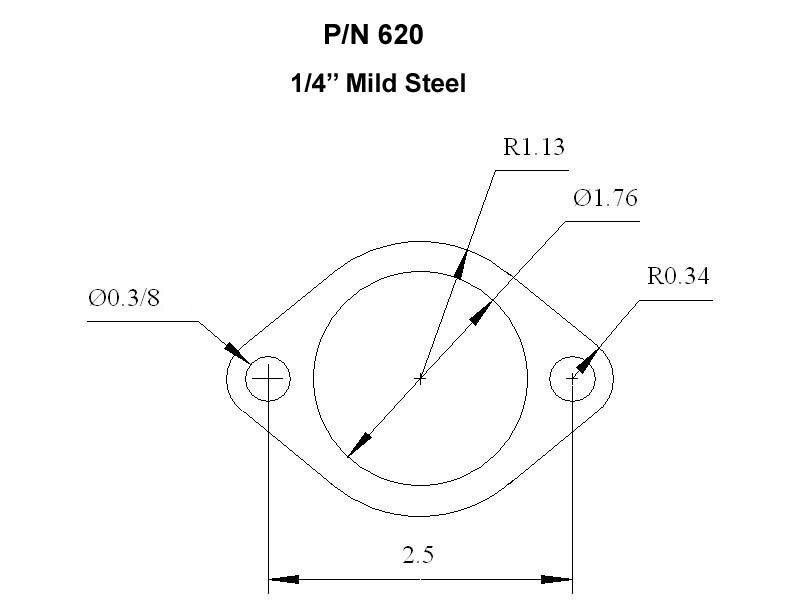

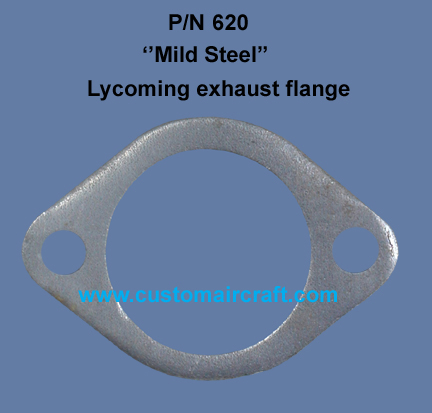

620
Exhaust flange Lycoming O-235 thru O-540 Parallel valve engines (1-3/4" I.D.) (mild steel)
.250


DWG.

14.95

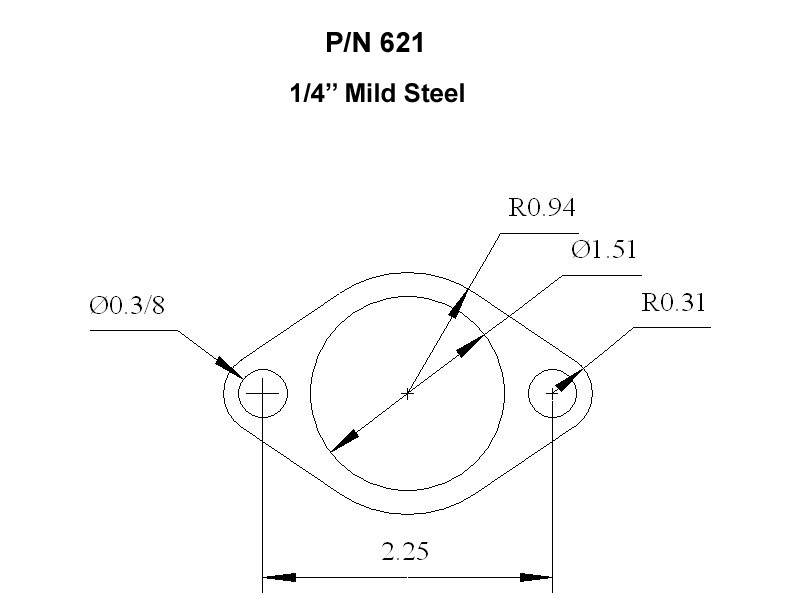

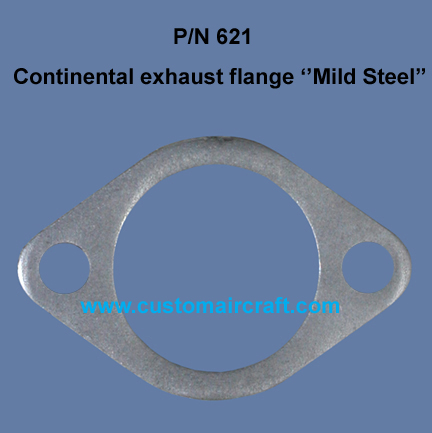

621
Exhaust flange Continental C85 / 0-200 / E-225 / O-470 (1-1/2" I.D.) (mild steel)
.250


DWG.

14.50

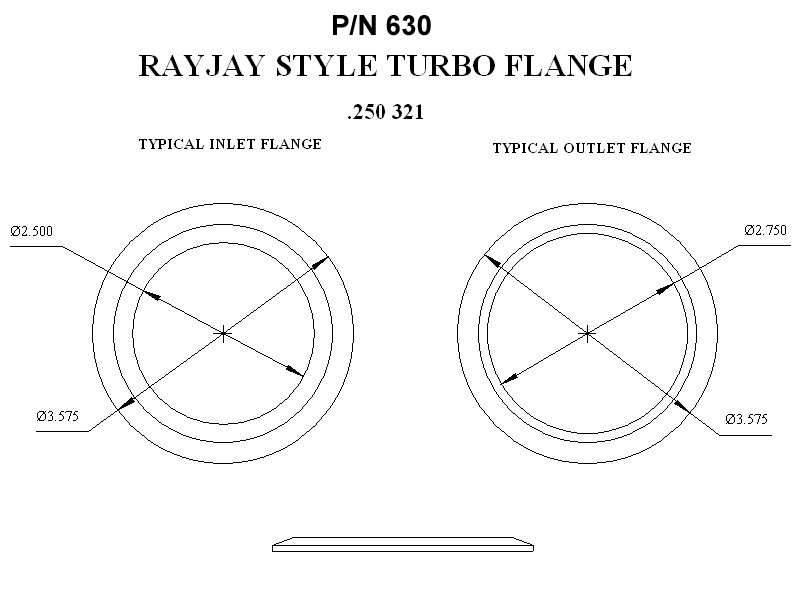

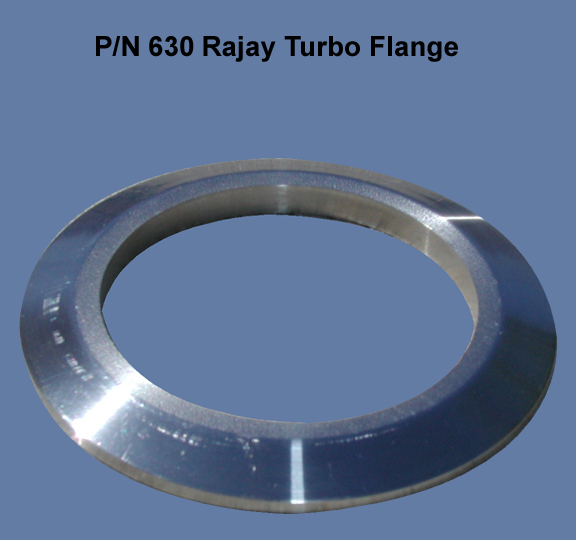

630 Rajay Turbine Inlet & Outlet flange (SPECIFY I.D. SIZE) .250


DWG.

295.00

964 Small 7-1/2'' Long Studded Skin
425.00
965 Medium 8-3/4'' Long Studded Skin
460.00
966 Large 11-1/4'' Long Studded Skin
480.00
(Revised 7/19/2023)
