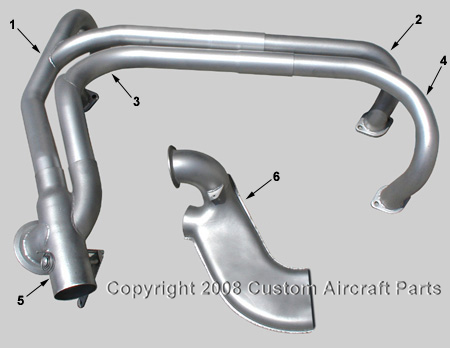

Piper PA30 & PA39 OEM & STC Turbo Twin Comanche


Item #

Part #

Description

1

RJ0602-41

Right Front Stack Cylinder #1

2

23580-10

Left Front Stack Cylinder #2

3

RJ0602-51

Right Rear Stack Cylinder #3

4

RJ0602-61

Left Rear Stack Cylinder #4

5

RJ0603-11

Wastegate

6

RJ0604

Tailpipe

7*

RJ0115

Turbine Inlet Gasket

8*

RJ0114

Turbine Outlet Gasket

9*

RJ0193

V-Band Coupling (Recommended Torque 45-50 Inch/Pound)

10*

RJ4120-11

Wastegate Return Spring

11*

2-Hole Lycoming 77611

Exhaust Gasket

*Items not shown
