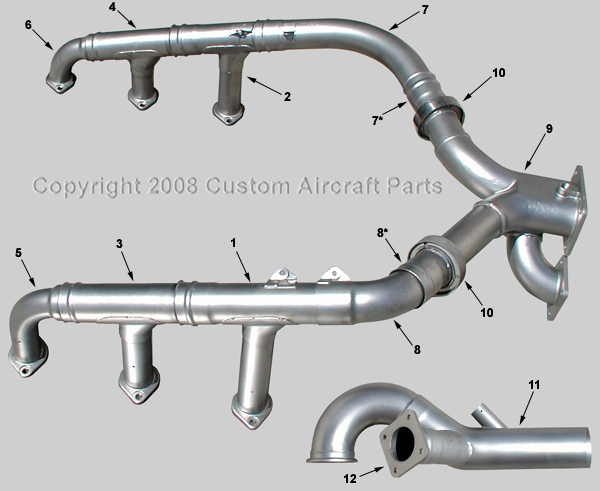

Piper PA34-220T Seneca V


Item #

Part #

Description

1

 643861-101

Cylinder #1 Stack

1

640964-101

Cylinder #1 Stack

2

643861-102

Cylinder #2 Stack

2

640964-102

Cylinder #2 Stack

3

643861-103

Cylinder #3 Stack

3

640964-103

Cylinder #3 Stack

4

643861-104

Cylinder #4 Stack

4

640964-104

Cylinder #4 Stack

5

643861-105

Cylinder #5 Stack

5

640964-105

Cylinder #5 Stack

6

643861-106

Cylinder #6 Stack

6

640964-106

Cylinder #6 Stack

1,3,5

640964R-R

Right Hand Assembly

2,4,6

640964L-R

Left Hand Assembly

7

654400

Left Hand Elbow

7*

N/A

Left Hand Adapter W/Flange

8

654401

Right Hand Elbow

8*

N/A

Right Hand Adapter W/Flange

9

654406

Wye Assembly Turbo Inlet

10

654407

V-Band Coupling

11

655286

Tailpipe

12

65404

Wastegate By-pass

12*

2-Hole Continental 970

Exhaust Gasket

*Items not shown
