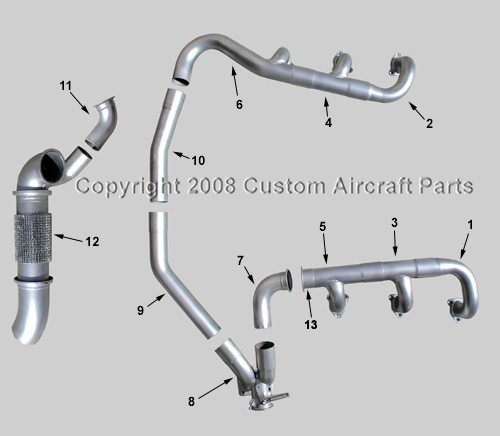

Item # |
Part # |
Description |
|
1 |
LW10159 |
Right Forward Riser Cylinder #1 |
|
2 |
LW10164 |
Left Forward Riser Cylinder #2 |
|
3 |
LW10160 |
Right Center Riser Cylinder #3 |
|
4 |
LW10163 |
Left Center Riser Cylinder #4 |
|
5 |
LW15805 |
Right Rear Riser Cylinder #5 |
|
6 |
40B21375 |
Left Rear Riser Cylinder #6 |
|
1,3,5 |
LW 15807 |
Right hand Manifold Ass'y |
|
2,4,6 |
LW 15812 |
Left hand Manifold Ass'y |
|
7 |
LW15806 |
Right Hand Elbow |
|
8 |
LW 16858 |
Wastegate (.005-.015 Clearance in Closed Position)(Swedgelock P/N SS-400-1-4 for TIT Fitting used in wastegate) |
|
9 |
LW16102 |
Left Hand Elbow ''Long'' |
|
10 |
LW16103 |
Left Hand Elbow ''Short'' |
|
11 |
764-501 |
Elbow Wastegate By-pass |
|
12 |
98705-2 |
Tailpipe |
|
13 |
78189 |
Right Hand Elbow Adapter |
|
14* |
LW-12093-5 |
Wastegate V-Band Coupling |
|
15* |
17189-200-N |
Aeroquip Coupling Gasket ''Nickel'' |
|
16* |
MVT69861-377 |
Tailpipe Coupling Clamp |
|
17* |
3-hole Lycoming 15486 |
Exhaust Gasket (requires 3 per manifold) |
AD 80-20-05
Check couplings with dye penetrant or 10 X magnifying glass for cracks, deformation or damage
Maximum allowable opening of V-segments is .350''
Torque coupling nut to 40-50 inch pounds
