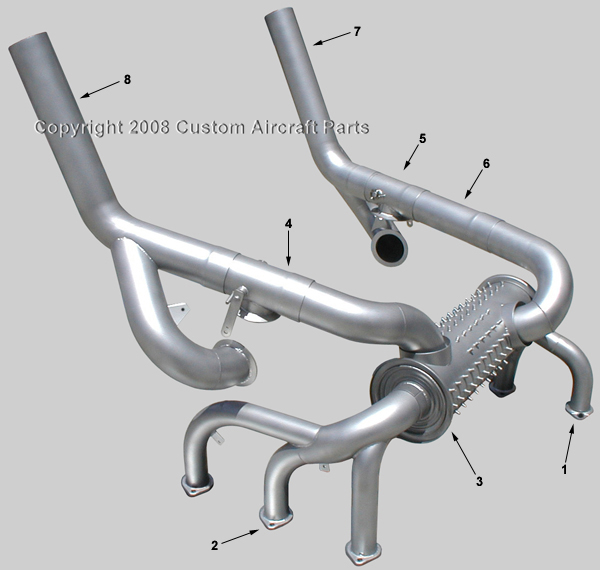

Item # |
Part # |
Description |
|
1 |
65039-00 |
Right Hand Manifold |
|
2 |
65038-00 |
Left Hand Manifold |
|
3 |
68718-03 |
Muffler |
|
4 |
68718-03 |
Left Hand Wastegate |
|
5 |
N/A |
Right Hand Wastegate |
|
6 |
N/A |
Intermediate Connector |
|
7 |
N/A |
Right Hand Tailpipe |
|
8 |
N/A |
Left Hand Tailpipe |
|
9* |
14235-03 |
Pin Clamp Requires 1 |
|
10* |
69174-00 |
Muffler Shroud |
|
11* |
69675-00 |
Carb. Heat Shroud |
|
12* |
RJ0115 |
Turbine Inlet Gasket |
|
13* |
RJ0114 |
Turbine Outlet Gasket |
|
14* |
RJ0193 |
V-Band Coupling (Recommended Torque 45-50 Inch Pounds) |
|
15* |
RJ4120-11 |
Wastegate Return Spring |
|
16* |
2-Hole Lycoming 77611 |
Exhaust Gasket |
*Items Not Shown
