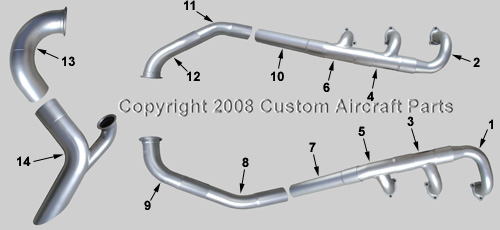

Item # |
Part # |
Description |
|
1 |
LW10159 |
Right Forward Stack Cylinder #1 |
|
2 |
LW10164 |
Left Forward Stack Cylinder #2 |
|
3 |
LW10160 |
Right Center Stack Cylinder #3 |
|
4 |
LW10163 |
Left Center Stack Cylinder #4 |
|
5 |
LW10161 |
Right Rear Stack Cylinder #5 |
|
6 |
LW10162 |
Left Rear Stack Cylinder #6 |
|
7 |
LW15850 |
Right Hand Forward Tube |
|
8 |
LW16792 |
Right Hand Center Elbow |
|
9 |
LW16793 |
Right Hand Rear Elbow |
|
10 |
LW15849 |
Left Hand Forward Tube |
|
11 |
LW16789 |
Left Hand Center Elbow |
|
12 |
LW16790 |
Left Hand Rear Elbow |
|
13 |
40310-08 |
Upper Tailpipe |
|
14 |
40310-09 |
Lower Tailpipe |
|
15* |
LW12127 |
Header Transition |
|
1,3,5 |
LW16825 |
Right Hand Stack Assembly |
|
2,4,6 |
LW16826 |
Left Hand Stack Assembly |
|
16* |
24502-225 |
V-Band Coupling |
|
17* |
24096-225 |
Elbow Gasket |
|
18* |
17189-225 |
Transition Gasket |
|
19* |
N/A |
Tailpipe Coupling |
|
20* |
3-Hole Lycoming 15486 |
Exhaust Gasket |
*Item not shown
AD 82-16-05 R1
100 Hour interval inspect V-band couplings using dye penetrant or 10 power magnifying glass
for cracks or damage to the spot welds and segments or any other damage
inspect turbocharger and tailpipe coupling for proper mating and cracks
remove any carbon deposits from mating surfaces before re-assembly
Reassemble coupling per Piper service bulletin 644C dated 12/3/1985
