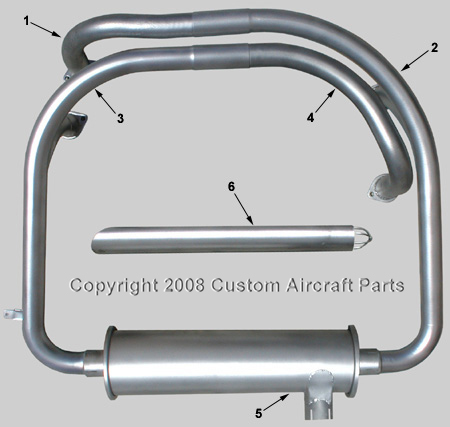

Item # |
Part # |
Description |
|
1 |
63726-04 |
Riser Cyl #1 PA28-140 |
|
1* |
99044-02 |
Riser Cyl #1 PA28-180 |
|
2 |
63726-02 |
Riser Cyl #2 PA28-140 |
|
2* |
99044-05 |
Riser Cyl #2 PA28-180 |
|
3 |
63726-03 |
Riser Cyl #3 PA28-140 |
|
3* |
99044-04 |
Riser Cyl #3 PA28-180 |
|
4 |
63726-05 |
Riser Cyl #4 PA28-140 |
|
4* |
99044-03 |
Riser Cyl #4 PA28-180 |
|
5 |
99482-00 |
Muffler PA28-140 |
|
5* |
99482-02 |
Muffler PA28-180 |
|
6 |
63666-02 |
Tailpipe |
|
7* |
63652-02 |
Muffler Shroud S/N 28-1 Thru 28-1520 |
|
8* |
62208-02 |
Muffler Shroud S/N 28-1521 Thru 28-1760 |
|
9* |
62208-02 |
Muffler Shroud S/N 28-20002 Thru 28-24999 |
|
10* |
66704-02 |
Muffler Shroud S/N 28-25000 and on |
|
11* |
63723-03 |
Carb Heat Shroud Upper |
|
12* |
63723-02 |
Carb Heat Shroud Lower |
|
13* |
65442-03 |
Muffler Pin Clamp 2-1/8'' |
|
14* |
14235-000 |
Tailpipe Pin Clamp 2-1/8'' |
|
15* |
2-Hole Lycoming 77611 |
Exhaust Gasket |
*Items not shown
AD 70-16-05
50 Hour inspection interval on muffler
Inspect muffler for cracks, burn thru areas, weld separations or loose baffles
Muffler must pass 100% leak free @ 10 PSI
Recurrent inspections may be discontinued if new improved muffler is installed
Piper P/N 99482-00 PA28-140 / PA28-150 / PA28-160 / PA28S-160
Piper P/N 99482-02 PA28-180 / PA28S-180
