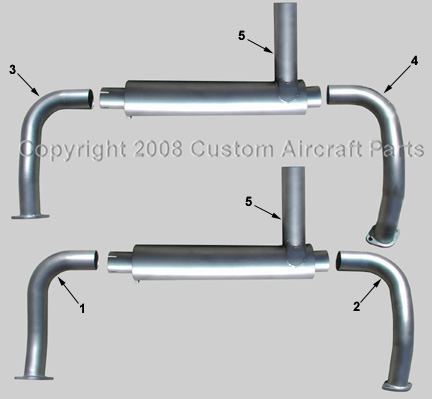

Piper PA 28-151/161 Cherokee, Warrier II & III, Cadet

Item #

Part #

Description

1

62230-000

Riser Cylinder #1 PA28-151 / 161

1*

37922-002

Riser Cylinder #1 PA28-161 Only W/AC

2

35300-000

Riser Cylinder #2 PA28-151 / 161

3

62232-000

Riser Cylinder #3 PA28-151 / 161

4

35301-000

Riser Cylinder #4 PA28-151 / 161

5

66894-003

Muffler

6*

99568-002

Upper Shroud Half PA28-151 / 161 Cadet

7*

99568-003

Upper Shroud Half PA28-151 / 161

8*

35303-003

Lower Shroud Half PA28-161 Warrier III

9*

35303-002

Lower Shroud Half PA28-151 / 161 Warrier II & III, Cadet

10*

35631-000

Carb Heat Cuff PA28-151 / 161

11*

63243-002

Pin Clamp Requires 1 per Muffler

12*

2-Hole Lycoming 77611

Exhaust Gasket Requires 4

*Items Not Shown (Revised 6/18/2024)

Item #	Part #	Description
1	62230-000	Riser Cylinder #1 PA28-151 / 161
1*	37922-002	Riser Cylinder #1 PA28-161 Only W/AC
2	35300-000	Riser Cylinder #2 PA28-151 / 161
3	62232-000	Riser Cylinder #3 PA28-151 / 161
4	35301-000	Riser Cylinder #4 PA28-151 / 161
5	66894-003	Muffler
6*	99568-002	Upper Shroud Half PA28-151 / 161 Cadet
7*	99568-003	Upper Shroud Half PA28-151 / 161
8*	35303-003	Lower Shroud Half PA28-161 Warrier III
9*	35303-002	Lower Shroud Half PA28-151 / 161 Warrier II & III, Cadet
10*	35631-000	Carb Heat Cuff PA28-151 / 161
11*	63243-002	Pin Clamp Requires 1 per Muffler
12*	2-Hole Lycoming 77611	Exhaust Gasket Requires 4
