Item # |
Part # |
Description |
|

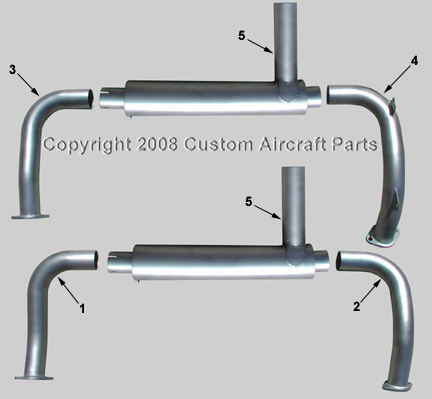

1 |
62230-00 |
Riser Cylinder #1 |
|
1* |
37922-02 |
Riser Cylinder #1 PA28-161 Only W/AC |
|
2 |
35300-00 |
Riser Cylinder #2 PA28-151 / 161 |
|
2* |
62892-03 |
Riser Cylinder #2 PA28-180 with tab for shroud |
|
2* |
67617-00 |
Riser Cylinder #2 PA28-180 no shroud tab |
|
3 |
62232-00 |
Riser Cylinder #3 all models |
|
4 |
62231-00 |
Riser Cylinder #4 PA28-180 with tabs for shroud |
|
4* |
35301-00 |
Riser Cylinder #4 PA28-151 / 161 no shroud tabs |
|
4* |
67618-00 |
Riser Cylinder #4 PA28-180 no shroud tabs |
|
5 |
66894-03 |
Muffler |
|
6* |
66894-00 |
FWD Muffler W/Bracket S/N 28-1761 thru 28-3077 |
|
7* |
66894-02 |
AFT Muffler W/Bracket S/N 28-1761 thru 28-3077 |
|
8* |
63237-04 |
Upper Shroud Half PA28-151 / 161 /181 |
|
9* |
63237-05 |
Lower Shroud Half PA28-151 /161 / 181 |
|
10* |
65542-00 |
Upper Shroud Half |
|
11* |
65543-00 |
Lower Shroud Half |
|
12* |
63237-05 |
Lower Shroud Half PA28-180 slide bar style |
|
13* |
35303-02 |
Lower Shroud Half PA28-151 / 161 / 181 |
|
14* |
35303-03 |
Lower Shroud Half PA28-151 / 161 / 181 |
|
15* |
99568-02 |
Upper Shroud Half PA28-151 / 161 / 181 |
|
16* |
99568-03 |
Upper Shroud Half PA28-151 / 161 / 181 |
|
17* |
63237-04 |
Upper Shroud Half PA28-180 slide bar style |
|
18* |
35488-00 |
Carb Heat Shroud PA28-151 / 161 |
|
19* |
63705-02 |
Carb Heat Shroud Right Hand PA28-160 |
|
20* |
62981-07 |
Carb Heat Shroud INBD 1/2 Right Hand PA28-150 / 160 / 180 / 181 |
|
21* |
62981-06 |
Carb Heat Shroud OTBD 1/2 Left Hand PA28-150 / 160 / 180 / 181 |
|
22* |
63705-03 |
Carb Heat Shroud Left Hand PA28-160 |
|
23* |
63243-002 |
Pin Clamp Requires 1 per Muffler |
|
24* |
N/A |
Shroud Installation Conversion Kit 3-Clamps & 3-Plates 1-Spacer |
|
25* |
2-Hole Lycoming 77611 |
Exhaust Gasket Requires 4 |
