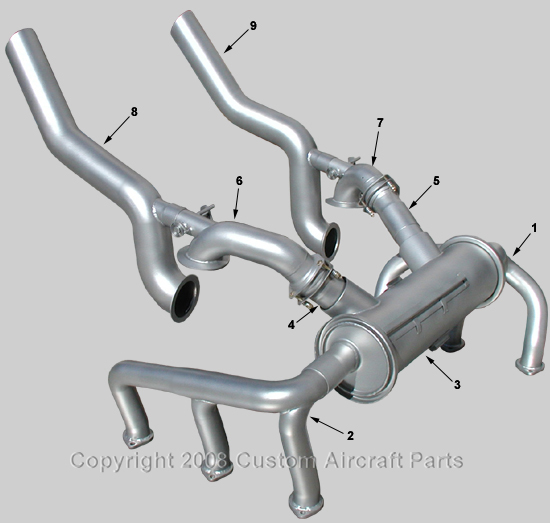

Item # |
Part # |
Description |
|
1 |
26830-00 |
Right Hand Stack Cyl #1,3,5 |
|
2 |
26829-00 |
Left Hand Stack Cyl #2,4,6 |
|
3 |
757 919 / RJ0752 |
Muffler |
|
4 |
757 920 / RJ0774-? |
Left Hand Connector ''Short'' |
|
5 |
757 921 / RJ0774-7 |
Right Hand Connector ''Long'' |
|
6 |
755 010 / RJ0756 |
Left Wastegate |
|
7 |
755 011 / RJ075? |
Right Wastegate |
|
8 |
757 657 / RJ07548 |
Left Tailpipe |
|
9 |
757 658 / RJ0754? |
Right Tailpipe |
|
10* |
757 655 |
Left Muffler Shroud |
|
11* |
757 656 |
Right Muffler Shroud |
|
12* |
RJ4120-11 |
Wastegate return spring |
|
13* |
RJ0115 |
Turbine Inlet Gasket |
|
14* |
RJ0114 |
Turbine Outlet Gasket |
|
15* |
RJ0193 |
V-Band Coupling (Recommended Torque 45-50 Inch Pounds) |
|
16* |
2-Hole Lycoming 77611 |
Exhaust Gasket requires 3 per Manifold |
* Item not shown
