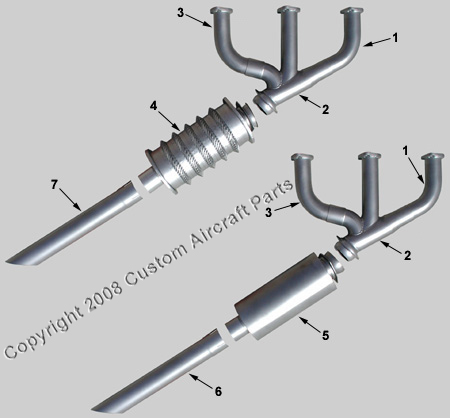

Item # |
Part # |
Description |
|
1 |
24770-06 |
Forward Riser Cyl 1&2 |
|
2 |
24770-004 |
Center Stack Cyl 3&4 |
|
3 |
24770-08 |
Rear Riser Cyl 5&6 |
|
1,2,3 |
24770-04 |
Left Hand Stack Assembly |
|
1,2,3 |
24770-04 |
Right Hand Stack Assembly |
|
4 |
26345-005 |
Left Hand Muffler |
|
5 |
26345-006 |
Right Hand Muffler |
|
6 |
24787-03 |
Right Hand Tailpipe |
|
7 |
24787-02 |
Left Hand Tailpipe |
|
8* |
24861-00 |
Left Hand Upper Shroud |
|
9* |
24862-00 |
Left Hand Lower Shroud |
|
10* |
24862-01 |
Right Hand Upper Shroud |
|
11* |
24862-00 |
Right Hand Lower Shroud |
|
12* |
24788-00 |
Tailpipe Clamp |
|
13* |
2-Hole Lycoming 77611 |
Exhaust Gasket |
*Items not shown
AD68-05-01 Exhaust systems with less than 950 HR TT PSI test muffler and check stacks for cracks
Every 50 Hour interval
Use 10 PSI for all leak testing
Exhaust systems with 950 HRS TT & up perform same tests every 50 Hour interval
