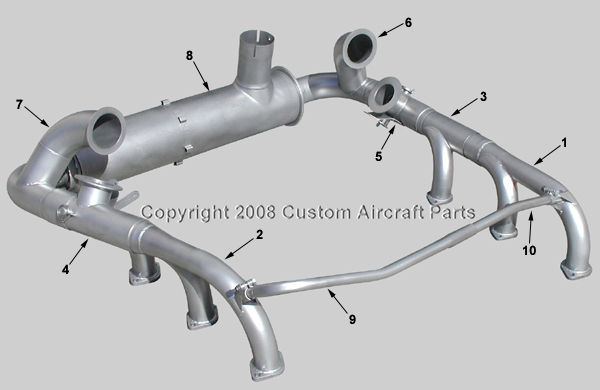

Item # |
Part # |
Description |
|
1 |
RJ0704-21 |
Right Hand Stack Cyl #1,3 ''Modified'' |
|
2 |
RJ0703 |
Left Hand Stack Cyl #2,4 ''Modified'' |
|
3 |
RJ0704-11 |
Right Rear Stack Cylinder #5 ''Modified'' |
|
4 |
RJ0707-11 & 701 |
Left Hand Wastegate & Cylinder #6 Riser (-11 Uses .065 housing) |
|
5 |
RJ0707-21 & 702 |
Right Hand Wastegate (-21 Uses .065 housing) |
|
4&5 |
RJ0701&2 |
Replace Shaft, Butterfly, Lever and return Spring in Wastegate only |
|
6 |
RJ0706 |
Right Rear Elbow |
|
7 |
RJ0705 |
Left Rear Elbow |
|
8 |
24506-00 |
Muffler 2-1/2'' Dia. Inlets (No Internal Baffling) |
|
9 |
RJ0715-7 |
Left Hand Balance tube |
|
10 |
RJ0715-3 |
Right Hand Balance tube |
|
11* |
21580-000 |
Tailpipe |
|
12* |
23489-002 |
Muffler Shroud |
|
13* |
23504-00 |
Muffler Shroud |
|
14* |
14235-08 |
Muffler Pin Clamp |
|
15* |
21167-00 |
Tailpipe Clamp |
|
16* |
21247-00 |
Shroud Rail |
|
17* |
RJ4120-11 |
Wastegate return spring |
|
18* |
RJ0115 |
Turbine Inlet Gasket |
|
19* |
RJ0114 |
Turbine Outlet Gasket |
|
20* |
RJ0193 |
V-Band Coupling (Recommended Torque 45-50 Inch/Pound) |
|
21* |
2-Hole Lycoming 77611 |
Exhaust Gasket requires 3 per Manifold |
* Item not shown
AD68-05-01 Exhaust systems with more than 950 HR TT PSI test muffler and check stacks for cracks
Every 50 Hour interval
Use 10 PSI for all leak testing
Exhaust systems with less than 950 HRS TT perform same tests every 100 Hour interval
AD not required when hollow muffler is installed
Service letter 414 must be implemented when muffler #24506-00 is used
