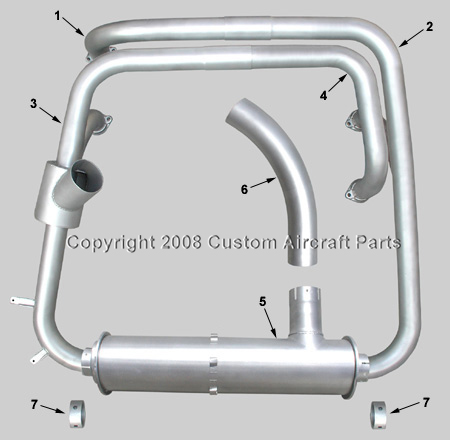

Item # |
Part # |
Description |
|
1 |
21092-10 |
Right Front Stack Cyl #1 |
|
1 |
21092-14 |
Right Front Stack Cyl #1 |
|
2 |
21092-11 |
Left Front Stack Cyl #2 |
|
2 |
21092-15 |
Left Front Stack Cyl #2 |
|
3 |
21092-08 |
Right Rear Stack Cyl #3 (2" Dia. Scat hose) |
|
3 |
21092-17 |
Right Rear Stack Cyl #3 (3" Dia. Scat hose) |
|
4 |
21092-09 |
Left Rear Stack Cyl #4 |
|
5 |
24506-00 |
Muffler 2-1/2'' I.D. (no internal core) |
|
5* |
22594-002 |
Muffler 2'' I.D. (no internal core) |
|
6 |
21580-02 |
Tailpipe |
|
7 |
25017-00 |
Adapter |
|
8* |
21165-02 |
Upper Carb. Heat Shroud |
|
9* |
22093-00 |
Upper Carb Heat Shroud |
|
10* |
21165-03 |
Lower Carb. Heat Shroud |
|
11* |
21199-00 |
Muffler Shroud |
|
12* |
23503-00 |
Muffler Shroud |
|
13* |
23504-00 |
Muffler Shroud |
|
14* |
23507-00 |
Muffler Shroud |
|
15* |
14235-08 |
2-1/2'' Muffler Pin Clamp |
|
16* |
2-Hole Lycoming 77611 |
Exhaust Gasket requires 2 per manifold |
* Item not shown
AD68-05-01 Exhaust systems with more than 950 HR TT PSI test muffler and check stacks for cracks
Every 50 Hour interval
Use 10 PSI for all leak testing
Exhaust systems with less than 950 HRS TT perform same tests every 100 Hour interval
AD not required when hollow muffler is installed
Service letter 414 must be implemented when muffler #24506-00 is used
