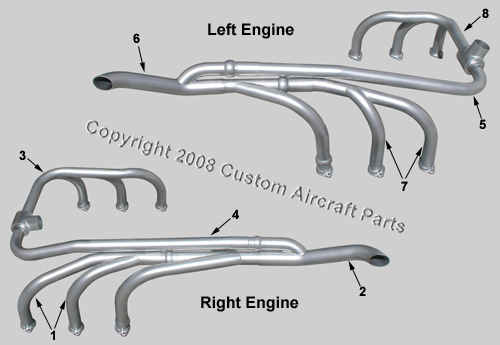

Item # |
Part # |
Description |
|
1 |
28279-02 |
Right Engine Forward Outboard Stack |
|
2 |
28279-03 |
Right Engine Rear Outboard Stack |
|
3 |
33420-02 |
Right Engine Inboard Stack |
|
4 |
28279-14 |
Right Engine Crossover Tube |
|
5 |
28278-12 |
Left Engine Crossover Tube |
|
6 |
28278-03 |
Left Engine Rear Outboard Stack |
|
7 |
28278-02 |
Left Engine Forward Outboard Stack |
|
8 |
33419-03 |
Left Engine Inboard Stack |
|
9* |
33178-03 |
Bottom Shroud |
|
10* |
33178-05 |
Bottom Shroud |
|
11* |
33178-02 |
Top Shroud |
|
12* |
33178-04 |
Top Shroud |
|
13* |
2-Hole Lycoming 77611 |
Exhaust Gasket |
*Items not shown
AD 72-14-05
Compliance required within 50 hours of AD & every 100 hour interval serial # 27-7304959 and up
Visually inspect entire exhaust system for cracks, pitting, bulging and leakage per Piper
service bulletin 319
