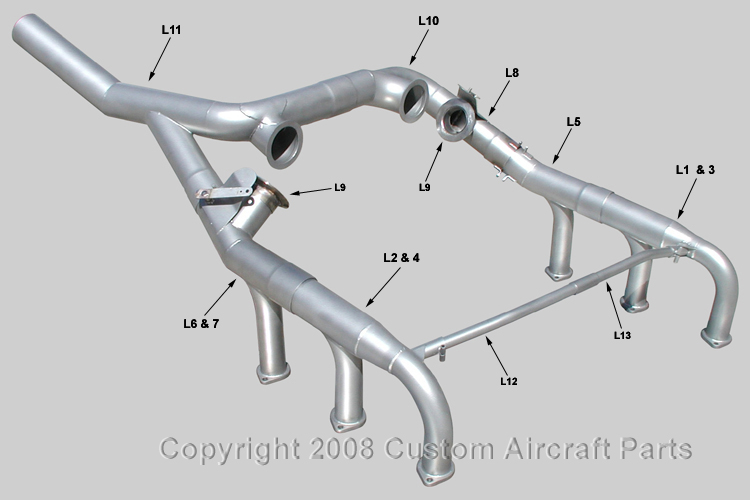

Item # |
Part # |
Description |
|
L1 & 3 |
RJ0556-2 |
Right Hand Manifold Cylinder Segment #1 & #3 |
|
L2 & 4 |
RJ0556-1 |
Left Hand Manifold Cylinder Segment #2 & #4 |
|
L5 |
RJ0556-2 |
Right Hand Manifold Cylinder Segment #5 |
|
L6 & 7 |
RJ0556-1&(-51 Sub Assembly) |
Left Hand Manifold Cylinder Segment #6 & Wastegate Assembly |
|
L8 |
RJ0556-2 (-31 Sub Assembly) |
Right Side Wastegate Assembly |
|
L9 |
RJ0556-1&2 |
Left & Right Wastegate / Turbine Inlet Adapter |
|
L10 |
RJ0583-22 |
Right Aft Turbine Discharge Elbow |
|
L11 |
RJ0584-21 |
Left Turbine Discharge & Tailpipe |
|
L12 |
RJ0516-5 |
Balance Tube Left Hand |
|
L13 |
RJ0516-3 |
Balance Tube Right Hand |
|
14* |
RJ4120-11 |
Wastegate Return Spring |
|
15* |
RJ0115 |
Turbine Inlet Gasket |
|
16* |
RJ0114 |
Turbine Outlet Gasket |
|
17* |
RJ0193 |
V-Band Coupling (Recommended Torque 45-50 Inch/Pound) |
|
18* |
2-hole Lycoming 77611 |
Exhaust Gasket |
*Items not shown
