Piper PA22 Tri-Pacer

www.customaircraft.com

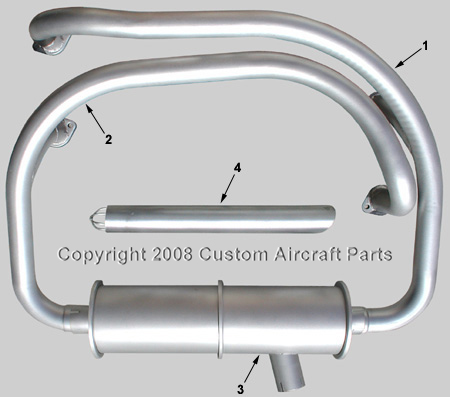

Item #

Part #

Description

1

12043-23

Front Crossover

2

12043-22

Rear Crossover

2*

13238-05

Rear Crossover W/Shroud

3

10308-00

Muffler

4

11417-004

Tailpipe

5*

12742-04

Muffler Shroud

6*

10430-00

Shroud Slider

7*

14235-00

2'' Pin Clamp

8*

10843-03

Upper Carb. Heat Shroud

9*

10764-03

Lower Carb. Heat Shroud

10*

2-Hole Lycoming 77611

Exhaust Gasket

* Item not shown

AD68-05-01 Exhaust systems with less than 950 HR TT PSI test muffler and check stacks for cracks

Every 50 Hour interval

Use 10 PSI for all leak testing

Exhaust systems with 950 HRS TT & up perform same tests every 50 Hour interval
