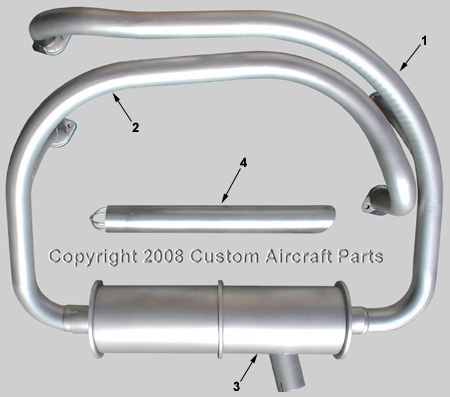

Item # |
Part # |
Description |
|
1 |
12043-17 |
Front Crossover 125 & 135 HP |
|
1* |
12043-02 |
Front Crossover 115 HP |
|
2 |
12043-11 |
Rear Crossover 125 & 135 HP |
|
2* |
12043-03 |
Rear Crossover 115 HP |
|
2* |
13238-00 |
Rear Crossover (use when rear seat heater is installed) |
|
3 |
10308-00 |
Muffler |
|
4 |
11417-00 |
Tailpipe |
|
5* |
N/A |
Muffler Pin Clamp |
|
6* |
N/A |
Tailpipe Pin Clamp |
|
7* |
N/A |
Muffler Shroud |
|
8* |
2-Hole Lycoming 77611 |
Exhaust Gasket |
* Item not shown
AD68-05-01 Exhaust systems with less than 950 HR TT PSI test muffler and check stacks for cracks
Every 50 Hour interval
Use 10 PSI for all leak testing
Exhaust systems with 950 HRS TT & up perform same tests every 50 Hour interval
