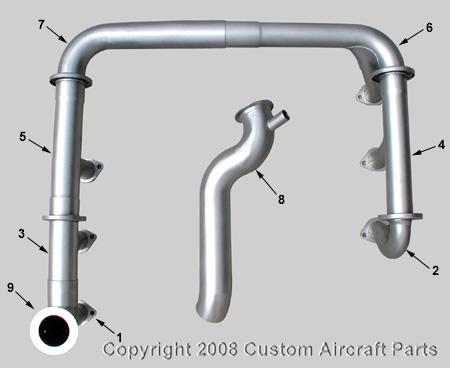

Mooney M-20K 231 Turbo TSIO-360


Item #

Part #

Description

1

642220-902-2

Right Rear Stack & Riser Cylinder #1

2

642220-102

Left Rear Riser Cylinder #2

3

642220-103

Right Center Riser Cylinder #3

4

642220-104

Left Center Stack & Riser Cylinder #4

5

642220-905-2

Right Front Stack & Riser Cylinder #5

6

642220-106

Left Front Stack / Crossover Cylinder #6

7

642220-905-1

Right Front Crossover Pipe

8

642220-107

Tailpipe

9

642220-902-1

Turbo Inlet Header

10*

642220-118

By-Pass Assy

11*

633358

V-Band Turbo Clamp (requires 1 per connection)(Turbine inlet Torque 10/32'' T-Bolt Coupling 20 In/Lb)(Turbine discharge torque 10/32'' T-Bolt 40 In/Lb)(1/4 x 28 T-Bolt Coupling 55 In/Lb)

12*

2-Hole Continental 970

Exhaust Gasket (requires 3 per manifold)(Exhaust Nut Torque Spiral Wound No Blow Gasket 200-210 In/Lb)

*Items not shown
