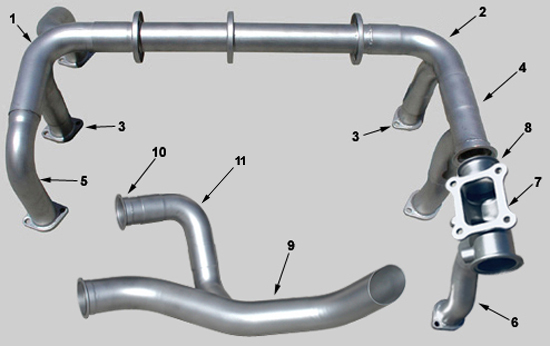

Item # |
Part # |
Description |
|
1 |
40B19822 |
Right Front Stack & Riser Cylinder #1,3 |
|
2 |
40B21089 |
Left Front Stack / Crossover Riser Cylinder #2 |
|
3 |
LW-12728 |
Riser Stub Cylinder #2,3 |
|
4 |
40B19824 |
Left Center Stack & Riser Cylinder #4 |
|
5 |
40B19825 |
Right Rear Riser Cylinder #5 |
|
6 |
40B19823 |
Left Rear Stack Cylinder #6 |
|
7 |
47C22531 |
Turbo Inlet Transition |
|
8 |
N/A |
Turbo Transition Adapter |
|
9 |
630135-501 |
Tailpipe Assembly & Wastegate By-Pass |
|
10* |
N/A |
Wastegate By-Pass Elbow |
|
11* |
LW-12093-5 |
Wastegate By-Pass Coupling |
|
12* |
2-Hole Lycoming 77611 |
Exhaust Gasket (requires 4) |
* Items Not Shown
AD 2004-23-17
Replace V-Band tailpipe coupling with new improved design.
Replace original Heat Shield with new improved Heat Shield & Deflector Kit.
