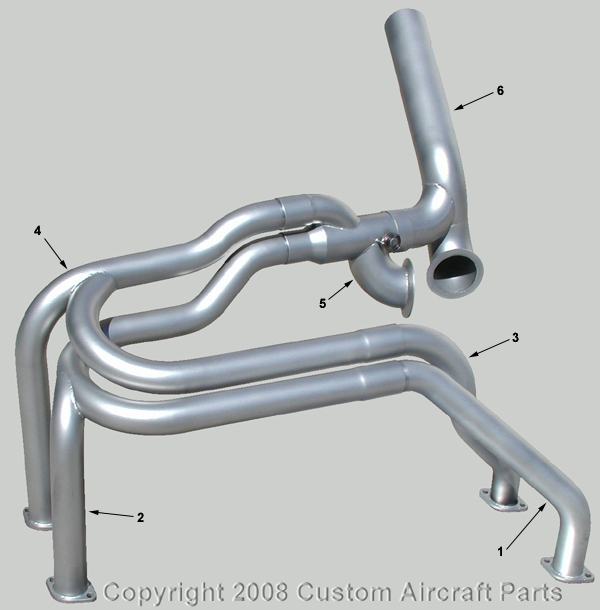

Mooney M20 200 HP R.J. STC Turbo

Item #

Part #

Description

1

N/A

Right Front Stack Cylinder #1

2

N/A

Left Front Stack Cylinder #2

3

N/A

Right Rear Stack Cylinder #3

4

N/A

Left Rear Stack Cylinder #4

5

N/A

Wastegate

6

N/A

Tailpipe

7*

N/A

Shroud Sleeve

8*

RJ0115

Turbine Inlet Gasket

9*

RJ0114

Turbine Outlet Gasket

10*

RJ0193

V-Band Coupling (Recommended Torque 45-50 Inch/Pound)

11*

RJ4120-11

Wastegate Return Spring

12*

2-Hole Lycoming 77611

Exhaust Gasket

*Items not shown

Item #	Part #	Description
1	N/A	Right Front Stack Cylinder #1
2	N/A	Left Front Stack Cylinder #2
3	N/A	Right Rear Stack Cylinder #3
4	N/A	Left Rear Stack Cylinder #4
5	N/A	Wastegate
6	N/A	Tailpipe
7*	N/A	Shroud Sleeve
8*	RJ0115	Turbine Inlet Gasket
9*	RJ0114	Turbine Outlet Gasket
10*	RJ0193	V-Band Coupling (Recommended Torque 45-50 Inch/Pound)
11*	RJ4120-11	Wastegate Return Spring
12*	2-Hole Lycoming 77611	Exhaust Gasket
