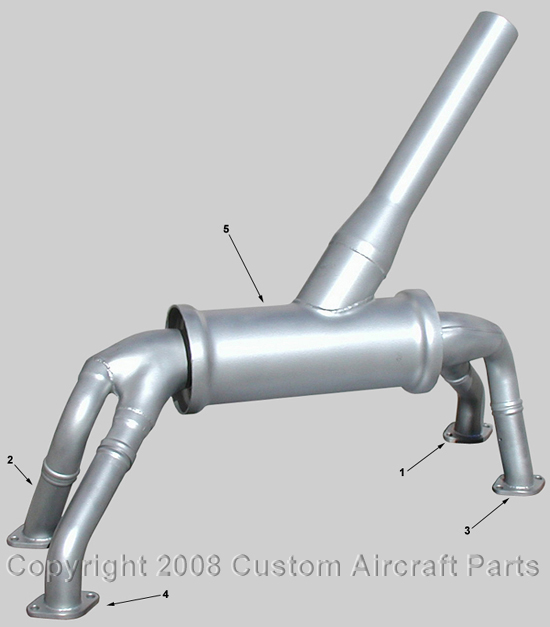

Item # |
Part # |
Description |
|
1 |
? |
Riser Cylinder 1 |
|
2 |
? |
Riser Cylinder 2 |
|
3 |
? |
Riser Cylinder 3 |
|
4 |
? |
Riser Cylinder 4 |
|
5 |
? |
Muffler |
|
6* |
? |
Cabin Heat Shroud |
|
7* |
? |
Riser Clamp Half 1-1/2'' Dia. Requires 2 per connection |
|
8* |
2-Hole Lycoming 77611 |
Exhaust Gasket (requires 4) |
*Items not shown
*** AD 2009-08-05 ***
Cracks found around tailpipe to skin casing, possible carbon monoxide contamination into cockpit.
(ii) Insure Tailpipe has a minimum of 1/2'' clearance around cowl opening, trim cowl as required to meet minimum.
(iii) Inspect propeller for proper propeller clocking position.
