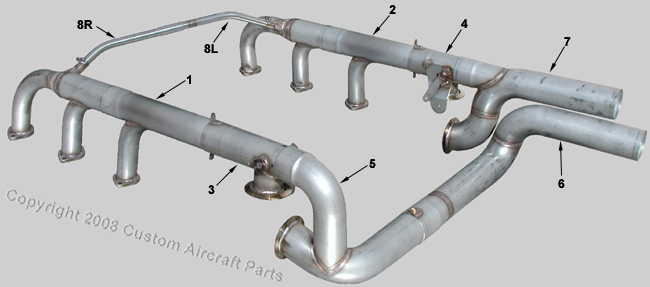

Item # |
Part # |
Description |
|
1 |
RJ5208-2 |
Right Hand Manifold Assembly |
|
2 |
RJ5208-1 |
Left Hand Manifold Assembly |
|
3 |
RJ5209 |
Right Hand Wastegate Assembly |
|
4 |
RJ5204 |
Left Hand Wastegate Assembly |
|
5 |
RJ5210-2 |
Left Engine Exhaust Stack Assembly I/C Overboard |
|
6 |
RJ5210-4 |
Left Engine Exhaust Stack Assembly I/C Overboard |
|
7 |
RJ5212-2 |
Left Engine Left Hand Tailpipe |
|
8R |
RJ5211-2 |
Balance Tube Right Hand |
|
8L |
RJ5211-1 |
Balance Tube Left Hand |
|
9* |
RJ4120-11 |
Wastegate Return Spring |
|
10* |
RJ0115 |
Turbine Inlet Gasket |
|
11* |
RJ0114 |
Turbine Outlet Gasket |
|
12* |
RJ0193 |
V-Band Coupling (Recommended Torque 45-50 Inch Pounds) |
|
7* |
2-hole Lycoming 77611 |
Exhaust Gasket |
*Items not shown
