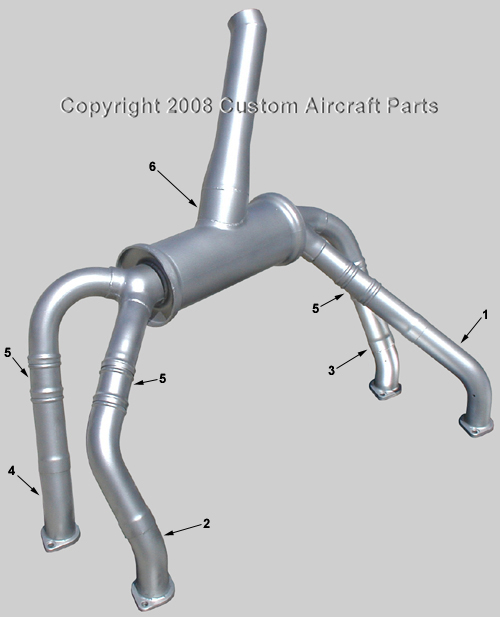

Diamond DA40 IPC

S/N 40.005 THRU 40.083

Lycoming IO-360 180 H.P. Engine

Item #

Part #

Description

1

DA40-1 REV ''C''

Riser Cylinder #1

2

DA40-3 REV ''B''

Riser Cylinder #2

3

DA40-2 REV ''B''

Riser Cylinder #3

4

DA40-5 REV ''B''

Riser Cylinder #4

5

DA40-B

Connection Tube

6

DA40-7 REV ''B''

Muffler

7*

D40-4

Muffler Shroud

8*

D41-7806-50-01

Muffler Shroud Inside Liner

9*

A169-14

Riser Clamp Half w/liner

10*

77611 2-Hole Lycoming

Exhaust Gasket

*Items Not Shown

Service bulletin regarding this exhaust system Manufactured by Wall Colmonoy

Item #	Part #	Description
1	DA40-1 REV ''C''	Riser Cylinder #1
2	DA40-3 REV ''B''	Riser Cylinder #2
3	DA40-2 REV ''B''	Riser Cylinder #3
4	DA40-5 REV ''B''	Riser Cylinder #4
5	DA40-B	Connection Tube
6	DA40-7 REV ''B''	Muffler
7*	D40-4	Muffler Shroud
8*	D41-7806-50-01	Muffler Shroud Inside Liner
9*	A169-14	Riser Clamp Half w/liner
10*	77611 2-Hole Lycoming	Exhaust Gasket
