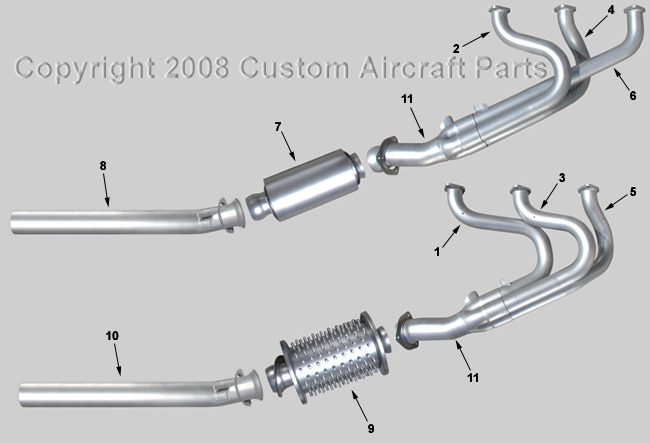

Cirrus SR20

Serial # 1005 - 1422

Item #

Part #

Description

1

10355-003

Riser Tube Cylinder 1

2

10353-002

Riser Tube Cylinder 2 & 3

3

10353-002

Riser Tube Cylinder 2 & 3

4

10351-002

Riser Tube Cylinder 4 & 5

5

10351-002

Riser Tube Cylinder 4 & 5

6

10349--003

Riser Tube Cylinder 6

7

11885-002

Muffler

8

11883-004

Left Tailpipe

9

11884-003

Muffler with Heat Exchanger (-003 Improved design Muffler)

9*

11884-002

Muffler with Heat Exchanger (With Flawed divider Design Recommend Remove from Service)

10

11883-004

Right Tailpipe

11

10358-002

Collector Left & Right

12*

10869-002

Muffler Shroud (-002 Improved design Muffler)

13*

2-Hole Continental 970

Exhaust Gasket

*Items not shown

***AD 2008-11-18 Applies to Cirrus SR20 Serial numbers 1005 thru 1815***

Perform a pressure test on the cabin heat exchanger muffler P/N 11884-002 & 20559-001 for leaks resulting in carbon monoxide contamination.

Follow Cirrus Service Bulletin SB 2X-78-07 R1

***Continue Mandatory 100 Hour pressure test intervals***

Item #	Part #	Description
1	10355-003	Riser Tube Cylinder 1
2	10353-002	Riser Tube Cylinder 2 & 3
3	10353-002	Riser Tube Cylinder 2 & 3
4	10351-002	Riser Tube Cylinder 4 & 5
5	10351-002	Riser Tube Cylinder 4 & 5
6	10349--003	Riser Tube Cylinder 6
7	11885-002	Muffler
8	11883-004	Left Tailpipe
9	11884-003	Muffler with Heat Exchanger (-003 Improved design Muffler)
9*	11884-002	Muffler with Heat Exchanger (With Flawed divider Design Recommend Remove from Service)
10	11883-004	Right Tailpipe
11	10358-002	Collector Left & Right
12*	10869-002	Muffler Shroud (-002 Improved design Muffler)
13*	2-Hole Continental 970	Exhaust Gasket
