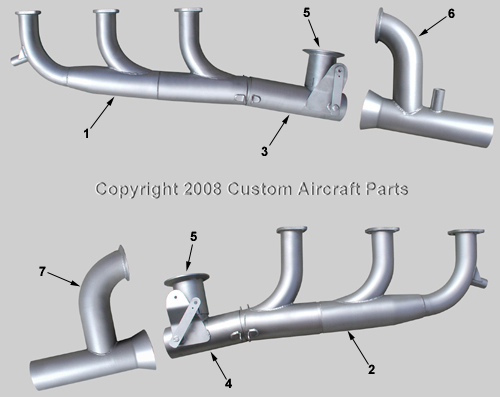

Item # |
Part # |
Description |
|
1 |
RJ1002-1 |
Left Engine Outboard Manifold & Right Engine Inboard Manifold |
|
2 |
RJ1002-2 |
Left Engine Inboard Manifold & Right Engine Outboard Manifold |
|
3 |
N/A |
Left Engine Outboard Wastegate & Right Engine Inboard Wastegate |
|
4 |
N/A |
Left Engine Inboard Wastegate & Right Engine Outboard Wastegate |
|
5 |
N/A |
Turbo Inlet Connector Left & Right Engine |
|
6 |
RJ1017-1 |
Left Engine Outboard & Right Engine Inboard Turbo Outlet & Tailpipe |
|
7 |
RJ1017-2 |
Left Engine Inboard & Right Engine Outboard Turbo Outlet & Tailpipe |
|
8* |
RJ1003-3 & RJ1003-5 |
Balance Tube LH & RH Engine |
|
9* |
RJ4120-11 |
Wastegate return spring |
|
10* |
RJ0115 |
Turbine Inlet Gasket |
|
11* |
RJ0114 |
Turbine Outlet Gasket |
|
12* |
RJ0193 |
V-Band Coupling (Recommended Torque 45-50 Inch Pounds) |
|
13* |
2-Hole Lycoming 77611 |
Exhaust Gasket |
*Items not shown
