Item # |
Part # |
Description |
|

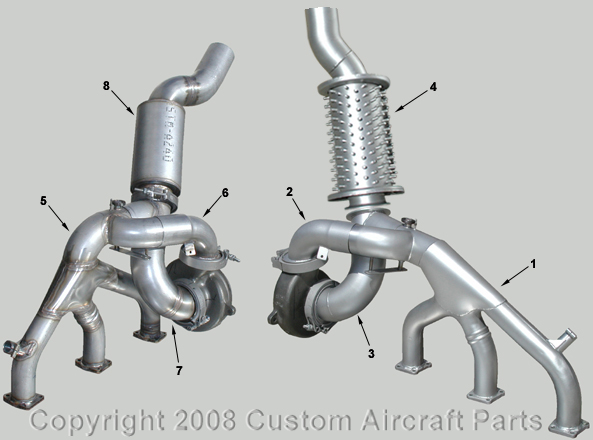

1 |
RJ1602-1 |
Left Hand Manifold & Wastegate |
|
2 |
RJ1605-1 |
Left Hand Turbo Inlet Elbow |
|
3 |
RJ1603-1 |
Left Hand Turbo Outlet Elbow |
|
4 |
(RJ1604-1 Code A) (RJ1604-11 Code B) |
Left Hand Muffler & Tailpipe ''Flame Cone Required'' |
|
5 |
RJ1602-2 |
Right Hand Manifold & Wastegate |
|
6 |
RJ1605-2 |
Right Hand Turbo Inlet Elbow |
|
7 |
RJ1603-2 |
Right Hand Turbo Outlet Elbow |
|
8 |
RJ1604-2 |
Right Hand Muffler & Tailpipe ''Flame Cone Required'' |
|
9* |
RJ1606-1 |
Left Hand Balance Tube 3/4'' Diameter |
|
10* |
RJ1606-2 |
Right Hand Balance Tube 3/4'' Diameter |
|
11* |
RJ4120-11 |
Wastegate Return Spring |
|
12* |
RJ0115 |
Turbine Inlet Gasket |
|
13* |
RJ0114 |
Turbine Outlet Gasket |
|
14* |
RJ0193 |
V-Band Coupling (Recommended Torque 45-50 Inch/Pound) |
|
15* |
N/A |
Cabin Heat Shroud |
|
16* |
2-Hole Continental 627429 |
Exhaust Gasket (requires 3 per manifold |
*Items not shown
