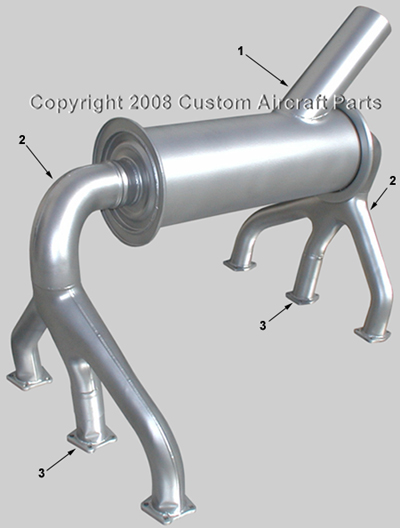

Item # |
Part # |
Description |
1 |
0750161-28 |
Muffler |
1* |
0750161-89 |
Muffler ''FLOAT PLANE'' |
2 |
0750238-20 |
12-1/2'' Short Collector with Slip Joint center Riser C-180 S/N 52274-52617 / C-182 S/N 57599-68055 |
2* |
0750238-47 |
13'' long Collector with Slip Joint center riser C-185 S/N 02069-04449 |
2* |
0750238-210 Use 0750238-47 |
13'' long Collector with Slip Joint center riser C-180 S/N 51414-52273 / C-182 S/N 55059-57598 / C-185 S/N 0001-02068 |
3 |
07501238-5 |
Riser slip joint style |
3* |
0750161-36R |
Riser beaded style |
4* |
0750161-25 |
Riser Clamp Half (requires two per connection) |
5* |
0750161-22 |
Muffler Clamp Half without pin (requires 1 per connection) |
6* |
0750161-24 |
Muffler Clamp Half with pin (requires 1 per connection) |
7* |
0750161-40 |
Muffler Shroud 90 Degree Inlet-Outlet Clocking Can be found on S/N 18255059-18260445 Aircraft with P/N 0750238-20 ''Short'' Height Manifolds |
8* |
0750161-87 |
Muffler Shroud 180 Degree Inlet-Outlet Clocking S/N 18255059-18268055 SN1850001-18504449 |
9* |
0750607-5 |
Inboard Carb. Heat Shroud |
10* |
0750607-4 |
Outboard Carb. Heat Shroud |
11* |
4-hole Continental 628260 |
Exhaust Gasket (requires 3 per manifold) |
* Item not shown
