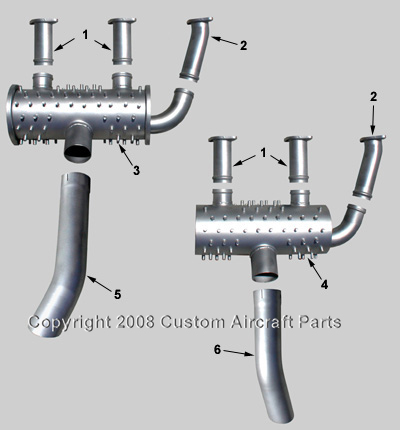

Item # |
Part # |
Description |
|
1 |
0550157-7 |
Straight Riser |
|
2 |
0550157-8 |
Curved Riser |
|
3 |
0550157-9 |
Left hand Muffler (no risers) |
|
4 |
0550157-32 |
Right hand Muffler (no risers) |
|
5 |
0550157-4 |
Left hand Tailpipe |
|
6 |
0550157-33 |
Right hand Tailpipe |
|
7* |
0550157-15 |
Left Hand Muffler Shroud |
|
8* |
0550157-27 |
Right Hand Muffler Shroud |
|
9* |
07130192-32 |
Right Hand Shroud End Cap |
|
10* |
0550157-53 |
Right Hand Shroud End Cap Adapter |
|
11* |
0550176-50 |
Riser 2 Piece Clamp Set (requires 1 set per connection) |
|
12* |
0550157-5 |
Tailpipe Clamp Half (requires 2 per muffler) |
|
13* |
2-hole Continental 627429 |
Exhaust Gasket (requires 3 per muffler) |
*Item not shown
AD 90-06-03 R1
Model 172 airplanes serial # 36216 thru 36769 modified with Service Kit SK-172-10 or SK-172-10A
Visually inspect Cessna P/N 0550157-32 or submerge in water and pressurize @ 5 PSI
If leaks or cracks are found replace with airworthy part
