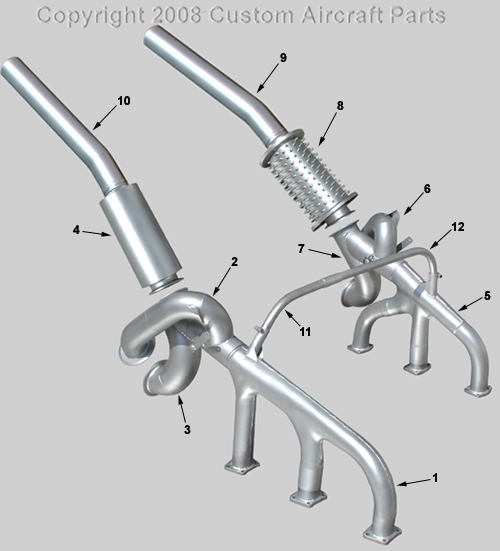

Item # |
Part # |
Description |
|
1 |
RJ3007-15 Make from Beech P/N 35-950005-1 |
Left Hand Manifold |
|
2 |
RJ3009-501 |
Left Hand Wastegate |
|
3 |
RJ3008-701 |
Left Hand Turbo Outlet |
|
4 |
N/A |
Left Hand Muffler ''Flame Cone Required'' |
|
5 |
RJ3007-17 Make from Beech P/N 35-950005-3 |
Right Hand Manifold |
|
6 |
RJ3009-502 |
Right Hand Wastegate |
|
7 |
RJ3008-702 |
Right Hand Turbo Outlet |
|
8 |
N/A |
Right Hand Muffler ''Flame Cone Required'' |
|
9 |
N/A |
Right Tailpipe |
|
10 |
N/A |
Left Tailpipe |
|
11 |
RJ3011-1 |
LH Balance Tube 3/4'' Dia Male / Female 52 Degree's |
|
12 |
RJ3011-4 |
RH Balance Tube 3/4'' Diameter Male / Male 83 Degree's |
|
13* |
RJ4120-11 |
Wastegate Return Spring |
|
14* |
RJ0115 |
Turbine Inlet Gasket |
|
15* |
RJ0114 |
Turbine Outlet Gasket |
|
16* |
RJ0193 |
V-Band Coupling (Recommended Torque 45-50 Inch/Pound) |
|
17* |
186-50 |
Cabin Heat Shroud |
|
18* |
4-Hole Continental 628260 |
Exhaust Gasket (requires 3 per manifold |
