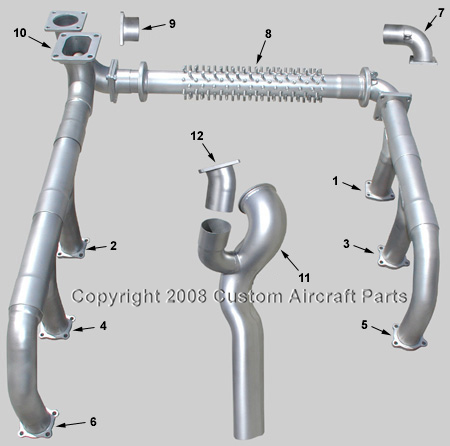

Item # |
Part # |
Description |
|
1 |
642670 |
Riser Cylinder #1 |
|
2 |
642671 |
Riser Cylinder #2 |
|
3 |
642672 |
Riser Cylinder #3 |
|
4 |
642671 |
Riser Cylinder #4 |
|
5 |
642673 |
Riser Cylinder #5 |
|
6 |
642674 |
Riser Cylinder #6 |
|
7 |
642666 |
Elbow |
|
8 |
642663 |
Heat Exchanger |
|
9 |
642891 |
Sleeve |
|
10 |
646795 |
Transition |
|
10 |
654340 |
Transition |
|
11 |
642392 |
Tailpipe |
|
11 |
655164 |
Tailpipe |
|
12 |
642665 |
Wastegate Outlet Elbow |
|
13* |
4-Hole Continental 628260 |
Exhaust Gasket |
*Items not shown
AD 89-24-03 Inspect Turbine inlet Assembly for cracks every 100 HRS time in service if cracks are found replace with P/N 646795
