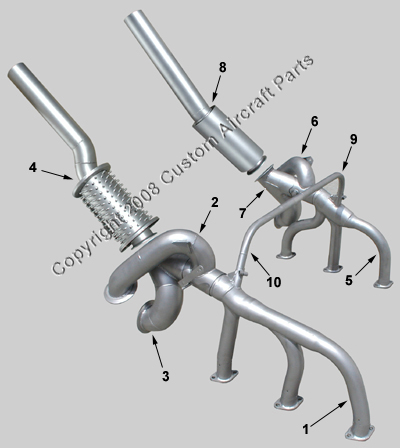

Item # |
Part # |
Description |
|
1 |
N/A |
Left Hand Manifold |
|
2 |
N/A |
Left Hand Wastegate |
|
3 |
N/A |
Left Hand Turbo Outlet |
|
4 |
N/A |
Left Hand Muffler / Tailpipe ''Flame Cone Required'' |
|
5 |
N/A |
Right Hand Manifold |
|
6 |
N/A |
Right Hand Wastegate |
|
7 |
N/A |
Right Hand Turbo Outlet |
|
8 |
N/A |
Right Hand Muffler / Tailpipe ''Flame Cone Required'' |
|
9 |
N/A |
Balance Tube 3/4'' Diameter |
|
10* |
RJ4120-11 |
Wastegate Return Spring |
|
11* |
RJ0115 |
Turbine Inlet Gasket |
|
12* |
RJ0114 |
Turbine Outlet Gasket |
|
13* |
RJ0193 |
V-Band Coupling (Recommended Torque 45-50 Inch Pounds) |
|
14* |
186-50 |
Cabin Heat Shroud |
|
15* |
2-Hole Continental 627429 |
Exhaust Gasket |
*Items not shown
